Form-Fill-Seal

  • Skimmed Milk powder packing machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems

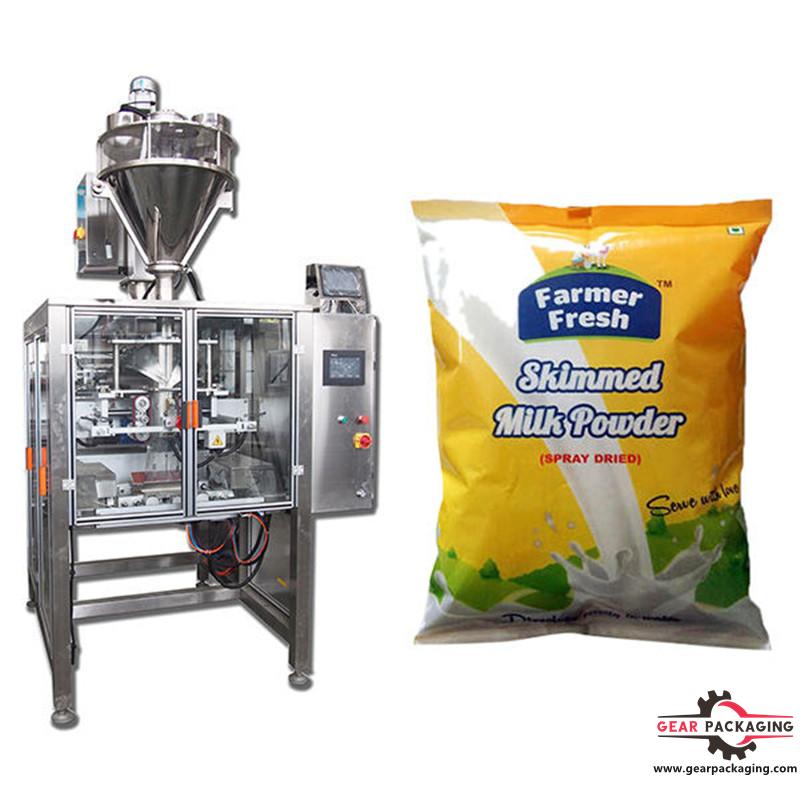

Skimmed Milk powder packing machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems

Skimmed Milk powder packing machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems

  • Model:GP-VF620
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension:2200×900×2400mm
  • Product description: Skimmed Milk powder packing machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems
  • INQUIRY

Description:

Skimmed Milk powder packing machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems


Applications


The machine is suitable for packaging powdery  product ,for instance ,milk powder ,monosodium glutamate ,solid beverage ,icing sugar ,dextrose ,feed ,coffee ,solid medicament ,powdery &grainy additive ,dye ,etc.

Features


1.More than 20 languages can be chose,parameter and function setting convenient with touch screen.

2.PLC intelligent control system,operation more steady without stopping machine.

3.Double frequency converter control, bag length can be set and cut at one step, saving time and film.

3. Self-diagnose function, all the fault will be display on the screen,easy to maintenance.

4. High sensitivity photoelectric eye color tracing, number input of bag size ,cutting position accurate.

5.Temperature independent PLC control, more suitable for packing different materials.

6. Positioned stop function, without sticking knife or wasting film.

7. Simple driving system, reliable working, convenient maintenance.

8. All control is realized through solfware, easy for function adjusting and technical updating.

Optional Device


Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.

Technical Specifications


Model GP-VF620
Metering mode Multi head scale
Bag Size L240/300/400mm-W180/220/250/290mm
Air consumption 6kg/cm2 2.5m3/min
Filling weight 200-500g 500-2000g
Packing accuracy Packing weight≤100g deviaiton≤±1g〉100g deviaiton≤±1%
Packing speed 25-60Bag / min
Sealing type Back seal
Voltage 380V/220V 50-60HZ
Power 4kw
Weight 650/750/800kg/900KG
Volume of the whole machine 2200×900×2400mm

Service


1) Warranty Time: one year.(Pay an attention: Warranty range don't include damageable parts like heating tube, thermocouple, temperature controller ,photocell and blade) show their photos
2) Quality condition to be responsible and period:
Warranty time: one year. If the machine was broken due to wrongly operating by users, we also provide service for repairing in warranty period. But the buyers need to supply plane ticket and food and accommodation for the technical staff economically and service fee as $100.00/day. We also can provide the new parts as users' requests.
3)installation & direction:
If the clients need our technical staff to install and test(adjust) machine to his company when all the machine equipments are gotten. My factory can do it. the clients need to pay for some expenses(plane ticket, accommodation fee as the clients' standard at the local) and also supply service fee for installing staff when they work in buyers’ company as $100.00/day
