Form-Fill-Seal

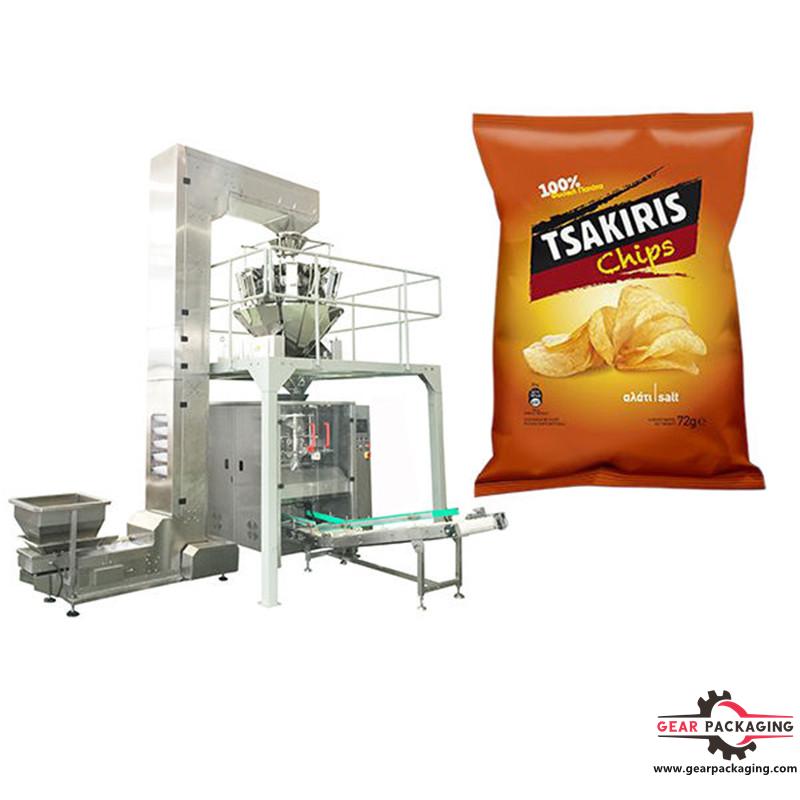

  • 72g potato chips snack packing machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems
72g potato chips snack packing machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems

72g potato chips snack packing machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems

  • Model:GP-P14L1.6
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension:1100(L)*1100(W)*1780(H) mm
  • Product description: 72g potato chips snack packing machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems
  • INQUIRY

Description:

72g potato chips snack packing machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems


Applications


It’s suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , Potato Chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .



Features


  • Famous Brands electrical parts, stable and functional.
  • Three servo motor for reciprocationg pull film system, can reach 180bpm.
  • Automatically film recitifying function, smart and convenient.
  • High speed packing,save labour, resoures and place.
  • Many kinds of languages can be chosen.



Optional Device


Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.



Technical Specifications


  • Bag Styles:Pillow Bag
  • Bag Width:100 to 250mm (3.9 to 9.8")
  • Bag Length:50 to 400mm (2.0 to 15.7")
  • Product Characteristic:Granules, Powders, Liquids, Pastes
  • Dosing System Compatible:Volumetric Cup , Piston Filler, Linear Scale , Multi-Head Scale, Auger Filler
  • Running Motion:Intermittent
  • Working Efficiency: 180 bags / min
  • Control By:PLC with HMI Touch Screen
  • Date Coding Can Be:Hot Stamping Coder, Thermal Transfer Coder, Label Applicator
  • Options Available:Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller, Heavy Bag, Heating & Mixing Hopper
  • Power & Voltage:5 KW
  • Compress Air:7MPa 0.4 M3/min
  • Dimensions:1600mm*1170mm*1610mm (63.0*46.1*63.4")
  • Machine Weight:950 KGS

14 head combination scale


Model GP-P14L1.6 GP-P14L2.5
Weighing Range 10~1500g 10~3000g
Weighing Accuracy ±0.1~1.5g ±0.1~2g
Max.Weighing Speed 70WPM 70WPM
Hopper Capacity 1.6L 2.5L
Operation Panel 7 Inch touch screen
Control system PLC
Power Supply AC220V±10% 50HZ/60HZ   1.5KW
Packing Dimension 1100(L)*1100(W)*1780(H) mm
Net Weight 288KGS
Packing Weight 400KGS
