Form-Fill-Seal

  • Puffed food shrimp packing machine V.F.F.S. Bagger Complete Systems

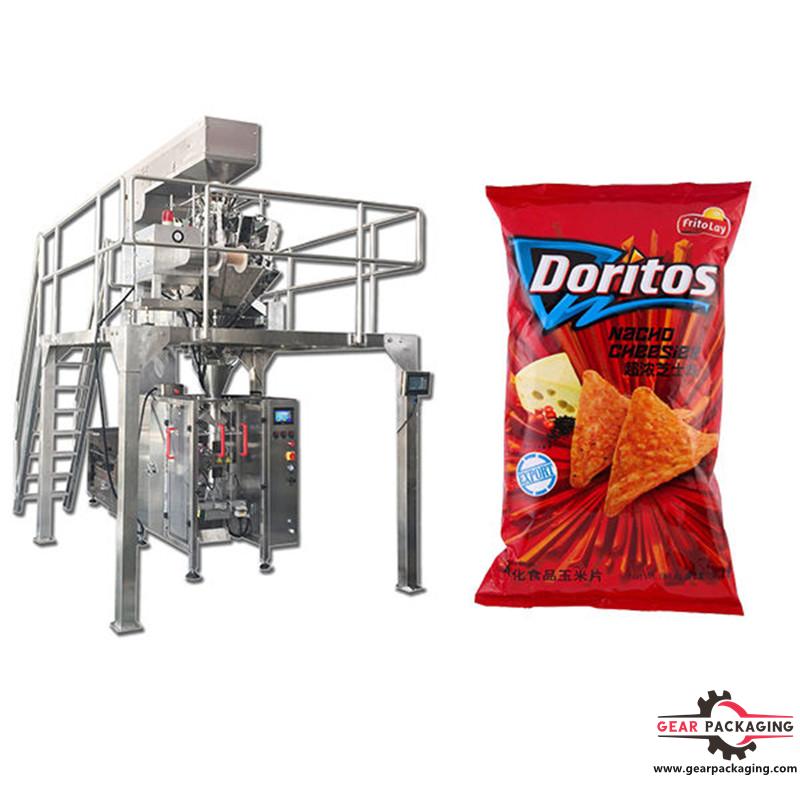

Puffed food shrimp packing machine V.F.F.S. Bagger Complete Systems

Puffed food shrimp packing machine V.F.F.S. Bagger Complete Systems

  • Model:GP-VF520
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension: 1430(L)×1200(W)×1700(H)
  • Product description: Puffed food shrimp packing machine V.F.F.S. Bagger Complete Systems
  • INQUIRY

Description:

Puffed food shrimp packing machine V.F.F.S. Bagger Complete Systems


Applications


It is suitable for candy, melon seeds, jelly, frozen products, seafood, frozen fish and shrimp, frozen french fries, potato chips, meatball, pet food, puffed food, pistachio nuts, barbary wolfberry fruit, peanuts, almonds, raisins, tablet, herb, tea leaf, sugar, salt, rice, fruit, salad, screw, iron nail, powder, sheet, strip, round and irregular shape materials etc.



Features


1.Adopting PLC from Japan or Germany to make machine run stable. Touch screen from TaiWan to make operation easy.
2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.
3. Single-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
4. Perfect alarm system to make problem solved quickly.
5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.
6. Machine can make pillow bag and standing bag (gusseted bag) according to customer’s requirements. Machine also can make bag with punching hole & linked bag from 5-12bags and so on.
7. Working with weighing or filling machines such as multihead weigher, volumetric cup filler, auger filler or feeding conveyor, process of weighing, bag making, filling, date printing, charging (exhausting), sealing, counting and delivering finished product can be completed automatically.



Optional Device


Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.



Technical Specifications


model GP-VF520
packing speed 10-70 bag/min
bag size(mm)  (W) 80-250 (L) 80-350
bag making code Pillow bag, standing bag (gusseted),

punch, Linked bag

range of measuring(g) 2000
it is suitable for packing grain stick
packing material laminated film such as POOP/CPP,POPP/VMCPP,BOPP/ PE,PET/AL/PE,NY/PE,PET/PET
power parammeter 220V 50/60Hz 3KW
package volume 1430(L)×1200(W)×1700(H)
gross weight 650kg
