Form-Fill-Seal

  • salt vertical form fill seal machine with volumetric cup
salt vertical form fill seal machine with volumetric cup

salt vertical form fill seal machine with volumetric cup

  • Model:GP-VF620S
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension:L1320*W950*H2550 (mm)
  • Product description: salt vertical form fill seal machine with volumetric cup
  • INQUIRY

Description:

salt vertical form fill seal machine with volumetric cup


Applications


It is suitable for weighing packing dry food with irregular shapes and requiring high measuring accuracy,
such as: rice , seeds ,  bean,  grain , pet food , salt ,  nut , etc non-fragile and granular pdoducts.

Features


  • High-speed capabilities up to 80 packs per min
  • Adjustable capacity from 50-250ml; 250-500ml, 500-1000ml is optional
  • Accuracy 0.2 to 2g
  • Omron controls as standard
  • User-friendly interface
  • Film track by photo-electric eye & encoder
  • Servo driven for film transport
  • Stainless steel systems
  • Small footprint, Compact, robust and long-life construction
  • Customized to meet your production, package style and econoic requirements

Optional Device


Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.


Technical Specifications


Item Salt packing machine
Model GP-VF620S
Filling measuring cups
Bag style Back sealed bag,pillow bag
Volume/bag 1000-5000g
Bag size L80-450mm, W100-300mm
Packing speed 5-60 bags/min
Control system PLC+ touch screen
material stainless steel
Pneumatic 0.65Mpa,0.3cbm/min
voltage AC 220V
Weight G.W. 800kg
Dimension L1320*W950*H2550 (mm)
Power 2.5KW
Film material Paper/polyethylene; cellophane/polyethylene;

Plated aluminum/polyethylene; BOPP/polyethylene; nylon/polyethylene

supplies different grains or granules, such as sugar, salt, desiccant, coffee, washing powder, glucose, seeds, seasoning, pepper, beans, etc.
Main functions Automatically measure, make bags, fill, seal, cut and print codes.

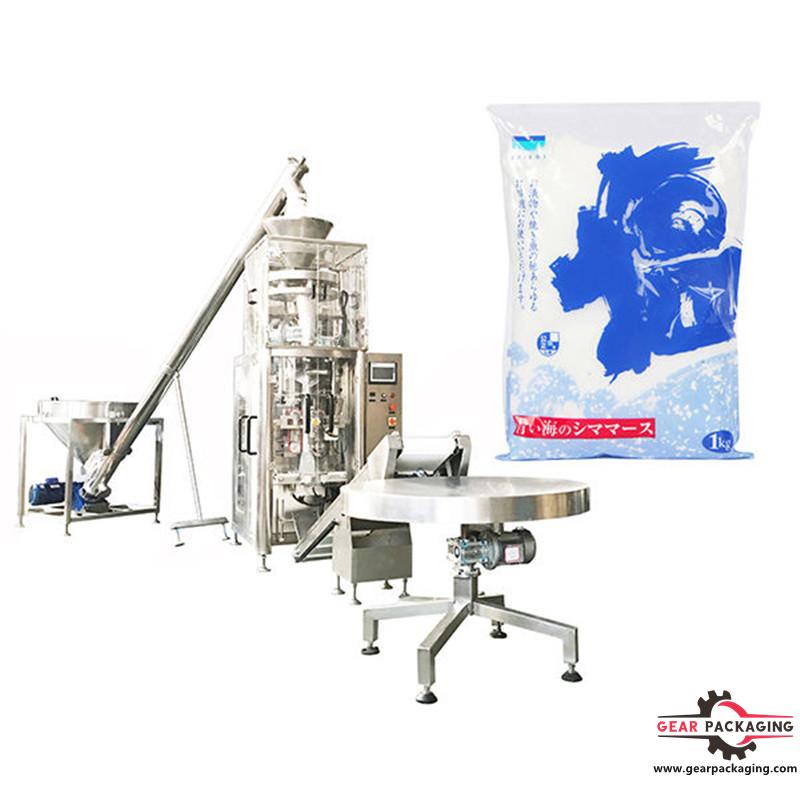

Main Parts:


1. Z shape material elevator

2. Vertical granule packing machine

3. supplies feeding euipment with volume cups

4. prodocuts conveyor

5. rotating products handling tray

Working Process:


1. Z shape elevator send material to the top of material measuring equipments with volume cups
2. vertical packing machine automatically finish making bags, filling, sealing, cuting, printing codes.
3. Finished products will be conveyed to the rotating tray for handling.
