Form-Fill-Seal

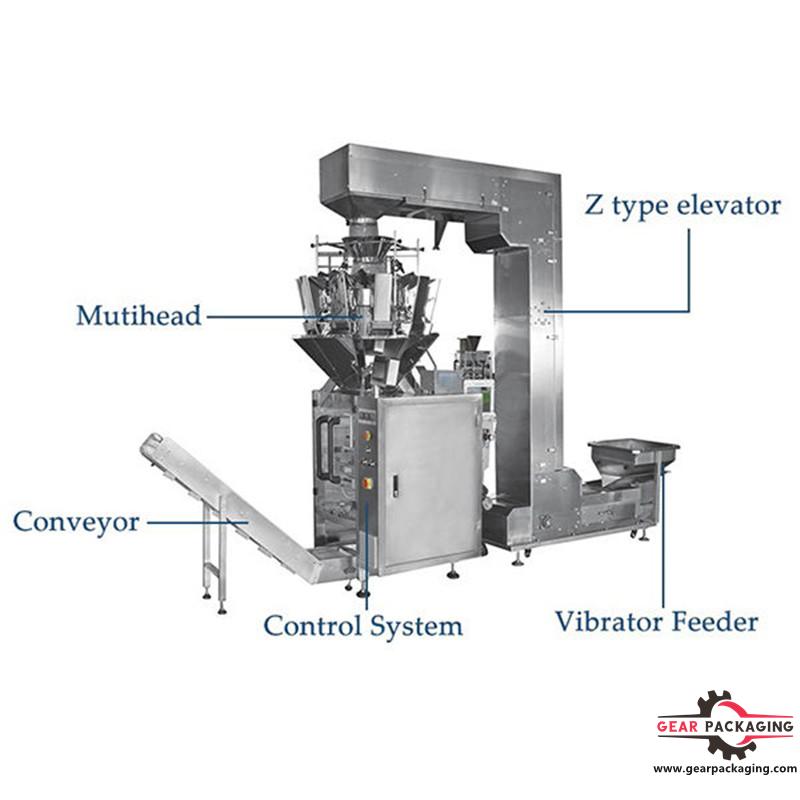

  • Vertical Packaging Machine V.F.F.S. Bagger Complete Systems vertical form fill seal vertical packing machine with multihead scales
Vertical Packaging Machine V.F.F.S. Bagger Complete Systems vertical form fill seal vertical packing machine with multihead scales

Vertical Packaging Machine V.F.F.S. Bagger Complete Systems vertical form fill seal vertical packing machine with multihead scales

  • Model:GP-VF420
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension:1550(L)×1150(W)×1750(H)
  • Product description: Vertical Packaging Machine V.F.F.S. Bagger Complete Systems vertical form fill seal vertical packing machine with multihead scales
  • INQUIRY

Description:

Vertical Packaging Machine V.F.F.S. Bagger Complete Systems vertical form fill seal vertical packing machine with multihead scales


Application


It is suitable for packing grain, stick, slice, globose, irregular shape products such as puffy food, snacks, candy, chocolate, nuts, pistachio, pasta, coffee bean, sugar, chips, cereals, pet food, fruits, roasted seeds, frozen food, small hardware, etc.

Main Features


  1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
  2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.
  3. Double-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
  4. Perfect alarm system to make problem solved quickly.
  5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.
  6. Machine can make pillow bag and standing bag (gusseted bag) according to customer’s requirements. Machine also can make bag with punching hole & linked bag from 5-12bags and so on.
  7. Working with weighing or filling machines such as multihead weigher, volumetric cup filler, auger filler or feeding conveyor, process of weighing, bag making, filling, date printing, charging (exhausting), sealing, counting and delivering finished product can be completed automatically.

Specification


Specification for ZVF-420 vertical packing machine
Model GP-VF420
Packing Speed 5-70Bags/Min
Bag Size W:60-200mm L:60-300mm
Pouch Material POPP/CPP,POPP/VMCPP,BOPP/PE,NY/PE,PET/PET
Type of Bag Making Pillow bag,Gusset bag,Punching bag,Connecting bag
Max Film Width 420mm
Film thickness Width 0.04-0.09mm
Air Consumption 0.5m3/min,0.8Mpa
Power Parameter 220V/2000W/ 50/60HZ
Package Size (mm) 1550(L)×1150(W)×1750(H)
Total Weight(Kg) 450

The 14 heads weigher


Weigh range 10-500g
Accuracy 0.5-1.5g
Max speed 90wpm
Weigh volume 1.6L

Hopper No.

14
Control panel 10inch touch screen
Driving Device Stepper motor
Power supply AC 110/220±5V, 50/60 Hz
Power 1 .3KW
Size 1246×1238×1388(mm)
Weight

400kg
