Form-Fill-Seal

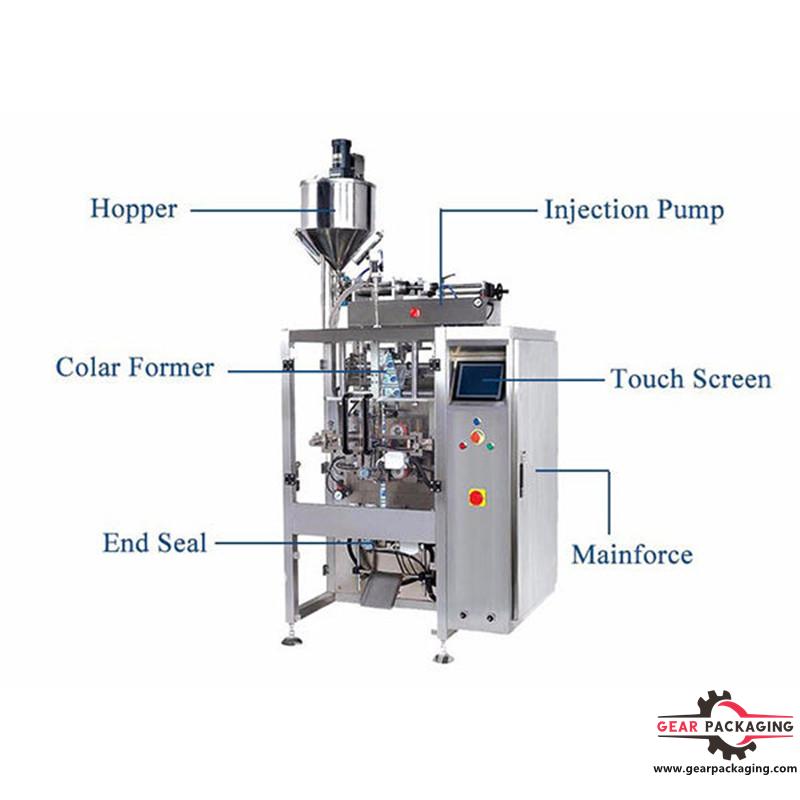

  • Liquid vertical form fill seal machine with pistion filler Vertical Packaging Machine V.F.F.S. Bagger Complete Systems
Liquid vertical form fill seal machine with pistion filler Vertical Packaging Machine V.F.F.S. Bagger Complete Systems

Liquid vertical form fill seal machine with pistion filler Vertical Packaging Machine V.F.F.S. Bagger Complete Systems

  • Model:GP-VF420
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension: (L)1217*(W)1015*(H)1343mm
  • Product description: Liquid vertical form fill seal machine with pistion filler Vertical Packaging Machine V.F.F.S. Bagger Complete Systems
  • INQUIRY

Description:

Liquid vertical form fill seal machine with pistion filler Vertical Packaging Machine V.F.F.S. Bagger Complete Systems


Applications


For Liquid & Semi-dense, such as Water, Juice, Milk, Purees, Sauces, Wax, Gels, Ointments.

Integrated packaging system, including Liquid filler system, automatic bag making machine, and elevating roto pump, heating & mixer hopper is optional.

Features


  1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
  2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.
  3. Double-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
  4. Perfect alarm system to make problem solved quickly.
  5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.
  6. Machine can make pillow bag and standing bag (gusseted bag) according to customer’s requirements. Machine also can make bag with punching hole & linked bag from 5-12bags and so on.
  7. Working with weighing or filling machines such as multihead weigher, volumetric cup filler, auger filler or feeding conveyor, process of weighing, bag making, filling, date printing, charging (exhausting), sealing, counting and delivering finished product can be completed automatically.


Optional Device


Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.


Technical Specifications


Main Machine Specification
Type GP-VF420 GP-VF520 GP-VF720
Film Width Max.420mm Max.520mm Max.720mm
Bag Lenth 80-300mm 80-350mm 180-350mm
Bag Width 60-200mm 100-250mm 100-500mm
Film Roll diameter Max.320mm Max.320mm Max.320mm
Packaging Rate 5-60bags/min 5-60bags/min 5-55bags/min
Measurement Range 150-1500ml 2000ml 4000ml
Film Thickness 0.04-0.08mm 0.04-0.12mm 0.04-0.12mm
Power 220V 50/60Hz 2KW 220V 50/60Hz 3KW 220V/3KW
Machine Size (L)1217*(W)1015*(H)1343mm (L)1488*(W)1080*(H)1490mm (L)1780*(W)1350*(H)2050mm
Machine Quality About 650KG About 680KG About 750KG
