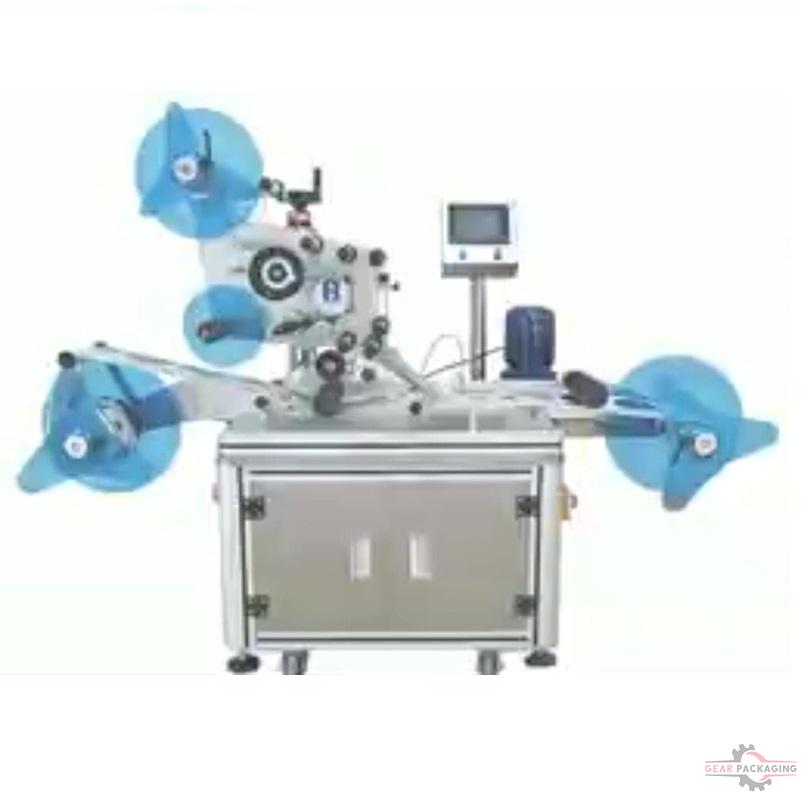

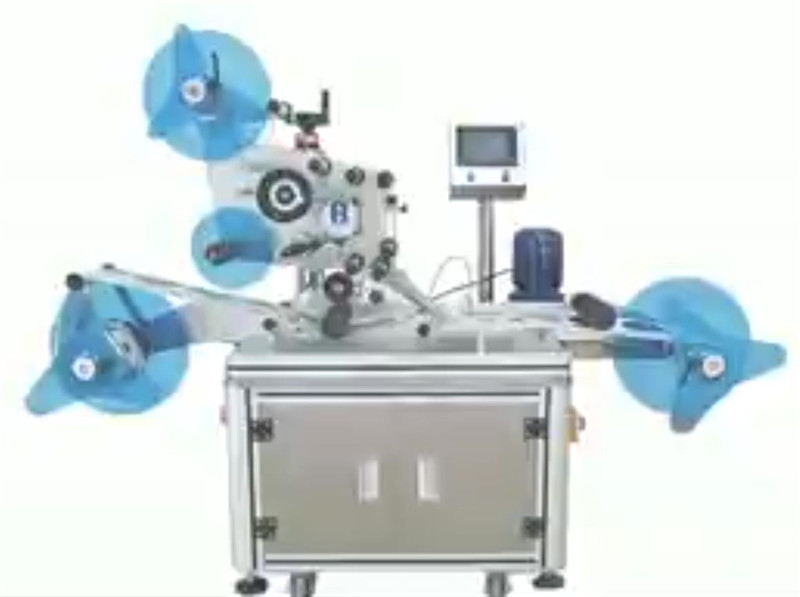

Labeling machine

newspaper plastic film roll flat surface labeling sticking machine picture labeling applicator

Model:GP-T1100
Type:Labeling Machinery
Packaging Type:Film rolls
Dimension ：(L×W×H)1550mm×720mm×1350mm
Product description: newspaper plastic film roll flat surface labeling sticking machine picture labeling applicator
INQUIRY

Description:

Basic using of labeling machine:

Suitable for labeling on blank film or for covering bottom label, Example for electronic trade marker(bottom label is electronic component, surface label is film ect. Widely used on products in lines of electronic and cultural education)

Configuration specification of labeling machine

Electrical equipment	Quty.	Type	Electrical equipment	Quty.	Type
Label electric eye	1set	Leuze/DataSensor	Rewind motor frequency transformer	1set	TECO
PLC	1set	Panasonic	EUT electric eye	1set	Panasonic/Riko
Rewind motor	1set	Wanshsin/OPG/JSCC	screen	1set	Kunlun tongtai
Labeling speed	40~300pcs/min
Labeling accurate	±1mm
Product scope	Outter diameter Filmφ under 300mm';Inner diameterφ76mm Width 20mm~200mm
Label scope	Width20mm~150mm,Length(wind label direction)6mm~100mm
voltage	220V
Equipment measurement	(L×W×H)1550mm×720mm×1350mm
Conveyor height from ground	800mm(Customize)

Product Feature of labeling machine:

1.More wide using, can plane label at film for products width 20mm~200mm, can label for uneven surface’s product while change the label covering machine.

2.High labeling accurate, with Stepper motor or Servo motor driving for label, More accurate; organization of label’s road can avoid deflecting of it; Eccentric gear technology be used by Traction organization, ensure the label will not slip, and go forward accurate.

3.Sturdy and durable, adopt 3 poles adjustable organization, To sure the equipment more durable and sturdy.

4.High stability,Panasonic PLC + KUNLUN TONGTAI Screen + Panasonic needle electronic eye + Leuze label testing electronic eye as the high grade electronic control, support equipment working at 7*24hours;

5. Easy debuggin, design adjust seat with 6 degree of freedom, can be change for different products, easy operate, saving time.

6.Intelligent control,Automatic photoelectric tracing, no label for when product didn’t come, automatic correct, automatic testing, can avoid leaking and wasting.

7.HMI operation,full explain and damage remind function in Chines, every indication adjusted easy and fast, operation convenient.

8.Stronger function, with counting, power saving,designing and reminding the number of production, remember data for convenient manufacture.

9.Select function and apart:

hot coder/ink-jet coder

add label device;

other function(customized)

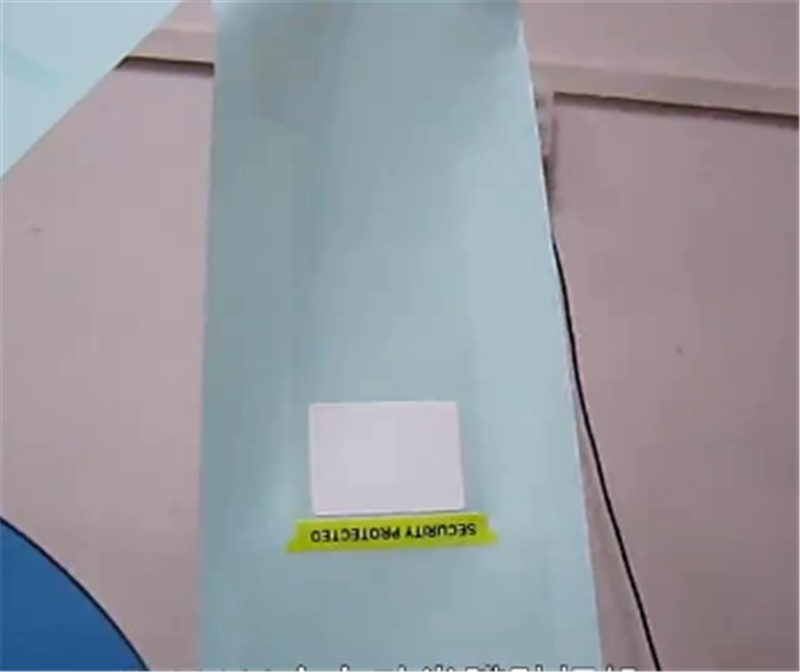

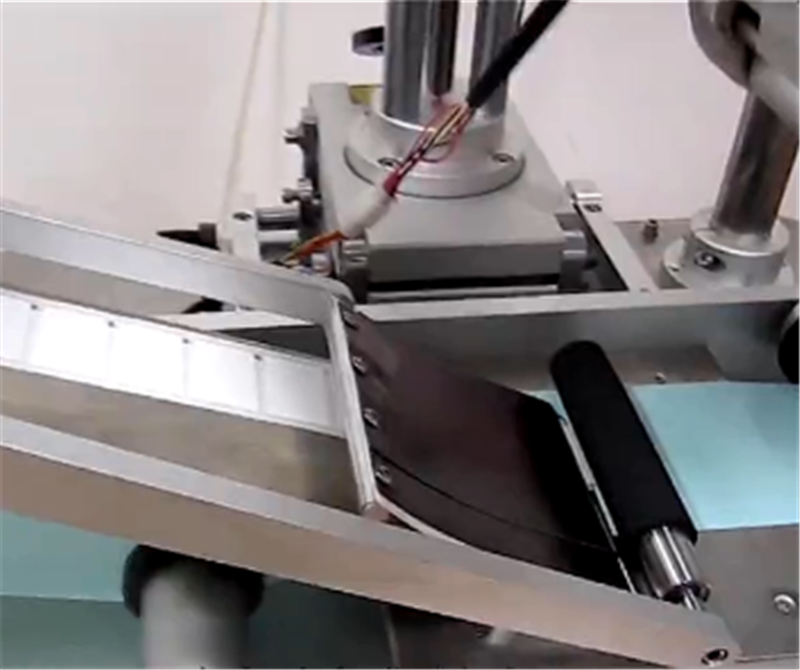

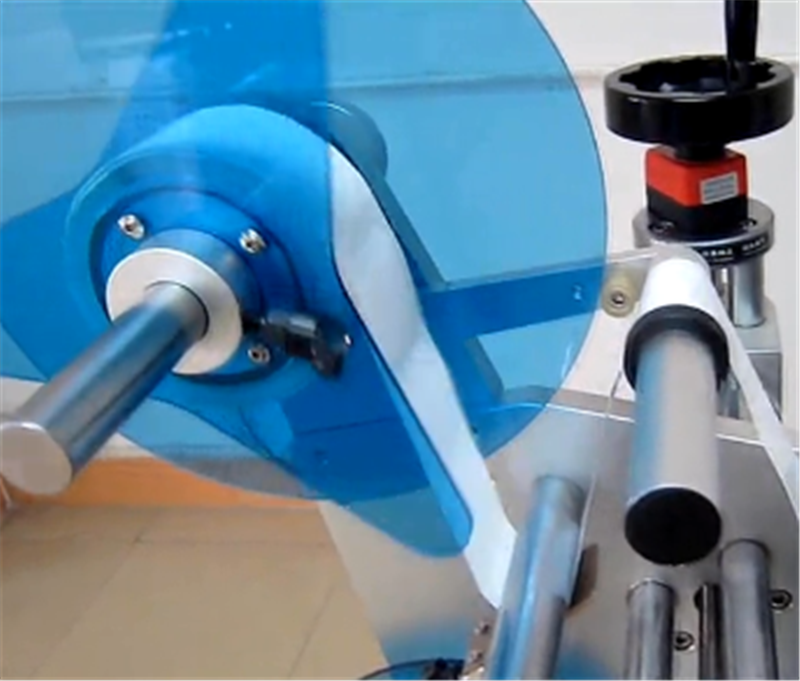

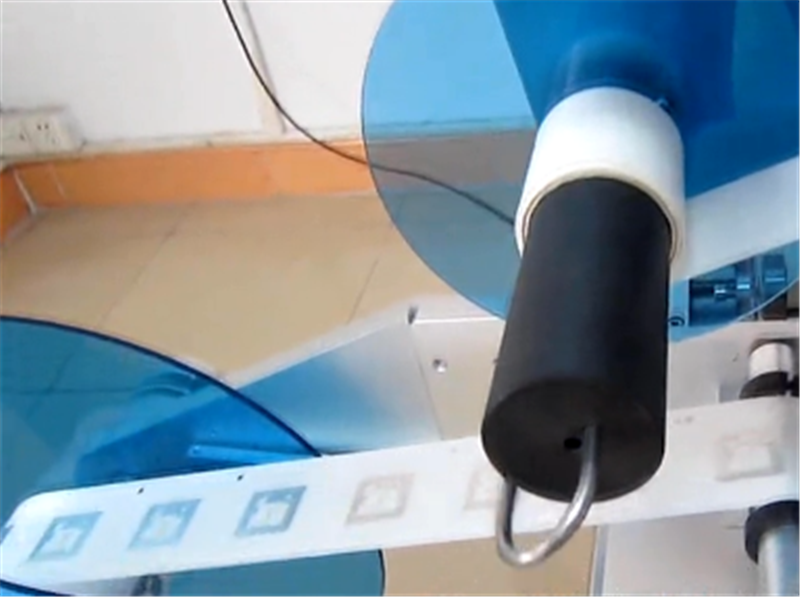

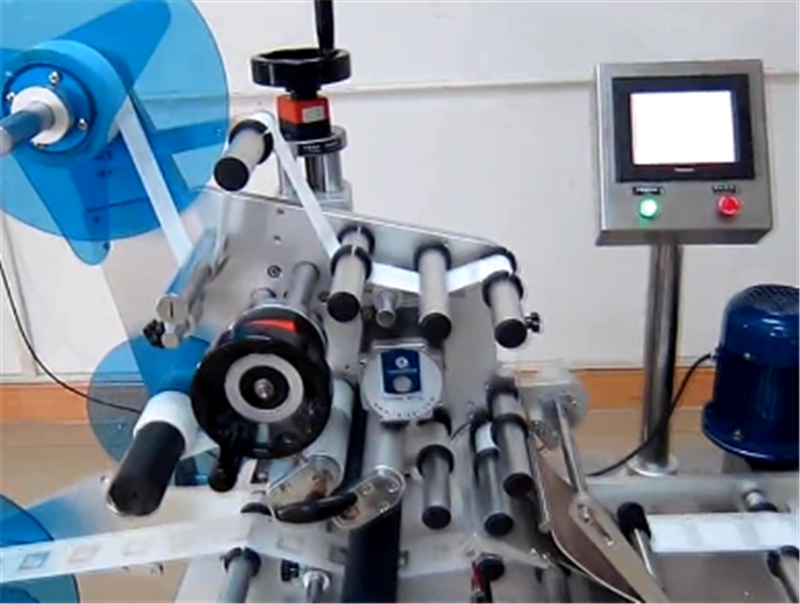

Machine detial pictures:
