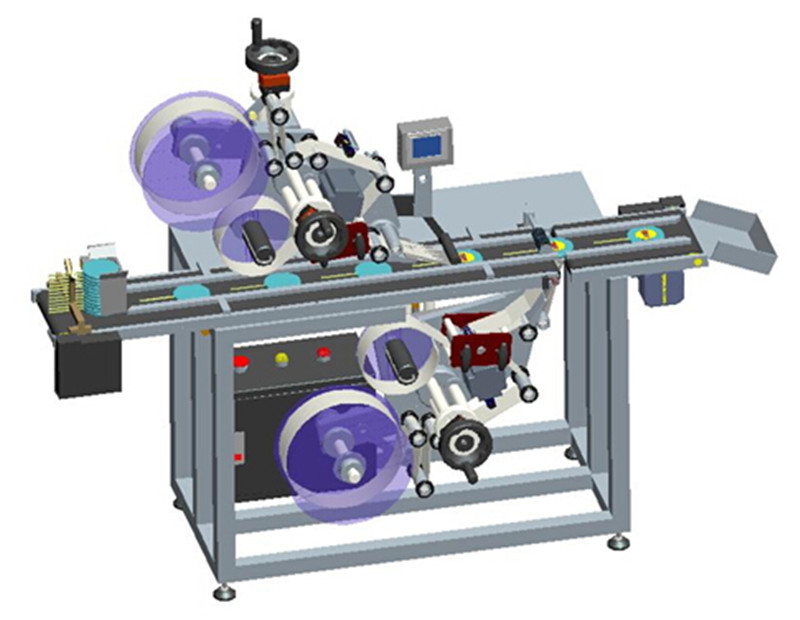

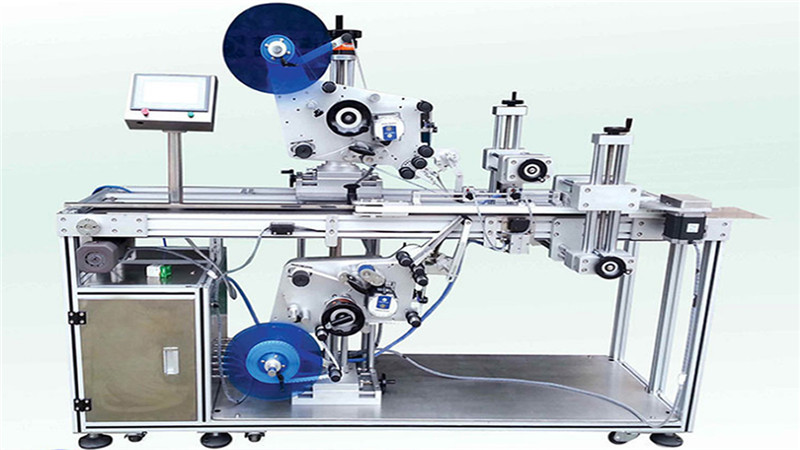

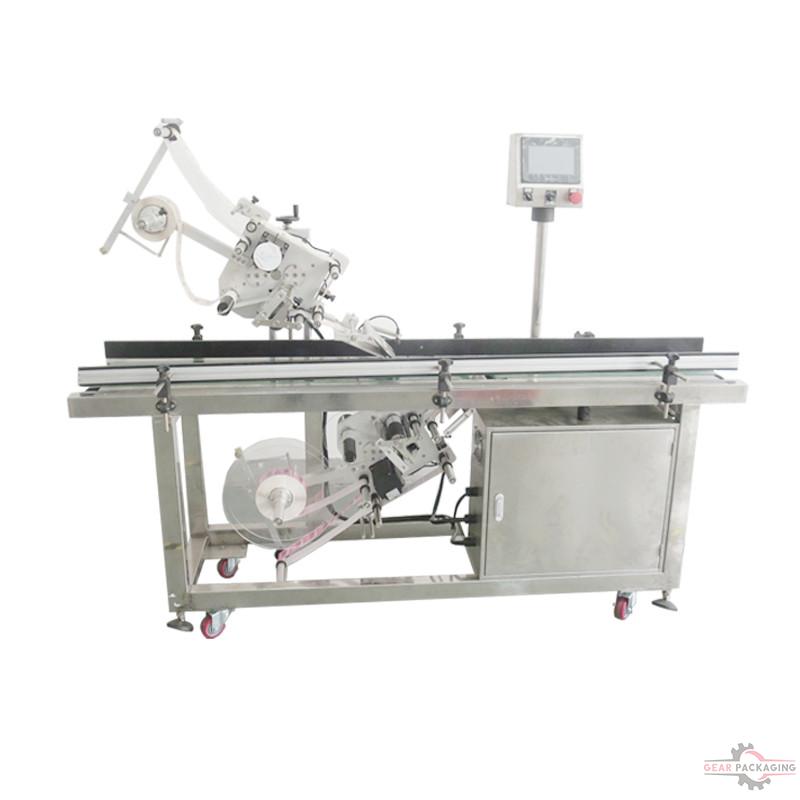

Auto top bottom labeling machine two side up down flat labeling equipment card paper box automatic labeller system

Description:

Automatic Top and Bottom Labeler is suitable for various flat products top and bottom surface labeling such as plastic boxes, DDR, note book, aluminum foil bags, etc. It can be connected with production line to elevate production.

Parameter：
Voltage AC220V50/60HZ
Power 500W

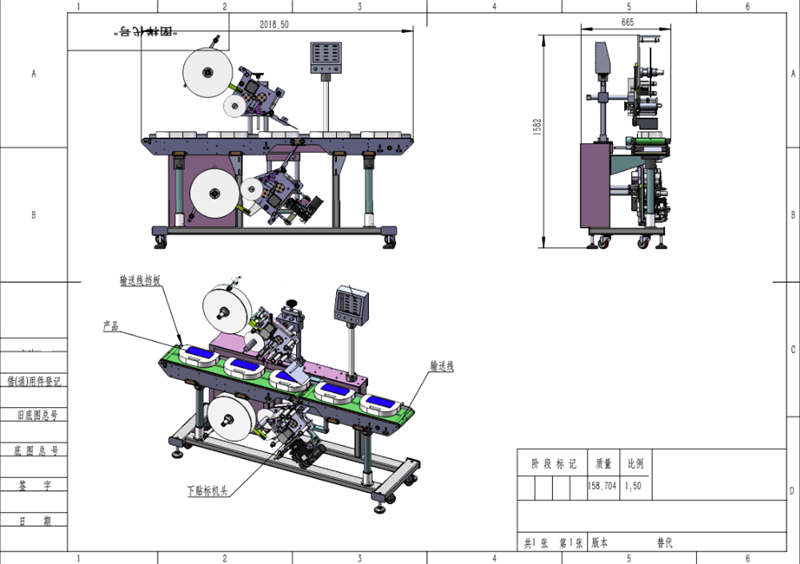

Size appearance 1800(L) 700(W) 1800(H) mm
Labeling Speed 200pcs/ min
Labeling accuracy ±1 mm (subject to the roughness of the plant)
Printer to use air 5 kg / cm2
Suitable height of objects 1-100 mm (which can be adjusted by your requirements)
Suitable wide of objects 10-80 mm (which can be adjusted by your requirements)

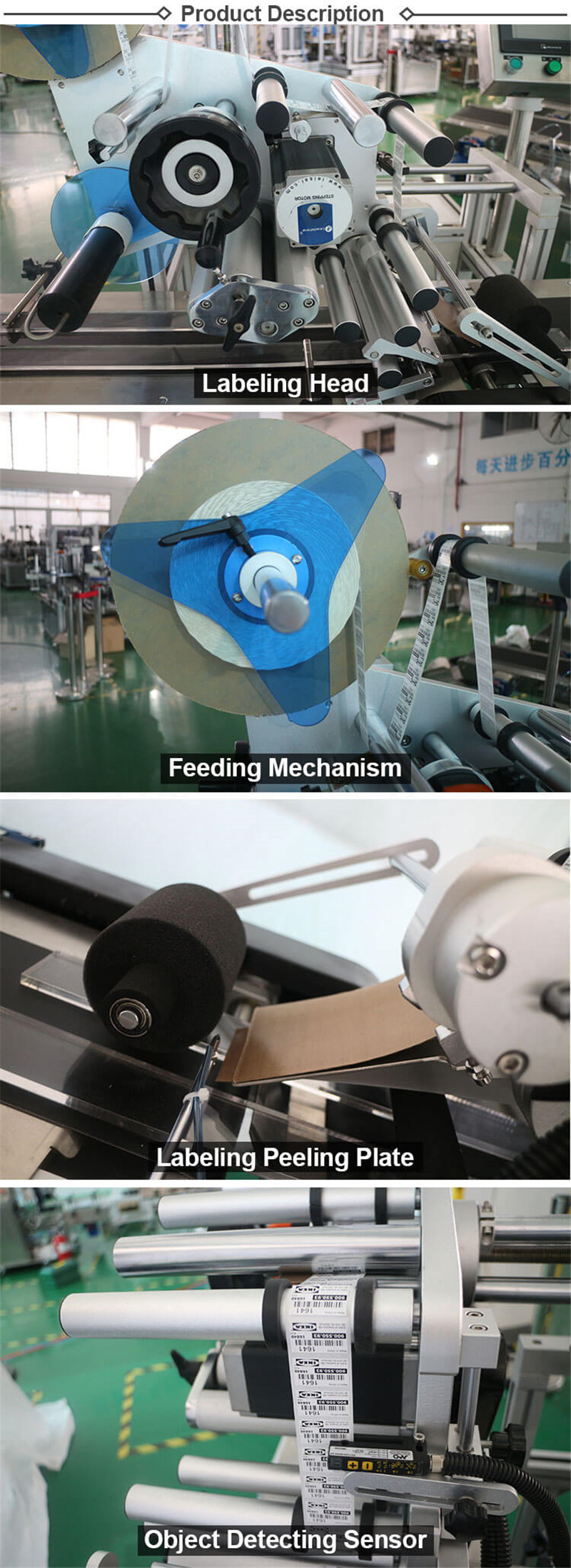

Main Features

1) Side labeling or top labeling is available.

2) Equipped with bracket.

3) Sensor detection system, no bottle no labeling.

4) Optic fiber amplifier detection system ensures precise label length.

5) Controlled by microprocessor system with LED screen, easy to operate.

6) Made of stainless steel and high quality aluminum alloy.

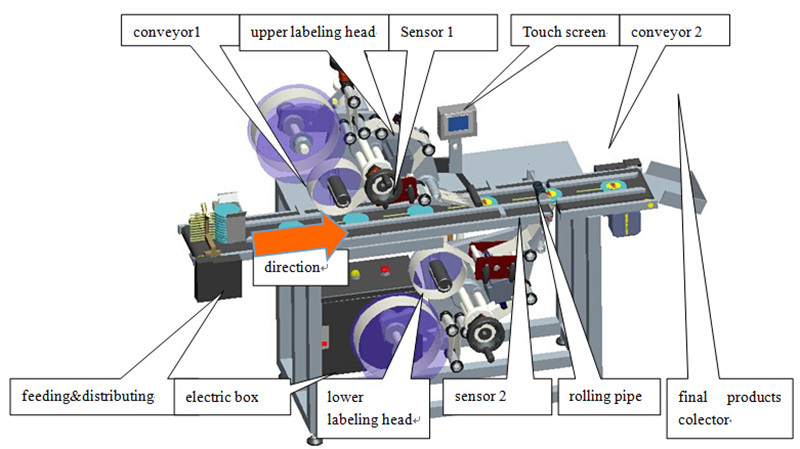

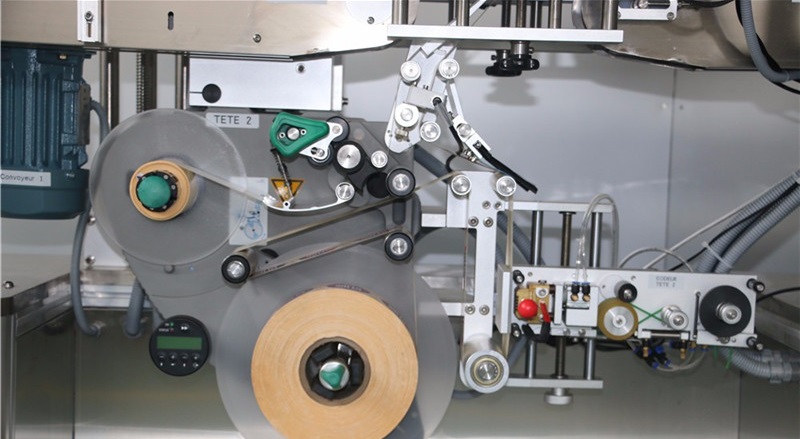

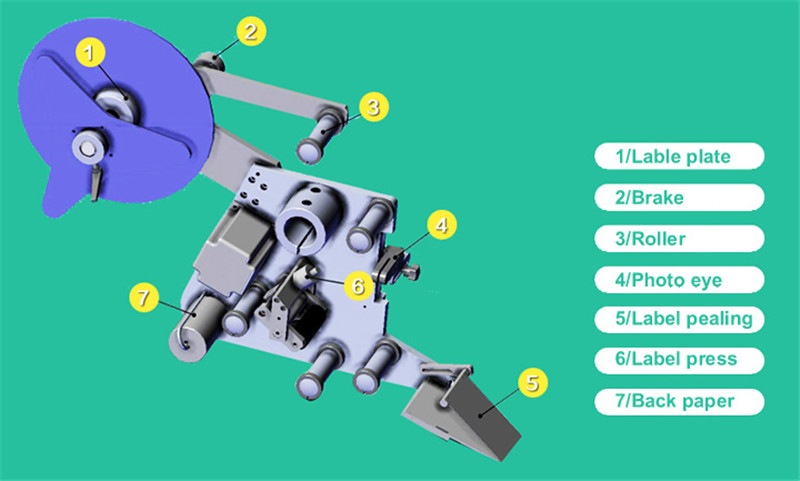

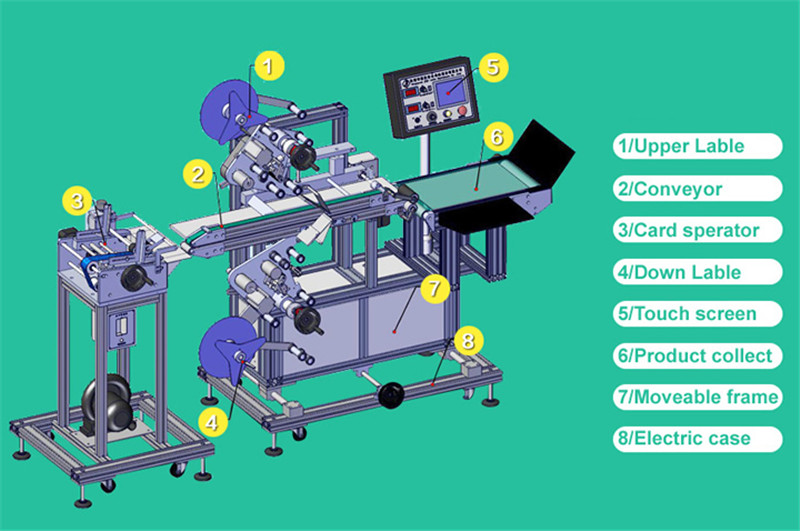

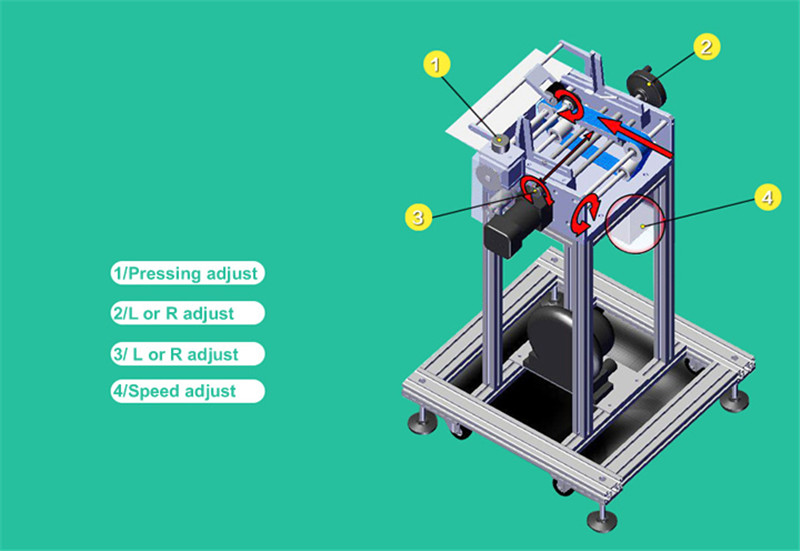

The mechanism and process:
The bottle separated by separate bottle device transported to the conveyor，move stably through the press bottle device;
When the sensor test the bottle, send signal to PLC;
The PLC received the signal and send to step motor .
The servo motor driving the outing label motor to send label.
The bottle transported to the brush label device, fix the label on the bottle more smooth,then to the next process.

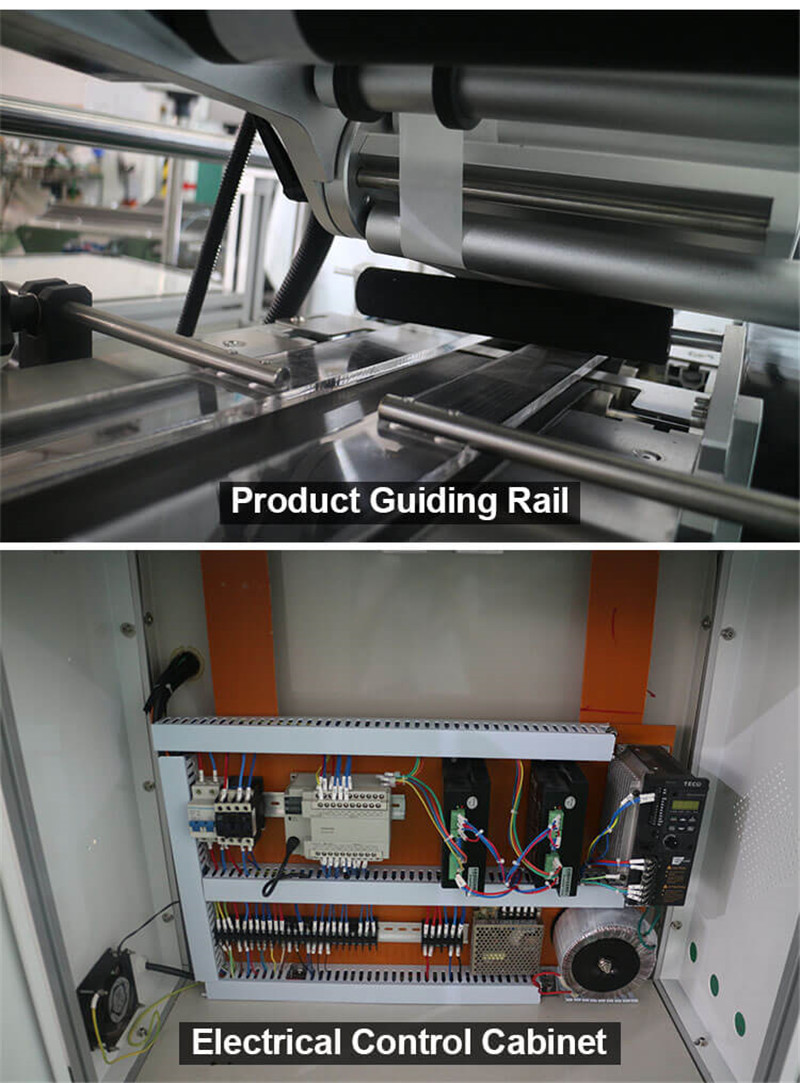

Device Characteristics

1. The whole machine is made of SUS304 stainless steel and the anode handling superior aluminum.

2. Machine-wide adoption of a mature technology PLC control system, to the whole stable and high speed

3. Operating system using touch-screen control, simple, practical and efficient.

4. It has pneumatic coder system with high technology, printing quickly, stably and with clear writing.

5. The large scope of application, the flat labeling of objects in various shape

6. Roller bottles attached to the input, so that labels attached to a more solid.

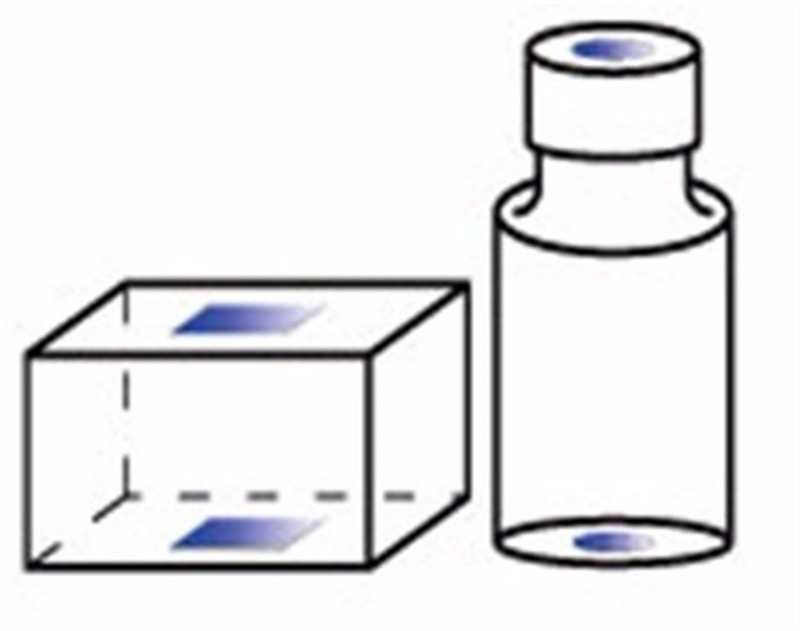

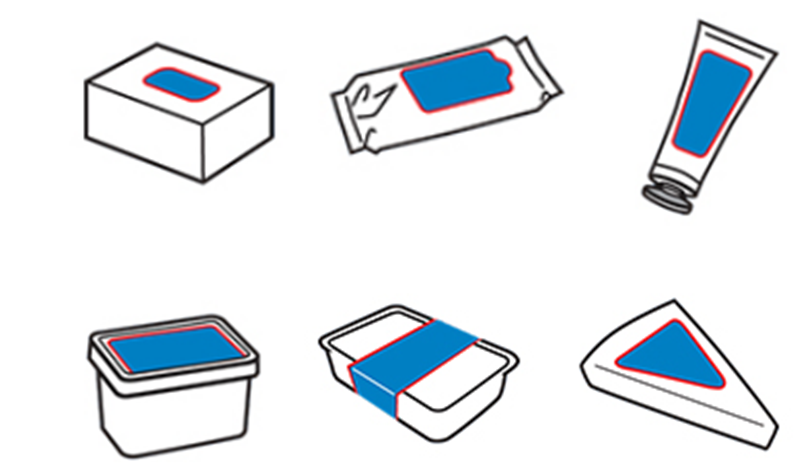

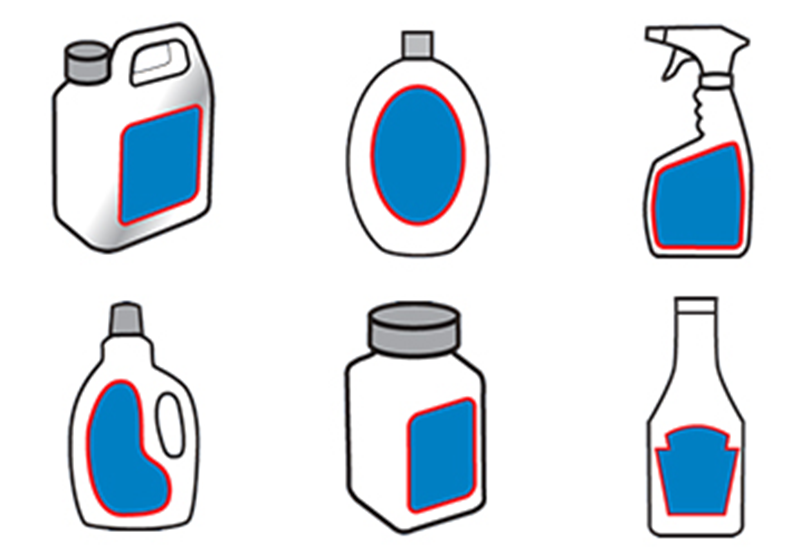

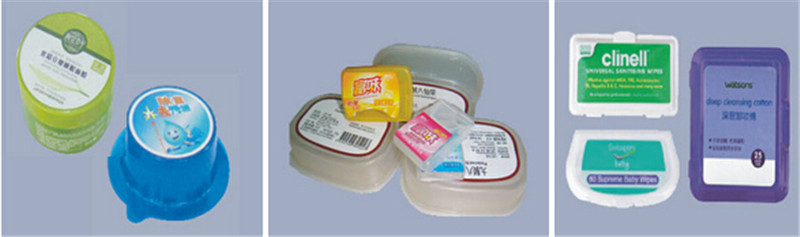

Application products:

Customized card labeling machine double sides up down labeling machine according to customer's requirements:

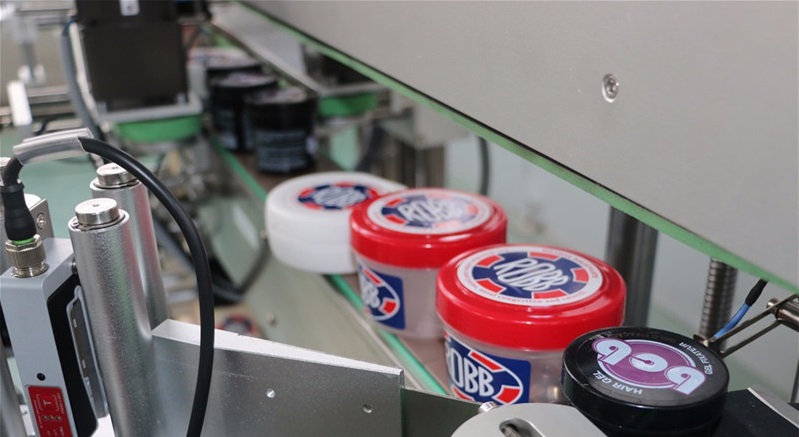

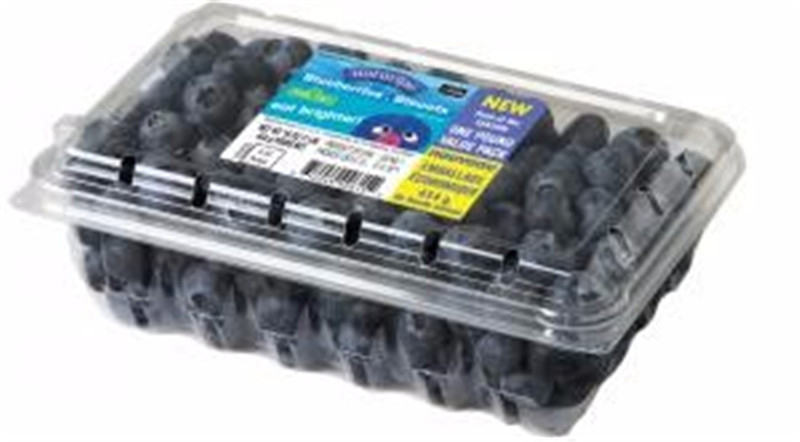

Final products after labeling machine:

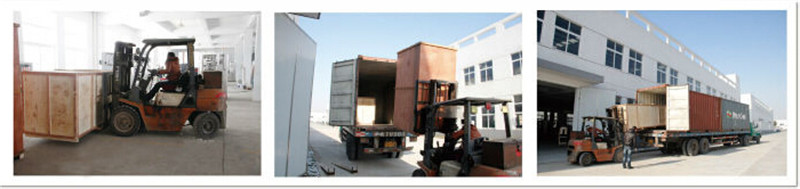

Wooden case packaging and delivery:

Guarantee: for all the machine, it claims three years for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training.

After sales service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
