Form-Fill-Seal

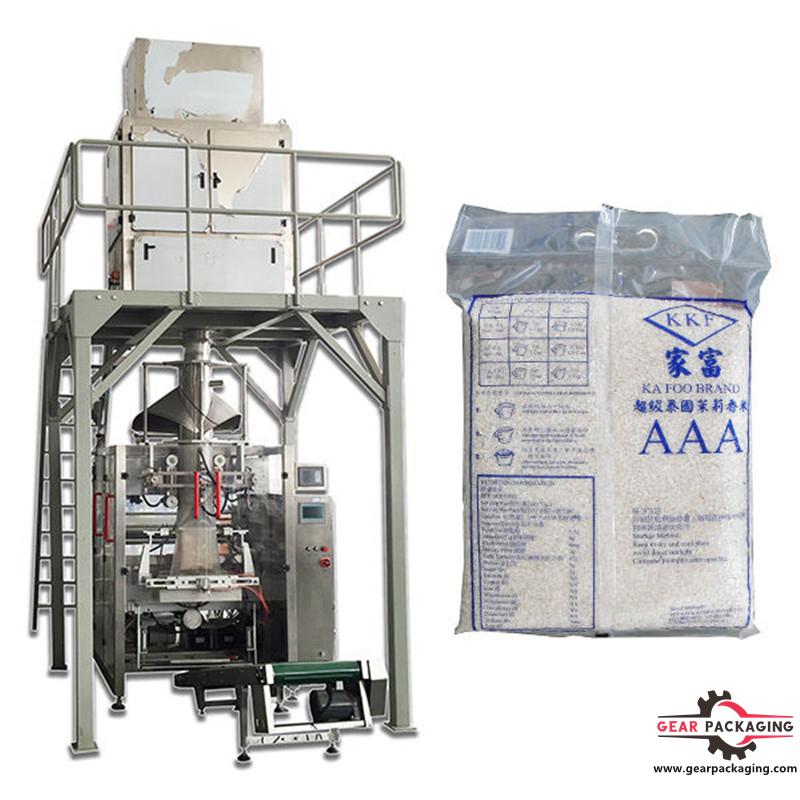

  • fully automatic granule particle food rice packing V.F.F.S. Bagger Complete Systems
fully automatic granule particle food rice packing V.F.F.S. Bagger Complete Systems

fully automatic granule particle food rice packing V.F.F.S. Bagger Complete Systems

  • GP-FP420(upgrade)
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension:(L)1217*(W)1015*(H)1343mm
  • Product description: fully automatic granule particle food rice packing V.F.F.S. Bagger Complete Systems
  • INQUIRY

Description:

fully automatic granule particle food rice packing V.F.F.S. Bagger Complete Systems


Applications


It is suitable for weighing grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food, frozen food, small hardware, etc


Features


  • Full automation from bag making, measuring, filling, sealing, counting and date printing.
  • Computer control and English-Chinese touch screen for easy operation without stopping the unit.
  • Intelligent PID temperature controller for easy adjustment and good application to various laminated film and paper.
  • Packaging diversification, such as back-seal bag, side gusseted bag, linked bag, hole punched bag etc.
  • Multi-heads weigher filling system for filling accuracy and good application to various kinds of products.
  • Weighing accuracy 0.4 to 1.0 gram.


Optional Device


Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.


Technical Specifications


Type GP-FP420(upgrade) GP-FP520(upgrade) GP-FP720(upgrade)
Film Width Max.420mm Max.520mm Max.720mm
Bag Lenth 80-300mm 80-350mm 180-350mm
Bag Width 60-200mm 100-250mm 100-500mm
Film Roll diameter Max.320mm Max.320mm Max.320mm
Packaging Rate 5-60bags/min 5-60bags/min 5-55bags/min
Measurement Range 150-1500ml 2000ml 4000ml
Film Thickness 0.04-0.08mm 0.04-0.12mm 0.04-0.12mm
Power 220V 50/60Hz 2KW 220V 50/60Hz 3KW 220V/3KW
Machine Size (L)1217*(W)1015*(H)1343mm (L)1488*(W)1080*(H)1490mm (L)1780*(W)1350*(H)2050mm
Machine Quality About 650KG About 680KG About 750KG
Optional device Date coder, Hole punching device (Pinhole,Round hole, The butterfly hole), Linking bag control device, Air-filling device, Air exhaust device. Tear notch device, Nitrogen inflation device, Gusset bag
