Form-Fill-Seal

  • Multi-lanes automatic sauce sachet liquid packing machine Sachet Packaging Machine
Multi-lanes automatic sauce sachet liquid packing machine Sachet Packaging Machine

Multi-lanes automatic sauce sachet liquid packing machine Sachet Packaging Machine

  • Model:GP-T480Y
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension:1385*918*2005mm
  • Product description: Multi-lanes automatic sauce sachet liquid packing machine Sachet Packaging Machine
  • INQUIRY

Description:

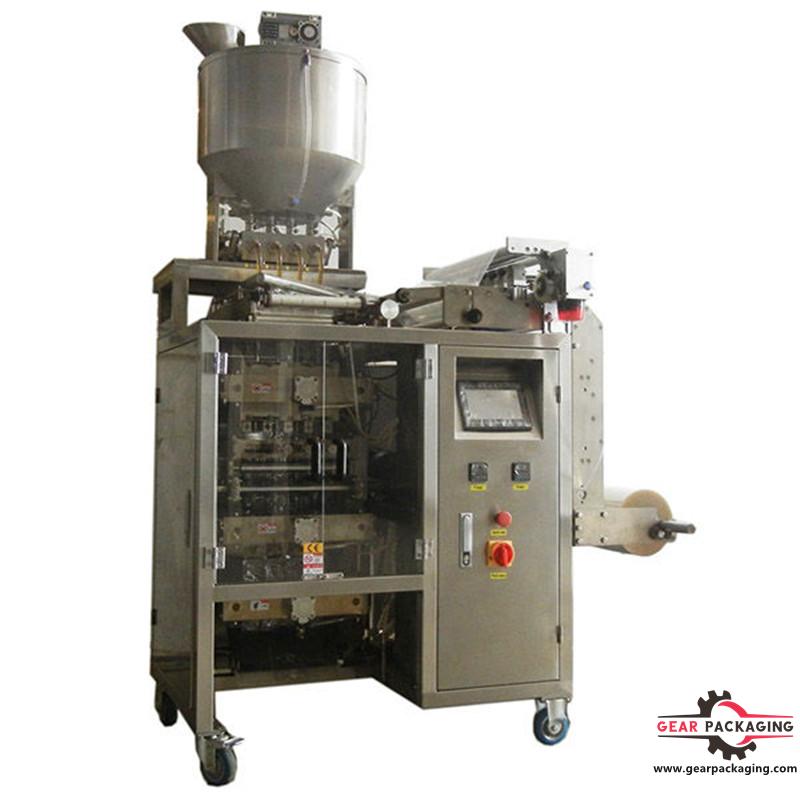

Multi-lanes automatic sauce sachet liquid packing machine Sachet Packaging Machine


Product description


Automatically measuring volume, making bags, filling, sealing, cutting, printing the lot number and cutting easy tearing notches,finished product conveying.Applicable for the liquid product.



Features


(1).Famous brand PLC control system,large touch screen,convenient to operate;

(2).Famous brand Servo motor for pulling film,more precision for bag length

(3).Advanced design,high precision and fast speed;

(4).No film alarm,saving materials and no wasting film;

(5).Photoelectric tracking system for precise bag length and position of film.

(6).Equip with peristaltic pump, easy clean and main and easy to adjust the volume



Specification


Model GP-T480Y GP-T720Y GP-T960Y
Lanes number 2-6 lanes 3-10 lanes 4-12 lanes
Capacity 35 bags/min/lane
Measuring range 1-50ml 1-50ml 1-50ml
Measuring accuracy ±2% ±2% ±2%
Measuring method Peristaltic pump
Bag size L:45-130mm,W:35-120mm(Adjustable)
Sealing type 4 side sealing bag
Film width Max.480mm Max.720mm Max.960Y
Film thickness 0.07-0.10mm 0.07-0.10mm 0.07-0.10mm
Cutting type 1.Flat cutting;2.Zig zag cutting;3.Continuous bag ;4Customerized special shape cutting
Control system PLC+Servo+Touch screen
Power Supply 2.8kw,220V/380V 4.1kw,220V/380V 5.5kw,220V/380V
Dimension 1385*918*2005mm 1485*1300*2005mm 1685*1300*2005mm
Weight 350kgs 450kgs 500kgs

Warranty


The sold machine will be guarantee in one year, in the guarantee year, any spare parts broken due to supplier’s quality issue, the spare parts will be supplied free for customer, customer need to pay the freight cost if the parcel weight more than 500gram.The easy wearing out spare parts are not in the warranty terms, such as O rings, belts which will be supplied with the machine for one year using.

Training


1.We offer machines training system, the customer can choose training in our factory or in customer workshop.The normal trainig days are 3-5 days;

2. We offer operation manual to customer

3. We take a traning video, and machine operation video to customer

4.we offer remote control service, if customer do not know how to operate and use the machine, we will offer this service

Installation


We will dispatch engineers to carry out installation and debugging of the equipment in buyer's place if requested. The cost for International double ways air tickets, accommodations, food and transportations, medical shall be paid by Buyer for the engineers. Buyer shall fully cooperate with Supplier's engineer and make all the installation condition ready to work. such as: water, electricity, raw material etc.The normal debugging term is 3-7days, and the buyer should pay US$100/day per engineer.
