Form-Fill-Seal

  • Liquid pistion filler bag vertical form fill seal machine Vertical Packaging Machine V.F.F.S.system

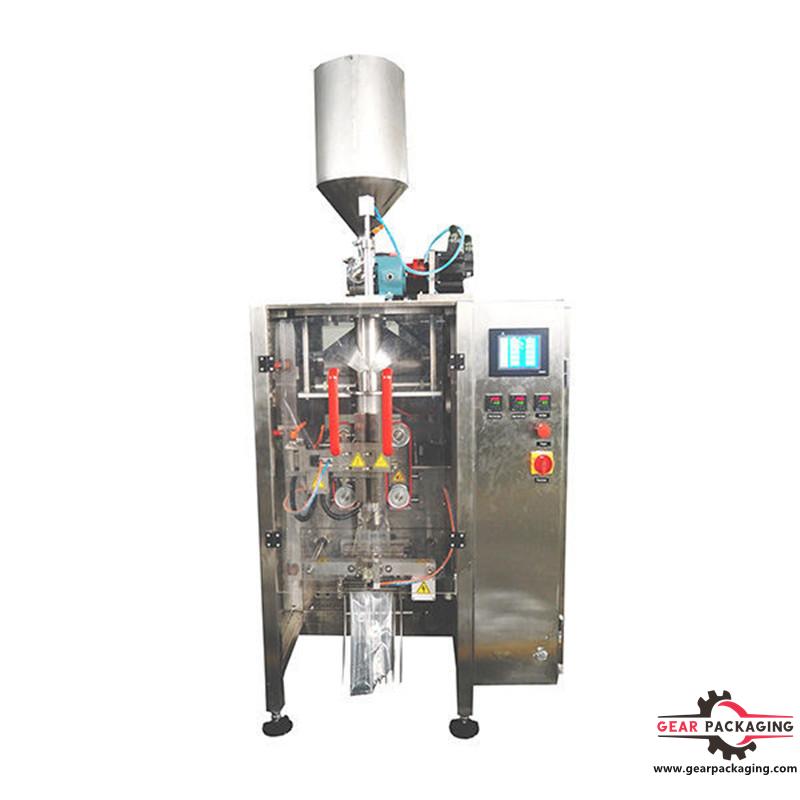

Liquid pistion filler bag vertical form fill seal machine Vertical Packaging Machine V.F.F.S.system

Liquid pistion filler bag vertical form fill seal machine Vertical Packaging Machine V.F.F.S.system

  • Model:GP-LF420
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension:1520mm X 970mm X 1600mm (D x W x H)
  • Product description: Liquid pistion filler bag vertical form fill seal machine Vertical Packaging Machine V.F.F.S.system
  • INQUIRY

Description:

Liquid pistion filler bag vertical form fill seal machine Vertical Packaging Machine V.F.F.S.system


Product description


For Liquid & Semi-dense, such as Water, Juice, Milk, Purees, Sauces, Wax, Gels, Ointments

Integrated packaging system, including Liquid filler system, automatic bag making machine, and elevating roto pump, heating & mixer hopper is optional.



Features


  • Stainless steel systems
  • Wide range of package styles include pillow bag, gusseted bag, block bottom bag or quad seal packs
  • With the ZVF-F series the production of 3 or 4 side-seal pack is available.
  • Up to 5 liter filling volume
  • Pumps for continuous or intermittent liquid feed to bagger
  • Rugged, durable equipment to withstand severe environment
  • Customized to meet your production, package style and economic requirements



Technical Parameters


Model GP-LF420 GP-LF540 GP-LF730
Bag type Pillow type bag; Gusseted bag /Flat bottom bag(Option)
Operation Mode Intermittent
Speed Up to 80 bags/min 20 to 70bags/min
Bag Length

(single stroke)

20 to 280mm

(0.8 to 11’’)

50 to 340mm

(2.0 to 13.4’’)

50 to 460mm

(1.9’’ to 18’’)

Bag Width 40 to 200mm

(1.6 to 7.9’’)

80 to 260mm

(3.1 to 10.3’’)

80 to 350mm

(3.1’’ to 13.8’’)

Packing Weight 10g to 1000g 200g to 2000g 500g to 3500g
Reel Film Width ≤420mm (16.5’’) ≤540mm (21.2’’) ≤730mm (28.7’’)
Reel Outer Dia. 400mm (15.7’’) 400mm (15.7’’) 500mm (19.7’’)
Reel Inner Dia. 75mm (2.9’’)
Film thickness 0.04-0.12mm (40-120mic.)
Voltage AC220V/50Hz, 1phase or Per customer specification
Power Consumption 3KW
Compressed Air Requirement 0.6 MPa0.36 M3/min
Machine Weight 600Kg 800Kg 1000Kg



Liquid Machine


The Liquid Automatic Pouch Packing Machine is ideal for packing of all kinds of liquid and think-liquid, fruit juice, tomato sauce, all type oil, liquid detergent, and others. Equipped with feeding and measuring devices, the Liquid and Sauce VFFS Machine marketed under the name Liquid Forming Filling Sealing Machine, accomplishes feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery, in a continuous flow.

Machine Name  Liquid VFFS Machine
Model M– 03
Filling Capacity 20 - 50ml, 100-250ml, to 500-1000ml
Machine Speed 1000 to 4000 Pouches / Hr
Total Power 2.5 KW 220v Single Phase 50 / 60Hz
Air Compresser 8 CFM With 6 bar Pressure
Weigh 450 Kg {Approx}
Dimension 1520mm X 970mm X 1600mm (D x W x H)
Main Features

 VFFS machine provides attractive bags for customers

The vertical form fill seal machine accomplishes bagging, sealing, date printing, punching, and counting automatically

The film drawing down system is controlled by a servo motor, offering automatic rectifying deviation

The granule VFFS machine makes use of famous brand PLC and pneumatic system for vertical and horizontal sealing

With low maintenance cost, the vertical packaging machine is easy to operate, and compatible with different internal or external measuring devices

As to the way of bag making, the granule VFFS machine can make pillow type bags and standup Bags as per customer needs
