Form-Fill-Seal

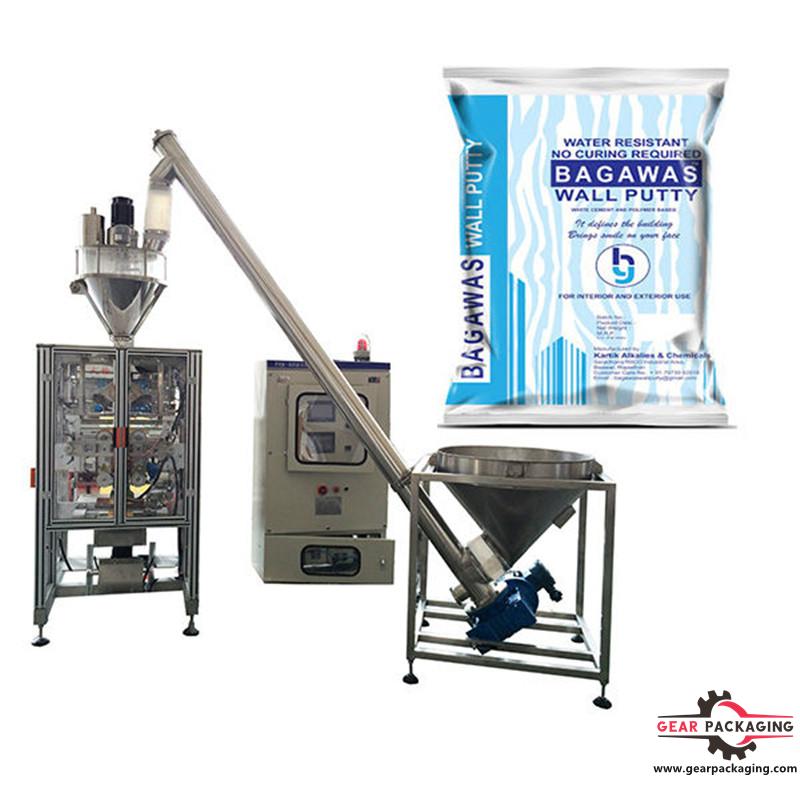

chemical fertilizer packing machine V.F.F.S. Bagger Complete Systems

GP-VP420
Type:Form Fill Seal
Packaging Type:Bags
Dimension:L1320×W920×H1392mm
Product description: chemical fertilizer packing machine V.F.F.S. Bagger Complete Systems
INQUIRY

Description:

Applications

Suit for the quantitative weighing of powder products, such as coffee powder, milk powder, chocolate powder, protein powder, flour, wheat powder curry powder, medicine powder etc.

Features

Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
Use famous brand electric and pneumatic components, stable and long life circle.
Use superior mechanical components, reduce the wear out loss.
PLC control with stable and high accuracy output.
Two color touch screen 7", one for packing machine, another for multihead weigher .

Optional Device

Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.

Technical Specifications

Model	GP-VP420
Bag size	L(60~300)×W(40~200)mm
Packing speed	5~60 bags/min
Mad width of film roll	≤420mm
Driving film type	by a pair of belt controlled by servo
Air consumption	0.6MPa
Gas consumption	0.4m³/min
Power requirement	2.2KW, 220V, 50HZ
Machine size	L1320×W920×H1392mm
Machine weight	450Kg

Auger filler

Application:

GP-AF420 with servo motor driven, designed for dosing powder products, suit for a wide range of loose powdery products, such as flour, powdered milk, cocoa, icing sugar, baby food, ground spices, finely ground coffee, chemical products, etc.
With ability to Synchronization with most of automatic packing machine, it works to dosing, filling, sealing job. (Read more for Vertical Form Fill Seal With Auger Filler Packing System)
This Series Auger Filler equips side open hopper for easy cleaning, maintenance.

Model	GP-AF420
Weighing range	10~5000g(One auger screw for one differeng weight range)
Weighing accuracy(g)	Range<100g, deviation:0.5~1g
Weighing accuracy(g)	Range: 100~5000g, deviation:0.5~1%
Filling speed	10~50 bags per minute
Material hopper	50L
Voltage	220V/380V
Gross weight	200Kg
