Form-Fill-Seal

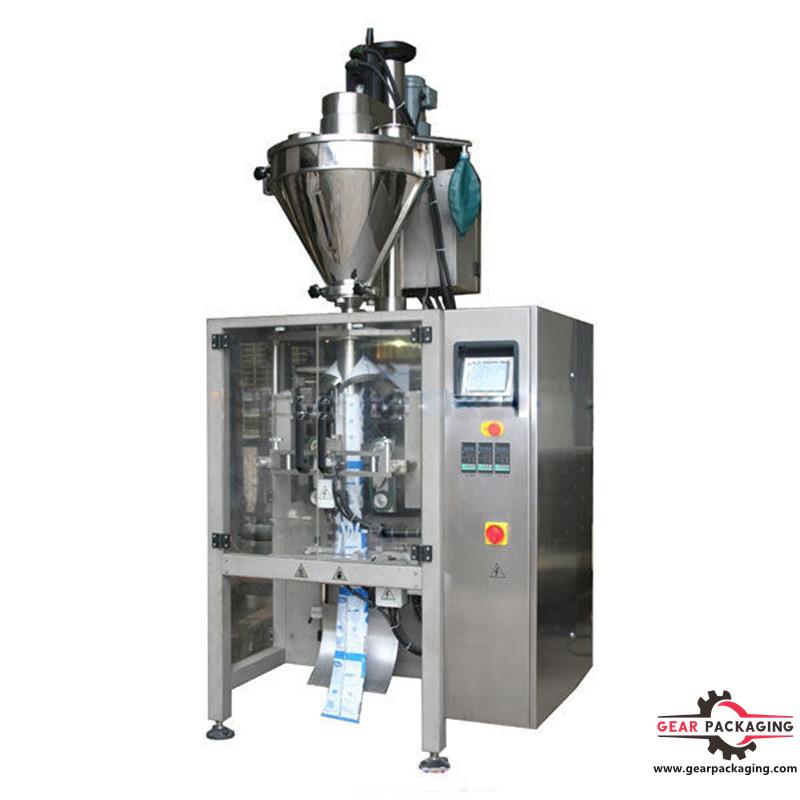

  • Auger powder filler vertical form fill seal machine V.F.F.S. Bagger Complete Systems
Auger powder filler vertical form fill seal machine V.F.F.S. Bagger Complete Systems

Auger powder filler vertical form fill seal machine V.F.F.S. Bagger Complete Systems

  • Model:GP-F420
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension:1250mm X 1200mm X 1800mm (D x W x H)
  • Product description: Auger powder filler vertical form fill seal machine V.F.F.S. Bagger Complete Systems
  • INQUIRY

Description:

Auger powder filler vertical form fill seal machine V.F.F.S. Bagger Complete Systems


Product description


Vertical Form Fill Seal With Auger Filler Packing System for powder products,such as milk, flour, spices,pharmacy,ground coffee,cocoa powder etc.
Integrated packaging system, including powder Screw elevator, Auger filler dosing system, automatic bag making machine and accessories units.



Features


  • High-speed capabilities up to 70 packs per min
  • Variety of package styles including pillow bag, gusseted bag, block bottom bag, vacuum bag and valve applicators
  • With the GP-F series the production of block bottom bag sealed at the 4 edges for more stability (quad seal pack) is available.
  • Omron controls as standard
  • User-friendly interface
  • Rapid changeover
  • Stainless steel systems
  • Customized to meet your production, package style and economic requirements



Technical Parameters


Model GP-F420 GP-F540 GP-F730
Bag type Pillow type bag; Gusseted bag /Flat bottom bag(Option)
Operation Mode Intermittent
Speed Up to 80 bags/min 20 to 70bags/min
Bag Length

(single stroke)

20 to 280mm

(0.8 to 11’’)

50 to 340mm

(2.0 to 13.4’’)

50 to 460mm

(1.9’’ to 18’’)

Bag Width 40 to 200mm

(1.6 to 7.9’’)

80 to 260mm

(3.1 to 10.3’’)

80 to 350mm

(3.1’’ to 13.8’’)

Packing Weight 10g to 1000g 200g to 2000g 500g to 3500g
Reel Film Width ≤420mm (16.5’’) ≤540mm (21.2’’) ≤730mm (28.7’’)
Reel Outer Dia. 400mm (15.7’’) 400mm (15.7’’) 500mm (19.7’’)
Reel Inner Dia. 75mm (2.9’’)
Film thickness 0.04-0.12mm (40-120mic.)
Voltage AC220V/50Hz, 1phase or Per customer specification
Power Consumption 3KW
Compressed Air Requirement 0.6 MPa0.36 M3/min
Machine Weight 600Kg 800Kg 1000Kg

Auer Filler Machine


Auger Filler Pouch Packing Machine suits packaging of all kinds of powder, like milk powder, coffee, spices, additives, and more. Equipped with feeding and measuring devices, the packing machine accomplishes feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery, in a continuous flow. PLC control system and large touch screen make the powder VFFS (Vertical Form Fill Seal) Collar Type Auger Filler Pouch Packing Machine user-friendly.


Machine Name VFFS. Servo Augar Machine
Model 01
Filling Capacity 50 - 250 to 500 - 1000 gm
Machine Speed 1000 to 4000 Pouches / Hr
Total Power 2.5 KW 220v. Single Phase 50 / 60Hz
Air Compresser 8 CFM with 6 bar Pressure
Weigh 430 Kg {Approx}
Dimension 1250mm X 1200mm X 1800mm (D x W x H)
Main Features

powder VFFS machine provides low cost high gain, high speed and efficiency.

The powder vertical form fill seal machine comes with famous brand PLC control system and large touch screen, and thus is easy to operate.

The vertical packaging machine makes use of film drawing down system and horizontal sealing controlled by servo motor.

The powder VFFS machine minimizes the loss, by use of auto alarm design.

Equipped with feeding and measuring devices, the packing machine accomplishes feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery, in a continuous flow.

As to the way of bag making, the vertical form fill seal machine can make pillow type bags and standup bags as per customer need.
