Surgical Latex Gloves Inner Wallet Packaging Machine Medical Glove Inner Lining Paper Packing Line

Description:

Model:GP-G30AB/GA50AB
Packing:Surgical Gloves
Gloves size:5.5-8.5 inches
Packing Paper Size:
①390mm x 260mm / 5.5-9.5 inches
②470mm x 260mm / 8-8.5inches
Packaging Specification: 100mm x 200mm& 120mmx200mm
Packing Speed: About20-30pairs/min  / About 40-50 pairs/min
Machine dimension:3600mm x 2500mm x 1530mm /4500mm x 4300mm x 1500mm
Gross Weight: About 1200kgs
The packaging machine includes a frame bottom plate, the frame plate, the sheet feeding unit, a printing unit, the discharge guide roller feeding portion, and an output unit packaging unit, the packaging unit, the traction rollers , the cutting roller, the auxiliary conveyance roller before the front folding roller pressure line, the auxiliary conveying rollers, the folding rollers pressure line, before and after pressing off the conveying strand and the folding rollers together sequentially arranged and fixed as a rotatable frame side between the plates, wherein the guide roller is provided between the discharge portion and the flange plate; bonded folding rollers disposed vertically on the chassis base plate, perpendicular to the central axis of the central axis together with the folding roller folding together the transport roller, the bonding said folding roller comprises a folding closing the folding rollers and the lower rollers engaged, on closing off the upper roll and lower roll are bonded folding conveyor belt defines a groove, the upper and lower closing off the conveying folding rollers Hop between the lower rollers are connected by twisting belt, conveyor belt connected between the tank; the packaging machine can greatly reduce costs labor costs, increase efficiency.

Machine Characteristics:
1.PLC control,frequency control and other electric devices are all international well know brand products.
2.Adopts the man-machine interface operation system
3.It is not only can finish packaging process automatically,but also make is looks better than that of human-maked.
4.The fast packaging speed can reduce the working strength of workers and improve the working efficiency.
5.Combined with the Four ealing pressure Packaging Machine,there will be an auto production line.
6.Easy maintainance and repair.
7.Stable performance and easy operation.

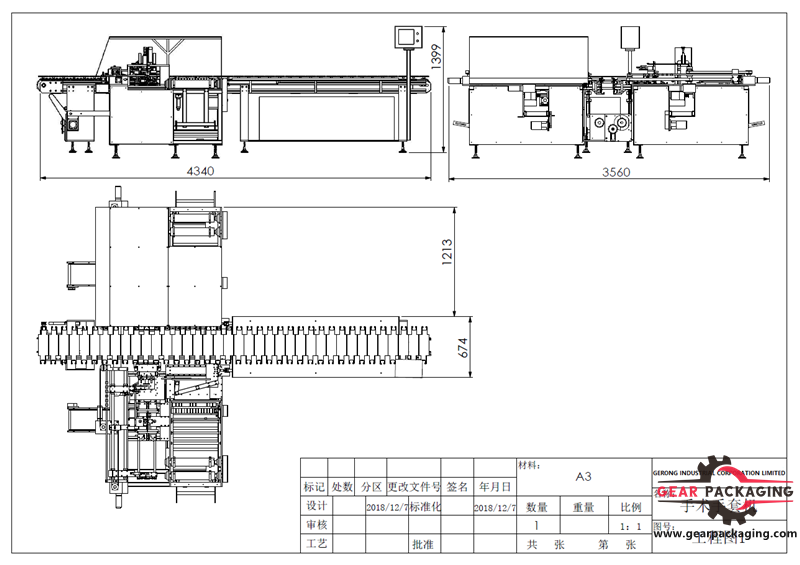

Machine Drawing:

Packaging and shipment:

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components.ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician allowance per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account.(as above).
