Form-Fill-Seal

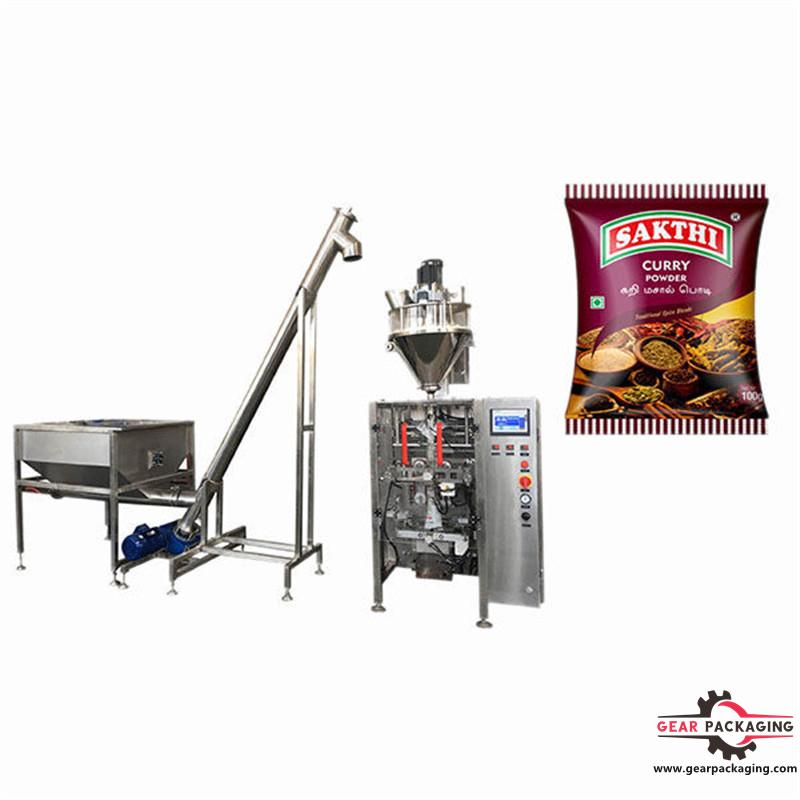

  • 100g-500g curry powder packaging machine V.F.F.S. Bagger Complete Systems
100g-500g curry powder packaging machine V.F.F.S. Bagger Complete Systems

100g-500g curry powder packaging machine V.F.F.S. Bagger Complete Systems

  • GP-F420
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension:(L)1080mm*(W)1300mm*(H)1400mm
  • Product description: 100g-500g curry powder packaging machine V.F.F.S. Bagger Complete Systems
  • INQUIRY

Description:

100g-500g curry powder packaging machine V.F.F.S. Bagger Complete Systems


Applications


This style of machine can complete the measuring, filling etc. Because the original design, it more suitable for packing the easy flow or poor liquidity of powder and granular materials, such as veterinary medicine, powder granular additives, sugar, cotton, sugar glucose, monosodium glutamate, solid beverage, solid medicine, carbon powder, talcum powder, pesticide, dye, flavor and fragrances etc.


Features


√ High precision digital weighing sensors;
√ PLC control system ,stable and reliable;
√ 5.7inch colorful touch screen;
√ Material contact parts (storage hopper, hopper, vibration plate, weighing hopper, etc.) are to realize fast disassembly, easy to clean;
√ Easy to clean and maintance.


Optional Device


Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.


Technical Specifications


Type GP-F420
Bag length 50-300mm(L)
Bag width 50-200mm(W)
Max width of roll film 420mm
Packing speed 5-60bags/min
Measuring range 150-1200ml
Air consumption 0.65mpa
Gas consumption 0.3m³/min
Power voltage 220VAC/50Hz
Power 2.2KW
Dimension (L)1080mm*(W)1300mm*(H)1400mm
Deadwight of machine 600kg


Auger Filler for powder, range 10-1000g, speed up to 80 discharges per min.


Application:

Auger Filler with servo motor driven, designed for dosing powder products, suit for a wide range of loose powdery products, such as flour, powdered milk, cocoa, icing sugar, baby food, ground spices, finely ground coffee, chemical products, etc.
With ability to Synchronization with most of automatic packing machine, it works to dosing, filling, sealing job. (Read more for Vertical Form Fill Seal With Auger Filler Packing System)
This Series Auger Filler equips side open hopper for easy cleaning, maintenance.

Features:

  • SS 304 Frame, with hydraulic elevator, meets GMP request, also for some corrosive powder.
  • Compact system, stable and durable.
  • Low noise, maintenance free Servo motor driven, precious, fast, high torque, long life, speed adjustable.
  • Air proof hopper, dust proof with easy nitric flushing. Discharge gate with dust collector.

Technical Specification:

Working Method: Auger Screw
Auger Diameter: 22mm - 84mm (0.9" - 3.3")
Packing Range: 10-1000 gram Change Auger
Working Speed: 20 - 80 Discharge Per Min
Accuracy: ≤+/-0.3-1%
Voltage: 3 Phrase 380v or Single Phrase 220v
Power: 0.9Kw Servo Motor For Auger: 1000W, Mixing Motor:200W.
Weight: 130Kgs (286.6 lb.)
Volume of Hopper: 50 Liter
Dimension: Refer to Product Pictures
