Form-Fill-Seal

  • Stickpack powder form fill seal machine Vertical Packaging Machine

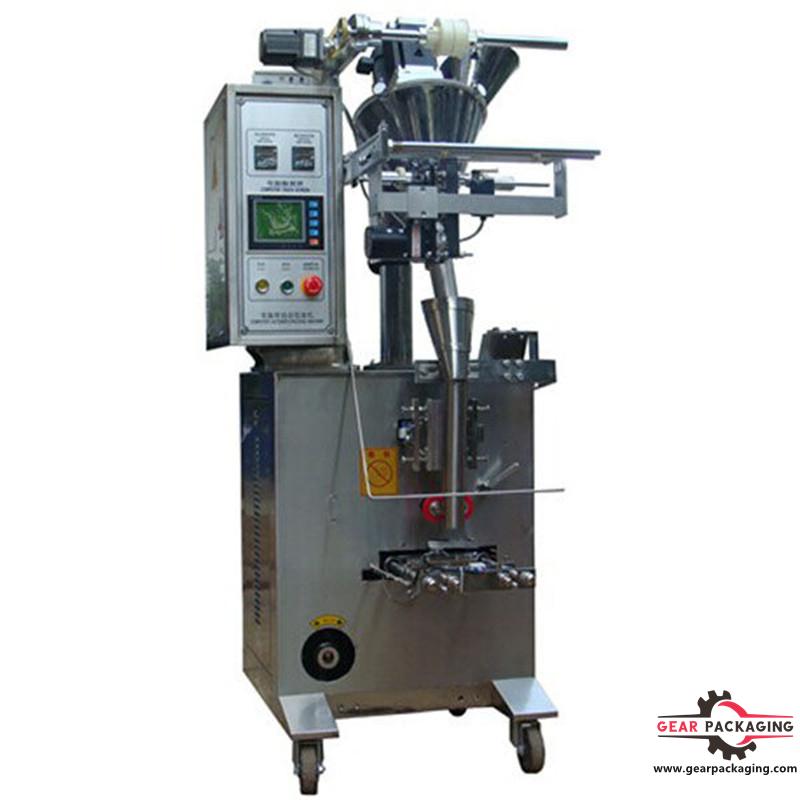

Stickpack powder form fill seal machine Vertical Packaging Machine

Stickpack powder form fill seal machine Vertical Packaging Machine

  • Model:GP-P320
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Electrical:220V/50HZ, 1Phase or as per customization
  • Product description: Stickpack powder form fill seal machine Vertical Packaging Machine
  • INQUIRY

Description:

Stickpack powder form fill seal machine Vertical Packaging Machine


Product description


Integrated with auger filler as the dosing system, ZTF series bagger is applied to packing flour, milk powder, vitamin powder, spice, and other powder with bad fluidity.



Features


  • High-speed capability up to 100bpm
  • Intelligent chip controller with 5” LCD interface
  • Photocell for detecting bag length
  • Independent temperature adjustment
  • Easy for operation and maintenance
  • Limitless speed adjustor for wider speed range
  • 304# stainless steel frame for option
  • High performance at low cost

Options


  • Hot stamping date coder
  • Gas flushing device
  • Round hole punching device
  • Chain-bag device
  • Air reel film holder



Technical Specifications


Model GP-P320 GP-P520 GP-3S-P320 GP-4S-P320
Bag style Pillow bag Pillow bag 3-side-seal bag 4-side-seal bag
Speed (bpm) 24-60 30-50 24-60 24-60
Packaging Weight (ml) 40-220 300-1000 0.5-3;3-10;10-60 0.5-3;3-10;10-60
Bag length(mm) 30-180 100-310 30-150 30-150
Bag width(mm) 25-145 100-240 25-145 25-145
Film width(mm) ≤300 ≤500 ≤280 ≤270
Reel film width 30-100mic.
Electrical 220V/50HZ, 1Phase or as per customization
Power consumption 2.2kw 2.5kw 1.8kw 2.2kw
Machine weight(kg) 280 350 250 280



Product Introduction


1.Independent pouch making, auto filling and sealing, suits for zip lock /stand up pouches or flat bag;

2.Suitable for various film, like Polyethylene, multi-layer composite film,with fully auto work for each process. It’s widely used for zip lock pouches. Flexible change of filling device according to various materials, such as powder, liquid, granules and paste etc.

3.Adopt PLC controller, equip with photoelectric sensor and encoder, so well guarantee its high speed in packing, stable operation, also reduce the frequency of maltifunctions and less the energy waste.



Our Services


After-sale service:
We provide you with one year warranty and life long after-sale service, we guarantee the main parts
within 12 months, if the main parts go wrong without human contact within one year, we will freely provide
with you. And after one year, if you need to change parts, we will provide with you with best price and
main it in your site. Whenever and wherever you have technical problems, you can contact us at any time,
we will do our best to support you to solve the problems.

Quality guarantee:
nail polish labeling machine
We are the manufacturer of the machine, as a manufacturer, we guarantee the machine are made of
the best materials, with first-class workmanship, brand new, unused and in all respects with the quality,
specification and performance are stipulated in the contract.

Quality warranty period is within 12 months from B/L date. The manufacturer would repair the
contracted machines free of charge during the quality guarantee period . If the breakdown is due
to the improper use or other reasons, the manufacturer will collect the repair fee.
