Form-Fill-Seal

  • Liquid paste sachet bagger equipment Vertical Packaging Machine
Liquid paste sachet bagger equipment Vertical Packaging Machine

Liquid paste sachet bagger equipment Vertical Packaging Machine

  • Model:GP-J320
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Machine:weight(kg) 280
  • Product description: Liquid paste sachet bagger equipment Vertical Packaging Machine
  • INQUIRY

Description:

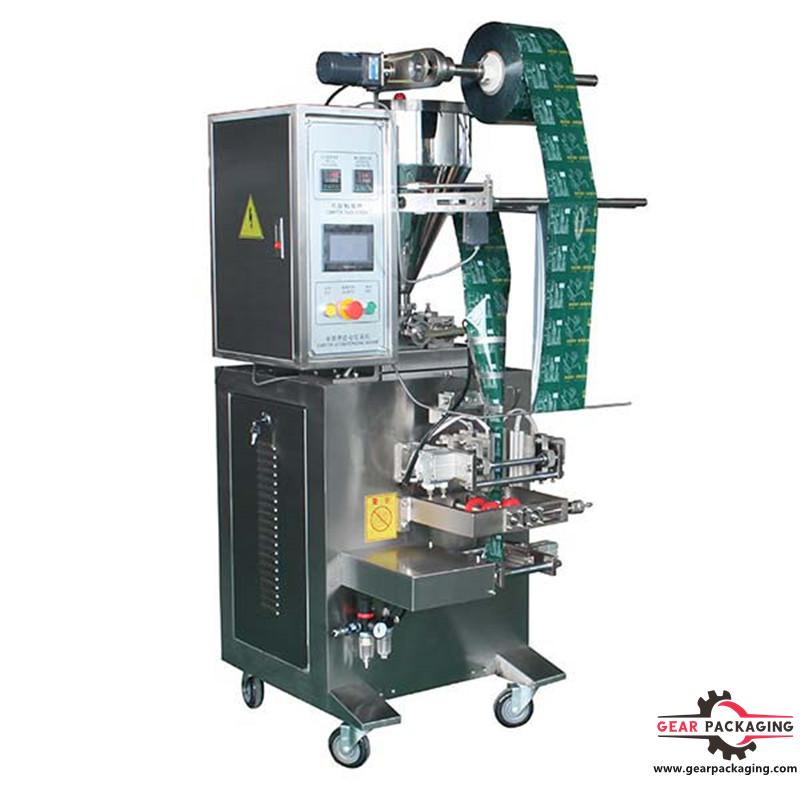

Liquid paste sachet bagger equipment Vertical Packaging Machine


Product description


Integrated with piston filler as the dosing system, FP-J series bagger is applied to packing liquid or paste, like water, juice, sauce, vinegar, honey, ketchup, mayonnaise, shampoo and etc.



Features


  • High-speed capability up to 60bpm
  • Intelligent chip controller with 5” LCD interface
  • Frequency converter for option
  • Independent temperature adjustment
  • Easy for operation and maintenance
  • Limitless speed adjustor for wider speed range
  • 304# stainless steel frame for option
  • High performance at low cost



Options


  • Hot stamping date coder
  • Gas flushing device
  • Round hole punching device
  • Chain-bag device
  • Air reel film holder



Technical Specifications


Model GP-J320 GP-J520 GP-J3S-320 GP-J4S-320
Bag style Pillow bag Pillow bag 3-side-seal bag 4-side-seal bag
Speed (bpm) 24-60 15-40 15-40;24-60 24-60
Packaging Weight (ml) <40; 20-100 500-2000 <40; 20-100; 50-300 <40, 20-100; <25, 20-75, 50-150
Bag length(mm) 30-180 100-310 30-150 30-150
Bag width(mm) 25-145 100-240 25-145 25-145
Film width(mm) ≤300 ≤500 ≤280 ≤270
Reel film width 30-100mic.
Electrical 220V/50HZ, 1Phase or as per customization
Power consumption 1.8kw 2.5kw 1.8kw 2.2kw
Machine weight(kg) 280 350 280 280


Application&bag type


Applicable to a variety of powder packaging , such as milk powder, coffee powder, flour, cornstarch, washing powder and other products.
Applicable Pouches: Pillow / back sealing /flat pouch, 3/4 side sealing pouch,stick/triangle pouch,gusseted/quatro pouch,
doypack.



Our warm service


1. Manules / Videos of machine installation, adjusting, setting, maintenance are available to you.
2. If any problems occured and you can not find out the solutions, Telecom or Online face to face communication are available around 24 hours.
3. Shilong engineers & technician are ready to your countries for services if you agree to pay the expenditure.
4. The machine will have one year warranty. During the warranty year, if any of the parts are not broken because of misoperation, we guarantee to replace free of charge. The warranty will start counting after the machine is sent out and we received the B/L.
5. Shilong has an independent team for after-sale service. If any emergency please call the saleman or our after-sale's manager.
