Form-Fill-Seal

  • Pre-Made Pouch Packaging Solutions bag stand-up pouch filling sealing packing machine

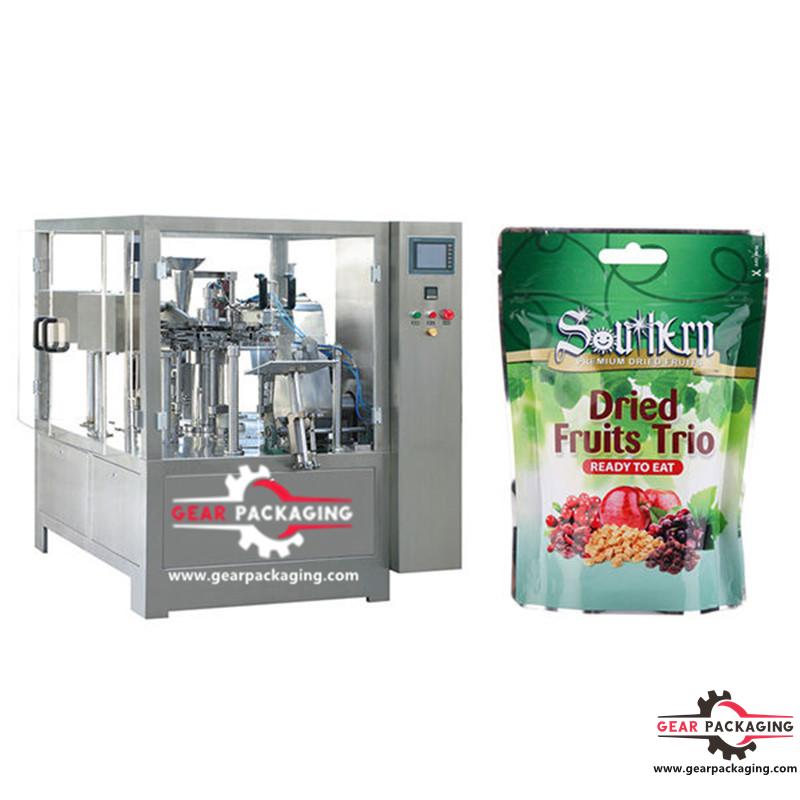

Pre-Made Pouch Packaging Solutions bag stand-up pouch filling sealing packing machine

Pre-Made Pouch Packaging Solutions bag stand-up pouch filling sealing packing machine

  • Model:GP-150
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension: 2865mm*1645mm*2000mm(L,W,H)
  • Product description: Pre-Made Pouch Packaging Solutions bag stand-up pouch filling sealing packing machine
  • INQUIRY

Description:


Pre-Made Pouch Packaging Solutions bag stand-up pouch filling sealing packing machine

Product Application


1.Solid: leisure food (candy\ chocolate) etc.
2.Grain: condiment (monosodium glutamate, chicken essence, granulated sugar), dry fruit (nuts), capsule, grain medicine , seed, feed
3.Powder:condiment, monosodium glutamate, salt, glucose, narrowly sugar, milk powder, washing powder etc.
4.Liquid: yellow wine, soy sauce, rice juice, drink, detergent
5.Thick liquid: ketchup, peanut butter, sauce, chili sauce, bean butter
6.Other materials can be bagged


Bag types


Standup bag, Portable bag, Zipper bag, 4-side sealing bag, 3-side sealing bag. paper bag, Mtype beg etc, and al kinds of compound bags


Main Features


  1. High speed: max spee ed for double feeding is 90 bags/min;
    2 Wide applications: various shapes, state and nature of products;
    3. A wide range of pouches: all kinds of pre-made pouches;
    4. Easy to operate: PLC controller, HMI system makes easy operation;
    5. Easy to adjust Realize full automation, input parameters to Hml system,each part of machine automatically adjust to required instruction;
    6. High Automation: unmanned in weighing and packing process, machinealarm automatically when failure;
    7.Perfect Prevention System. When the bag is not open or not openedenough, it will be non-flling and non-sealing, so the bags can be reused and not wasted and it will save the production cost,
    8. The product contact parts are adopted SUS304 to ensure sanitation and safety,meet the GMP standard;
    9. Imported tolerance plastic bearings: without refueling, reduce the potation ofMaterial;
    10. Vacuum Generator: low consumption, high efficiency, cleaness, and long use Life;
    11. Premade bag packing: Perfect sealing quality, upgrade the finished product.


Technical Parameters


Stand Up Pouch Filling Sealing Packing Machine
Equipment model GP-150
Equipment material 304 stainless steel
Pneumatic component SMC,AirTAC
Vacuum component Vacuum generator (SMC)
Drive mode Frequency conversion motor drive
Operation interface Touch screen(double language:Chinese and English)
Bag materials Heat sealable film as PA/PE,PET/PE,AL film etc.
Bag size W:75~165mm L:100~300mm
Filling range 10~500g
Packing speed 60~90bags/min (depended on the product and filling weight)
Package accuracy Error≤±1%
Weight 3000KG
Dimension 2865mm*1645mm*2000mm(L,W,H)
Total power 3kw
Power source 380V/ 3P/ 5L/ 50HZ
Compress air requirement ≥1m³/min (compress air is provided by user)
