Form-Fill-Seal

  • Dry fruit food standup Pre-Made Pouch Packaging Solutions automatic dry fruit standup pouch filling and sealing equipment

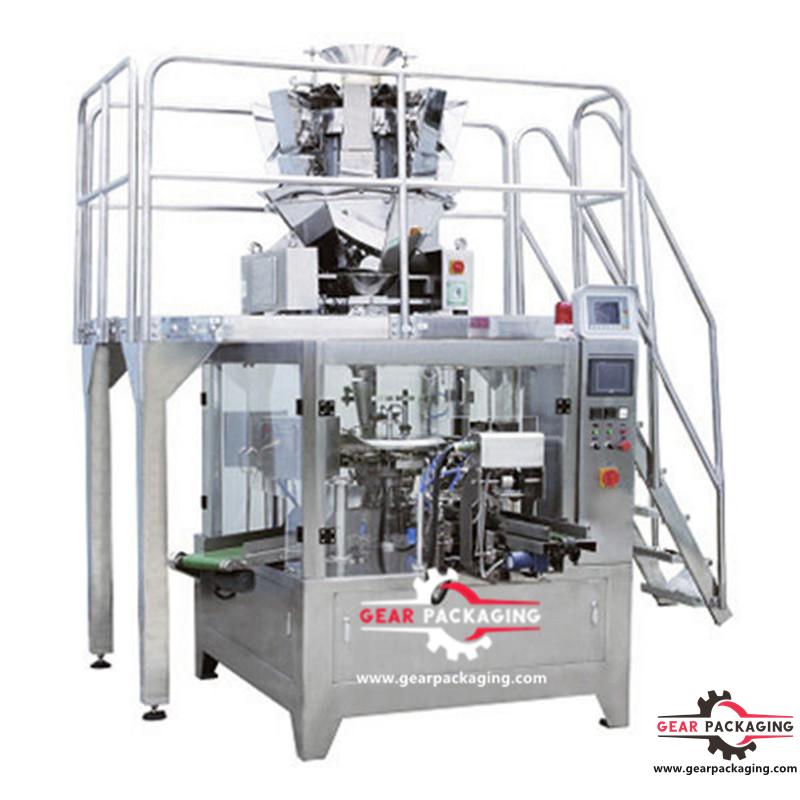

Dry fruit food standup Pre-Made Pouch Packaging Solutions automatic dry fruit standup pouch filling and sealing equipment

Dry fruit food standup Pre-Made Pouch Packaging Solutions automatic dry fruit standup pouch filling and sealing equipment

  • Model:GP-Z6-200
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension:1475*1325*1480(L,W,H)
  • Product description: Dry fruit food standup Pre-Made Pouch Packaging Solutions automatic dry fruit standup pouch filling and sealing equipment
  • INQUIRY

Description:

Dry fruit food standup Pre-Made Pouch Packaging Solutions automatic dry fruit standup pouch filling and sealing equipment

Bag types


Standup bag, portable bag, Zipper bag, 4-side sealing bag, 3-side sealing bag, paper bag, M type bag etc, and all kinds of compound bags.

Applications


All kinds of gains and solids, like candy, nuts, raisins, peanuts, melon seeds, nuts, potato chips, chocolate, biscuits and so on.

Performance and features


1.wide applications: various state and nature of solid (granule);

2.A wide range of pouches: all kinds of pre-made pouches;

3.Easy to operate: PLC controller, HMI system makes easy operation;

4.Easy to adjust: change different pouches within 10 minutes;

5.High automation: unmanned in weighing and packing process, machine alarm automatically when failure;

6.Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing, so the bags can be reused and the product is not wasted thus save the production cost;

7.The product contact parts are adopted SUS304 to ensure sanitation and safety, meet the GMP standard;

8.Imported engineer plastic bearings, no need to oil, no contamination;

9.Vacuum generator: low consumption, high efficiency, cleaness, and long useful life;

10.Pre-made bag packing:perfect sealing quality, upgrade the finished product.


Technical parameters


Equipment model GP-Z6-200, GP-Z8-200
Equipment material 304 stainless steel
Pneumatic component SMC,AirTAC
Vacuum component Vacuum generator (SMC)
Drive mode Frequency conversion motor drive
Measuring type Multi-head computer weigher
Operation interface Touch screen(double language:Chinese and English)
Bag materials Heat sealable film as PA/PE,PET/PE,AL film etc.
Bag size W:70~200mm  L:100~300mm (date coding requires≥140mm length)
Filling range 5~1500g
Packing speed 20~55bags/min (depended on the product and filling weight)
Package accuracy Error≤±1%
Weight ZG6-200:800kg
ZG8-200:1000KG
Dimension ZG6-200:1475*1325*1480(L,W,H)
ZG8-200:1635*1455*1480(L,W,H)
Total power ZG6-200:1.5kw
ZG8-200:2.3kw
Driving power source 380V Three-phase Five-line 50HZ
Control power source DC24V
Compress air requirement ≥0.45m³/min (compress air is provided by user)
