Form-Fill-Seal

  • 8 line multi line sachet stick sugar granule packing machine VFFS bagging machine

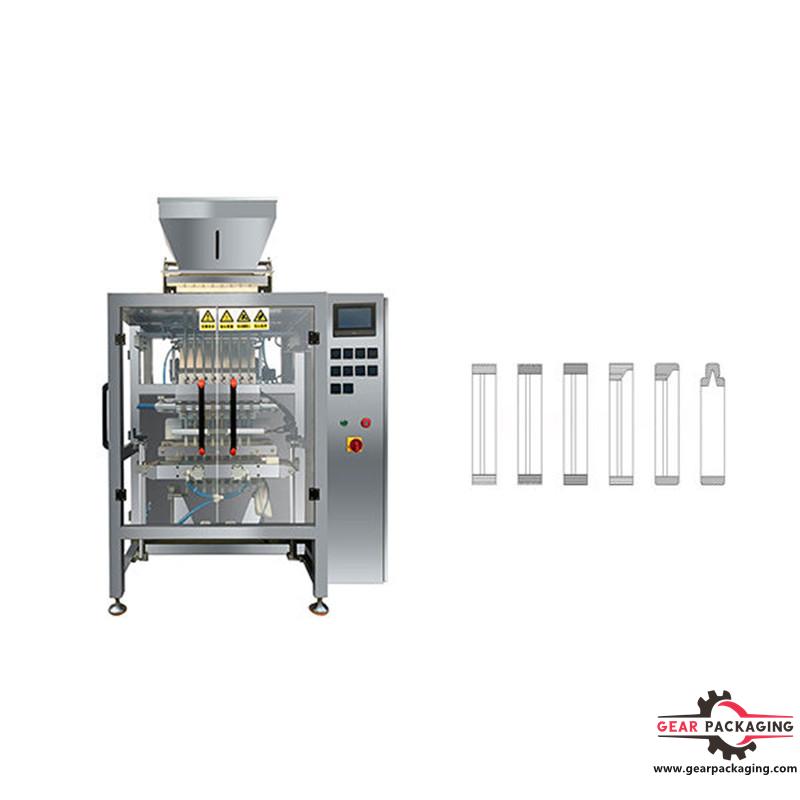

8 line multi line sachet stick sugar granule packing machine VFFS bagging machine

8 line multi line sachet stick sugar granule packing machine VFFS bagging machine

  • Model:GP-480KB
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension:L1500x W1400xH2400 mm
  • Product description: 8 line multi line sachet stick sugar granule packing machine VFFS bagging machine
  • INQUIRY

Description:

8 line multi line sachet stick sugar granule packing machine VFFS bagging machine


Applications


This machine is widely used to pack any loose,non-cohesive granule products of the food,phaeceutical,and chemical industries,such as soup mix,coffee,instant drink mix,desiccant,monosodium glutamate,sugar,salt,cereal etc.

Features


1, Touch screen with PLC system, touch screen can be set up in many languages, and PLC system can store a large number of data for machine performance.

2, Servo motor for controlling, which can make the whole machine running more steady.

3, Machine line can be set up from 2-12 lines, the capacity of each line is 50 bags/min.

4,  Machine house is 304 stainless steel which meets to GMP standard by pharmacy.

5, This machine is easy operated and perfect structured which is the first choice of higher production efficiency, reducing labor intensity and higher packaging level.

6, With safe plastic box on rotating blade to avoid hurting operator's hands

7, Need to change new temperature controller,blade& pressing mode only after 3 years continuous operation,2 shifts a day and other parts is still good and safe freely)

8, With printer (to be able to code the date and batch number) and rotating blade(be able to adjust the length of bag and shape of bag notch edge packing.

Technical Specifications


Name 8 lanes granule Packing Machine
Model GP-480KB
Bag style Stick seal sachets
Bag size Length: 50mm  Width: 40mm Single lane film width 80mm
Packaging film The maximum width: 480/880mm
Capacity 40-55cycles/min/line

Total packing speed: 300-450sahcets/min

Control style adopt advanced PLC controlling system and convenient touch screen
Pneumatic request 0.6Mpa
Voltage A C380v  3 phases 50Hz
Power 3.5Kw
Weight G.W 850kg
Dimension L1500x W1400xH2400 mm
