Form-Fill-Seal

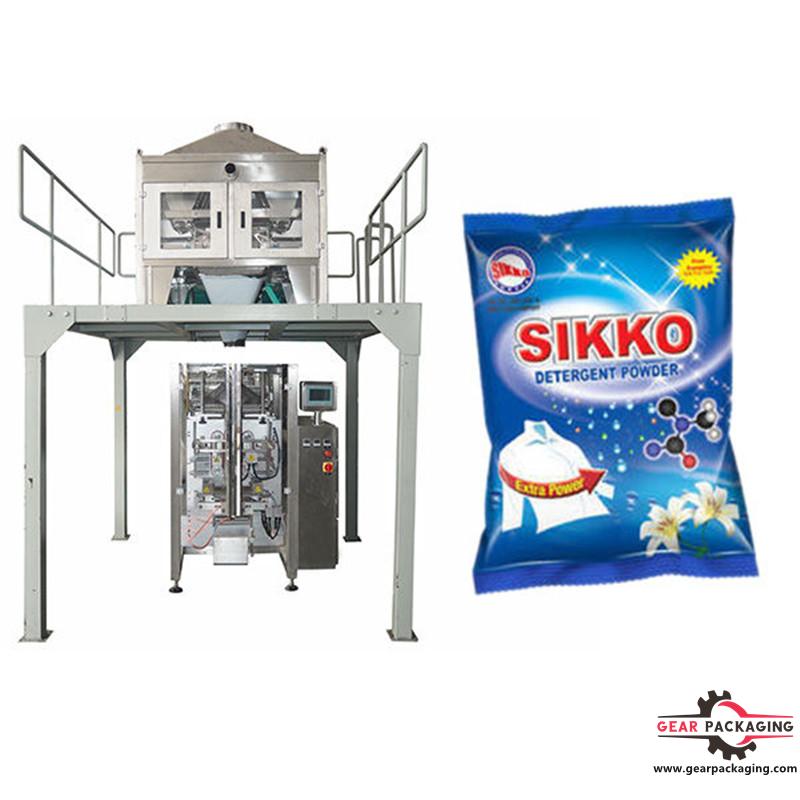

  • 100g-5kg washing powder packaging machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems
100g-5kg washing powder packaging machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems

100g-5kg washing powder packaging machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems

  • Model:GP-P1005
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimensions:1700*1270*1900mm
  • Product description: 100g-5kg washing powder packaging machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems
  • INQUIRY

Description:

100g-5kg washing powder packaging machine Vertical Packaging Machine V.F.F.S. Bagger Complete Systems


Applications


It is suitable for weighing packing dry food with irregular shapes and requiring high measuring accuracy,
For rice, sugar, salt, tea, coffee, detergent powder, desiccant, pet foods, gravels etc fine granules or coarse powder products.

Integrated packaging system, including Linear scale, Z shape bucket loading conveyor with vibratory feeder, weigher platform with stair unit,  automatic bag making machine and accessories units.

Features


Variety of package styles including pillow bag, gusseted bag, block bottom bag, vacuum bag and valve applicators

Wide range of materials available to pack covering all the fine granules and coarse powders

Up to 15 Liter filling volume

Speed up to 60 packs per min

Accuracy 0.1% to 0.5%

Rapid changeover

Customized to meet your production, package style and economic requirements

Rugged, durable equipments to withstand severe environments

Optional Device


Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.

Technical Specifications


Bag Styles:Pillow Bag, Gusseted Bag

Bag Width:100 to 350mm (3.9 to 13.8")

Bag Length:80 to 470mm (3.1 to 18.5")

Product Characteristic:Granules, Powders, Liquids, Pastes

Dosing System Compatible:Volumetric Cup , Piston Filler, Linear Scale , Multi-Head Scale, Auger Filler

Running Motion:Intermittent

Working Efficiency:5-60 bags/min

Control By:PLC with HMI Touch Screen

Date Coding Can Be:Hot Stamping Coder, Thermal Transfer Coder, Label Applicator

Options Available:Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller, Heavy Bag, Heating & Mixing Hopper

Power & Voltage:3 KW

Compress Air:1.0 MPa 0.4 M3/min

Dimensions:1700*1270*1900mm (66.9*50*74.8")

Machine Weight:900 KGS
