Customized Packaging Line

  • 6-heads  full automatic coffee powder filling machine

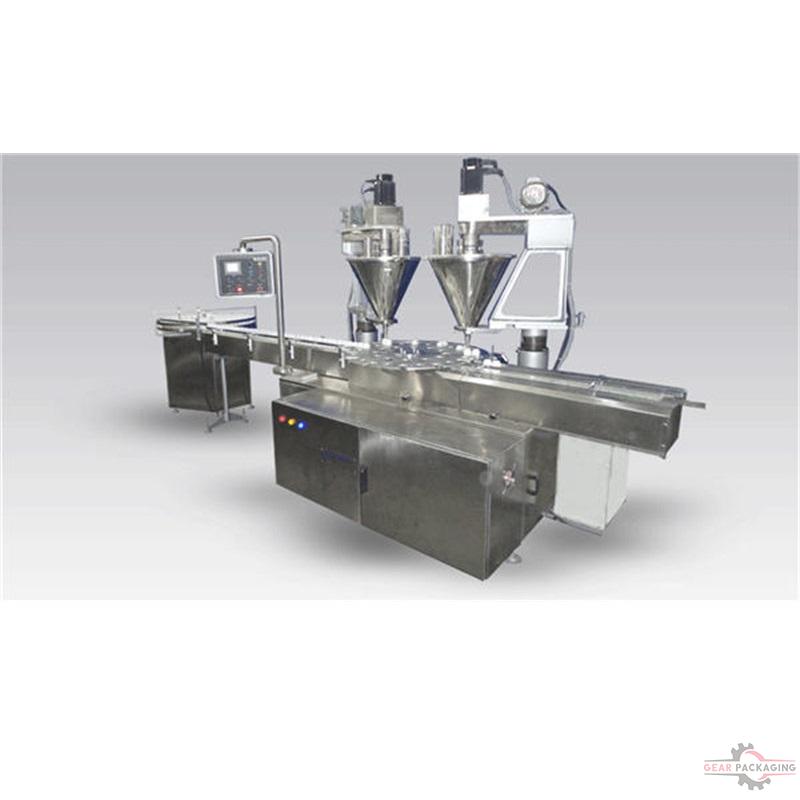

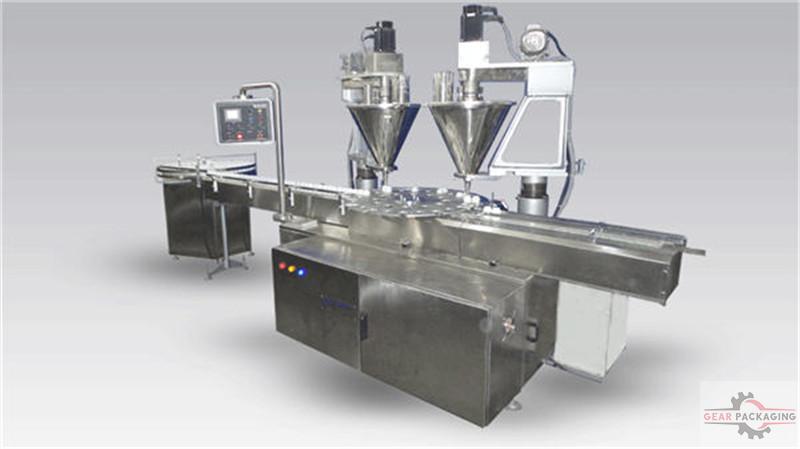

6-heads  full automatic coffee powder filling machine

6-heads full automatic coffee powder filling machine

  • Model:GP-PF
  • Type:COFFEE FILLING LINE
  • Packaging Type:Bottles
  • Dimension :Full conainer shipping
  • Product description: 6-heads full automatic coffee powder filling machine
  • INQUIRY


Specifications
1.world-famous components ;
2.widely used for dense catsup;
3.high filling precision;
4.convenient operation;
5.hot filling.

Machine name: 6-head Full-automatic Honey Filling Machine

Introduction of this machine


Combining many years production experience with foreign advanced technologies, our company developed this series of all-Automatic thick-sauce filling machine. Its electrical and pneumatic components are world-famous products, and it is controled by PLC. Using piston-type metering principles, combining electrical with pneumatic function together, it performs many advantages,such as, reasonable design, compact structure, beautiful shape, stable and reliable performance, accurate filling, good adaptablity, being easy to use and convienent to maintain and so on.

It is widely used in a variety of semi-fluid materials, paste, viscous materials ,sauces, and the granule-containing materials filling. Such as those containing fruit drinks, honey, syrup, jam, peanut butter, sesame, tomato sauce, chili sauce and a variety of cream are applicable to it.

This series of filling machines contain a variety of models with double-heads, 4-heads, 6-heads, 8-heads and even 20-heads, which are classified into many types by filling range. In order to meet different customers's needs,,luxurious model, the model of drums with mixing system and the model of high temperature filling at 70-95 temperature. could be designed according to the actual situation.

Features of this series of filling machine


1.The world-famous electrical and pneumatic components are adopted, so the machine will be stable and reliable and could be used with a low failure rate and long service life

2.The part of machine which touches food are mainly made by the high-quality stainless steel, which makes dismantling, assembling and cleaning more convenient. What’s more, it is in full compliance with food hygiene requirements;

3.Adjustment of filling volume and filling speed is simple. There is no filling when the bottle doesn’t exist. Liquid level controls filling automatically. It has a nice appearance.

4.It is applicable. Without changing elements, bottles of different shapes and sizes can be adjusted and replaced quickly.

5.Filling mouth with anti-drip device ensure that there is no drawing, no dripduring filling.

Main technical parameters

Model

Filling range

Filling speed

Power

Filling

accuracy

Air source and air pressure

GP-2B

20-100ml

15-40 (bot)/min

Power220V/50HZ

Power 110W

(within)±1.5%

0.4-0.6Mpa

50-200ml

15-35 bot)/min

100-500ml

10-30 (bot)/min

300-1000ml

8-25 (bot)/min

500-2000ml

8-25 (bot)/min

GP-4B

20-100ml

20-60 (bot)/min

Power 220V/50HZ

Power 150W

(within)±1.5%

0.4-0.6Mpa

50-200ml

20-50 (bot)/min

100-500ml

20-50 (bot)/min

300-1000ml

15-40 (bot)/min

500-2000ml

15-40 bot)/

min

GP-6B

20-100ml

30-80(bot)/

min

Power 220V/50HZ

Power 200W

(within)±1.5%

0.4-0.6Mpa

50-200ml

30-80 (bot)

/min

100-500ml

25-75 (bot)

/min

20-100ml

15-40 (bot)/min

50-200ml

15-35 (bot)/min

Quick Details


Type: Filling Machine
Condition: New
Application: semi-fluid materials, paste, viscous materials ,sauces etc
Packaging Type: Bottles
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Electric and Pneumatic
Power: 0.3kw
Place of Origin: Shanghai, China (Mainland)
Brand Name: GP
