E-liquid electronic cigarette oil filling machine filling line

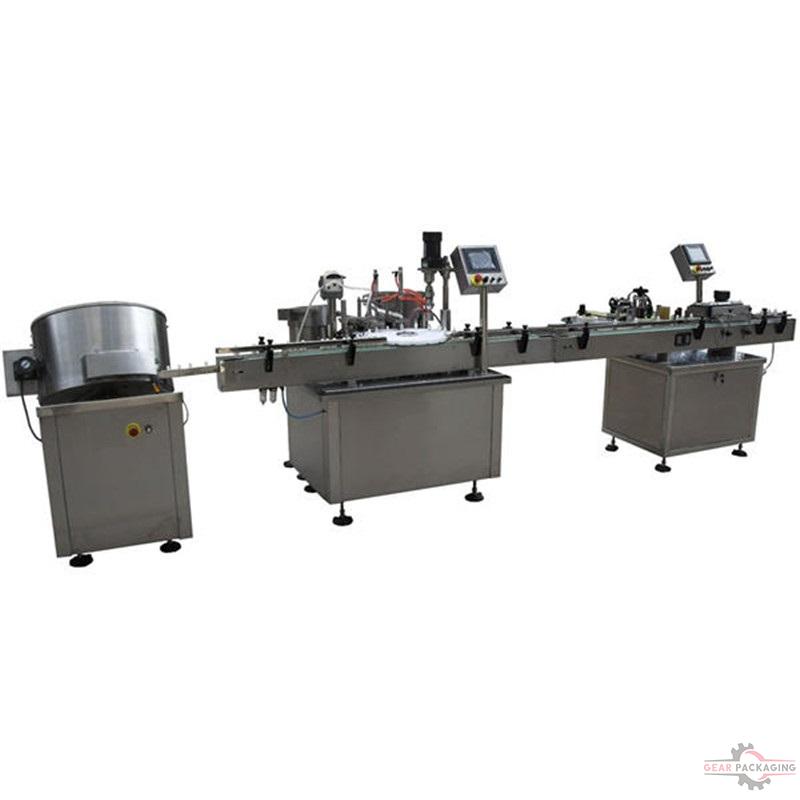

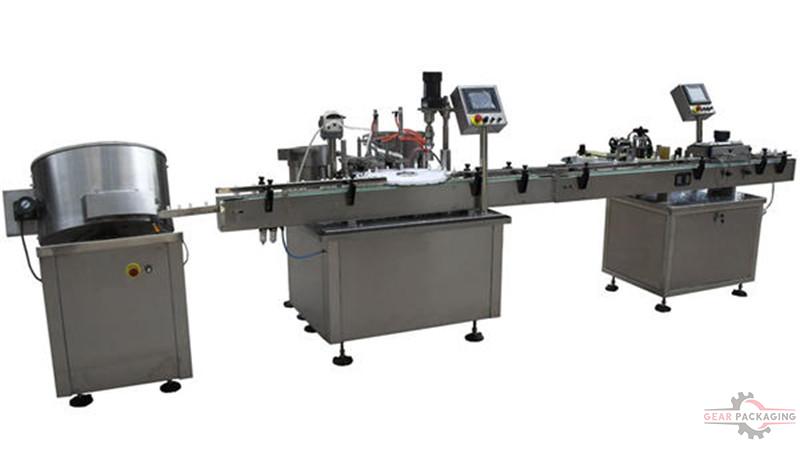

GP-MFC e-liquid electronic cigarette filling machine filling line

Operation precess

1.Material preparation: Ready enough bottles, plug in, cover, and liquid medicine, plug and cover

should be full of vibration hopper rail and is located in the inside and outside cover location

2.Feeder bottles: bottle feeder turntable make the bottles (optional)

3.Filling: Bottle by oscillation tidy up the bottle opener for positioning disk thick, by positioning disk

again

intermittent drive to filling, stoppering, cover, screw cap.Solution by peristaltic pump suction by

silicone pipe,

at the filling station again by the needle can be moved up and down automatically filling liquid in the

bottle.The needle every move up and down, to complete a filling

4.Plugging :Plug is provided by vibration hopper to stoppering station, bottle movement by wheel

clearance to stoppering station, through the optical fiber detection to control stoppered cylinder solenoid valve work signal to control the cylinder work so as to

achieve a bottle gasser no function, not stoppered bottle plug on plate using

gravity principle design, avoid the spring or spring plate made before instability

happens after long time, so the plug is very accurate

5.Capping : Add good plug inside the bottle again by positioning disc sent to the affix, screw cap,

affix a similar principle and urinating in principle, is done by the cylinder, covering

various size by complete, constantly rotating screw LIDS below and overall do up

and down, when the bottle stops right, decline of spin trapping modesty lid

screw cover finish.Screw cap body adopts the design of constant torque, according to the bottle cap and bottle thread with torsion, to adjust the firmness of the screw cap after putting

in place can automatic sliding, achieve the goal of not wounded cover not bottles

6.Bottles out: Spin good cover bottle again by the bottle round to the conveyor beltpull pull final delivery outside the machine, and enter the next packaging process

Note

1, the machine USES unique plug, fixed on plug on precision.

2, no bottle no filling, no bottle no on plug, not plug cover function.

3, with urgent stop switch, automatic alarm when machine is out of order.

4, this machine with dust cover

Technical parameter

Main configuration

Mesa, around the side plates are of high quality 304 stainless steel or other FDA approval of material production, and material contact parts for 316 Lquality stainless steel

Quick Details

Type: Filling Machine
Condition: New
Application: Food, Beverage, Medical, Chemical
Packaging Type: Cans, Bottles, Stand-up Pouch, Bags, Pouch
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Mechanical
Voltage: 220V 50HZ
Power: 2000W
Place of Origin: China (Mainland)
Brand Name: GP e-liquid electronic cigarette filling machine filling line
Model Number: GP-MFC e-liquid electronic cigarette filling machine filling line
Dimension(L*W*H): 3000mm*1300mm*1700mm
Weight: 700KG
Certification: ISO9001 CE GMP
After-sales Service Provided: Engineers available to service machinery overseas
Model: GP-MFC e-liquid electronic cigarette filling machine filling line
Function: Liquid filling , Stopper and Capping machine
Filling volume: 3ml-30ml and 30ml-100ml and 100ml-500ml
Control: PLC and Touch screen
suitable: Vial , perfurm , oral liquid , E-liquid .eye-drop
