Customized Packaging Line

  • Automatic bottle filling capping labeling machine

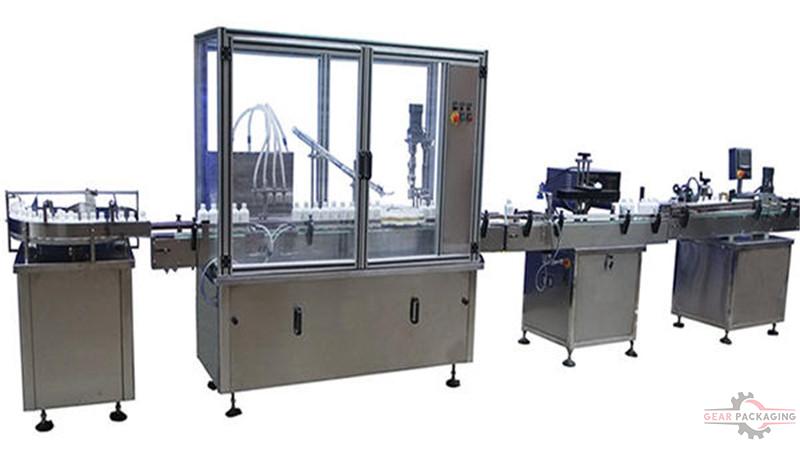

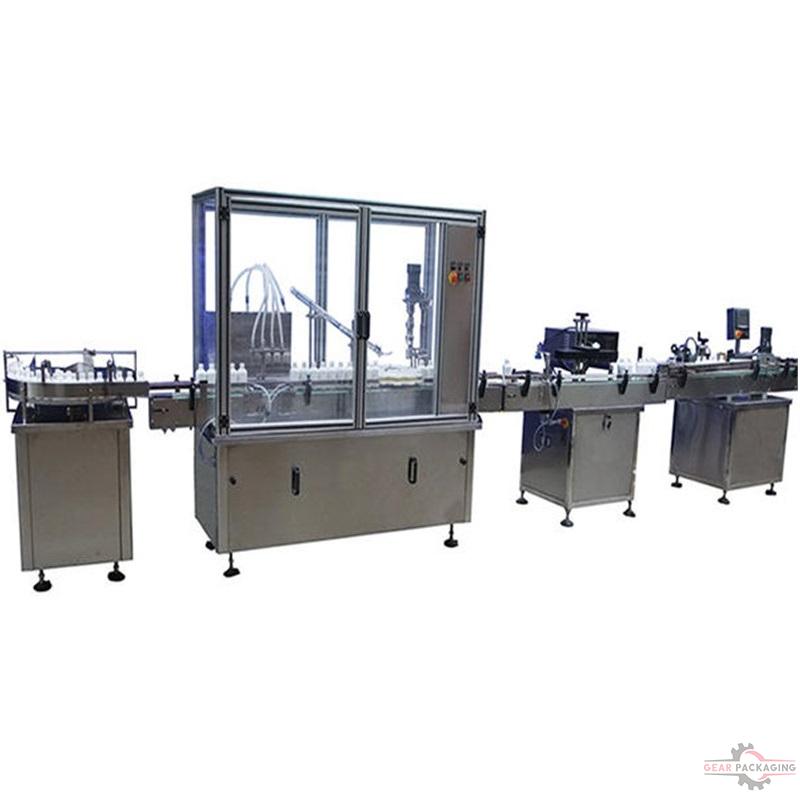

Automatic bottle filling capping labeling machine

Automatic bottle filling capping labeling machine

  • Model:GP-LFB
  • Type:BOTTLE FILLING CAPPING AND LABELING
  • Packaging Type:Bottles
  • Dimension :Full conainer shipping
  • Product description: Automatic bottle filling capping labeling machine
  • INQUIRY


This filling machine is suitable for liquid without carbonated, semifluid qualitative filling. Counting of bottles inlet qualitative filling, bottles outlet is done automatically. Especially suitable for SL, EC, SC, edible oil, lubrication oil. It is an ideal equipment for foodstuff, medical, cosmetic, fine chemical, pesticide industries.

1. It adopts advanced mechanical and electrical integration technology. Any filling specification can easily be done by changing parameters in touch screen. Not only the filling volume of 12 filling heads can be changed substantially, but also each filling head volume can be changed finely.

2. With touch screen technologies, which make operation of machine steadier, convenient, the human machine interface is more friendly. Photoelectric sensor, approaching switch and other elements are using international famous brand. No bottle no filling, the machine can stop automatically and alarm when bottles get blocked.

3. It uses the method of submerging filling; various sealing rings used can meet different characteristics of products requirements.

4. The design and production of this machine is in accordance with GMP standard requirements. Easily dismantle, clean and maintain. The parts which contact filling products are made of high quality stainless steel. The whole machine is safe, environmental, sanitary, adapting to various kinds of working places.

Technical parameter


No. Items Performance
01 Machine dimension (L×W×H) 2000mm×1100mm×2200mm
02 No. of filling head 12
03 Suitable bottle size
Diameter φ40mm~φ100mm
Height 80mm~300mm
04 Diameter of bottle mouth ≥φ18mm
05 Filling range 50ml~1000ml
06 Production capacity ≤ 6000 bottles/hour  (tested by water)
07 Tolerance of filling
50ml ~ 100ml ±1%
100ml~ 500ml ±0.5%
500ml ~ 1000ml ±0.3%
08 Voltage 220V; 50Hz
09 Power 1.5 Kw
10 Air consumption 0.55 - 0.65 Mpa clean and stable compressed air

Quick Details


Type: Filling Machine
Condition: New
Application: Beverage, Chemical, Food, Medical
Packaging Type: Case
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V; 50Hz
Power: 1.5Kw
Place of Origin: Shanghai, China (Mainland)
Brand Name: GP
Dimension(L*W*H): 2000mm*1100mm*2200mm
Weight: 900 Kg
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Main construction: SS304
Liquid contact parts: SS304/SS316L
Filling range: Accept customized
Number of filling nozzles: Accept customized
Power supply: Accept customized
Electrical components: Accept customized
