Form-Fill-Seal

  • Zipper type bag Pre-Made Pouch Packaging Solutions zipper bag pre-made pouch packing machine
Zipper type bag Pre-Made Pouch Packaging Solutions zipper bag pre-made pouch packing machine

Zipper type bag Pre-Made Pouch Packaging Solutions zipper bag pre-made pouch packing machine

  • Model:GP-ZG200B
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Pouch Material:Lamiated Film,PE,PP
  • Product description: Zipper type bag Pre-Made Pouch Packaging Solutions zipper bag pre-made pouch packing machine
  • INQUIRY

Description:

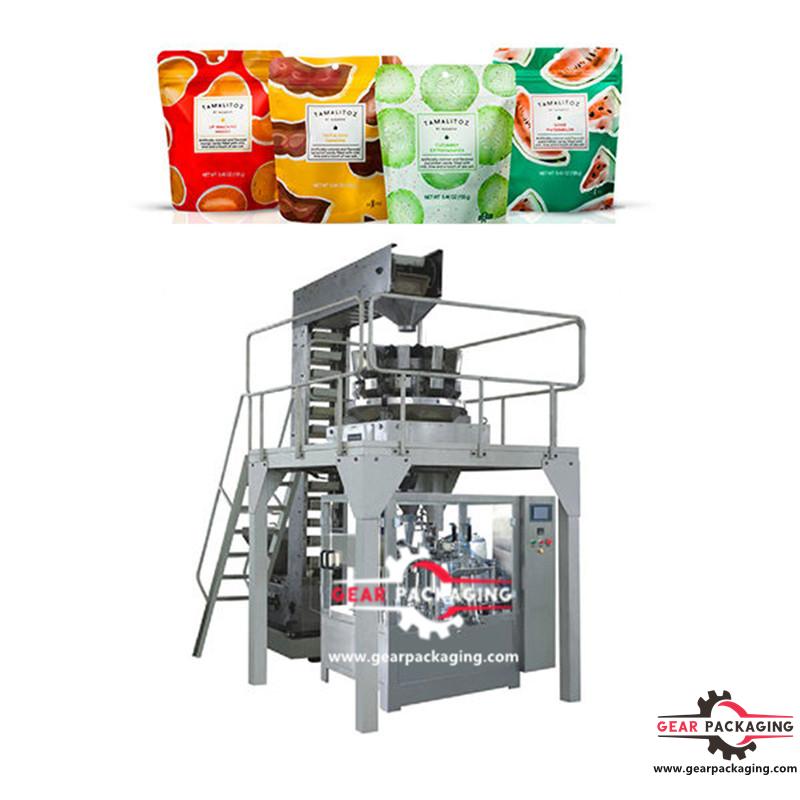

Zipper type bag Pre-Made Pouch Packaging Solutions zipper bag pre-made pouch packing machine

Application


Rotary bag-given packing machine with different dosing (such as multihead weigher,auger filler,liquid filler etc.) can be suitable for the automatic packing for granular,powder,liquid,paste etc.Different kinds of product with the premade stand-up zipper pouch and so on.

Solid: Candy,peanut,green bean,pistachio,brown sugar,cake,daily commodities,cooked food,pickles,
puffed food etc.
Granule:Grain,granular drug,capsule,seed,condiment,granulated sugar,chicken essence,melon seeds,
nuts etc.

Function And Characteristics


  • Easy To Operate:PLC control, man-machine interface.
  • Frequency Conversion Speed Regulation:Using frequency conversion adjustment device, the speed can be adjusted at will in the specified range.
  • Easy to adjust the clip width:Control by motor;Only by a button you can sync control 8 sets of clip.
  • The material level is all made of stainless steel 304 or food-degree plastic according with food hygienic requirement.
  • Open Zipper Mechanism:Design for zipper bag characteristics, high opening rate (invention patent) .

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation

parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

The system show 1: no bag feeding, no filling and no sealing.

2:no bag opening/open error, will no filling and no sealing

3.no filling, will no sealing
6)The packing materials loss low, what this machine is used the preformed bag pattern is prefect and has a

high quality of the sealing part, this improved product specification.
7)Product or packing bag contact parts adopt stainless steel or other materials which accord with the food

hygienic requirements, guarantee hygiene and security of the food.

Product Description


Model GP-ZG200B GP-ZG250B GP-ZG300B
Working Position Eight-Working Position
Pouch Material Lamiated Film,PE,PP
Pouch Pattern Stand-Up Pouch With Zipper
Speed 10-50bag/min 10-40bag/min 10-40bag/min
Gross Weight 2100KG 2500KG 2700KG
Pouch Size L:100-350mm

W:100-210mm

L:150-350mm

W:150-260mm

L:200-450mm

W:200-300mm

Voltage 380V 3phase 50/60HZ
Power 3KW 4KW 4KW
Compress Air 0.6m3/min (Supply By User)
