Volumetric cup dosing filling machine Weigher & Dosing System Automatic Volumetric Filler machine

Model:GP-VC1
Type:Filling Machinery
Packaging Type:Bags
Filling range:200-2000ml (By changing cups)
Product description: Volumetric cup dosing filling machine Weigher & Dosing System Automatic Volumetric Filler machine
INQUIRY

Description:

Weigher & Dosing System Automatic Volumetric Filler volumetric cup dosing filling machine

Application

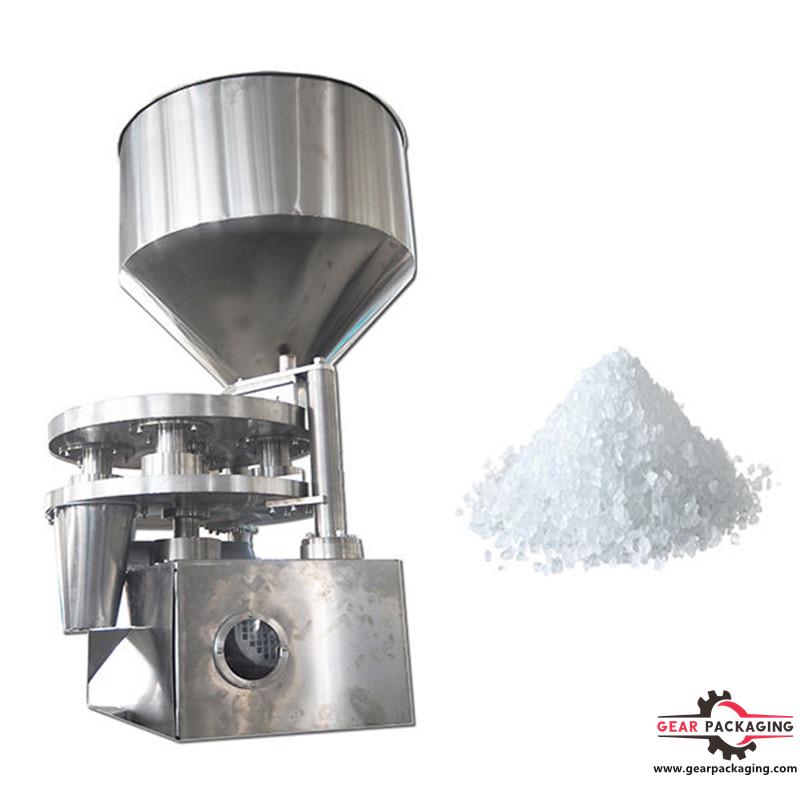

The Volume Cup Filling machine good in measuring and filling free flow granular ,like rice, nuts, dry fruits, plastic piece, etc. It also can be for free flow powder, such as seasoning, fine salts, etc. It can connect with Horizontal Packing machine and Vertical Packing machine (FFS). After adding the Pedal button, it even can work for Pre-made bags / Perform Pouch, Bottles, jars and else containers.

Features

1. Single cup or 4/6 cups can be selected.
2. Machine frame can be Full stainless steel or Painted mild steel.
3. Cup(s) made by stainless steel or Nylon.
4. Cups filling ranges can be adjusted through hand wheel.
5. Regulation capacity of filling range is 1:2.

Technical Data

Model	GP-VC1	GP-VC4	GP-VC6
Cups Qty	Single	4 cups	6 cups
Control parts	Air cylinder & Air	Motor & Transducer	Motor & Transducer
Filling range	200-2000ml (By changing cups)	200-1800ml (By changing cups)	200-2000ml (By changing cups)
Filling speed	5- 40 times/min	5-60 times/min	5-60 times/min
Weight	90Kgs	180Kgs	200kgs
