Secondary packaging production palletizing line

Description:

Secondary packaging production palletizing line

Equipment Introduction

The packaging machinery unit is mainly to complete the packaged pouch products (150-1000 g) required (in the form of arrangement: horizontal double row arranged) neatly into the bag, sewing bag out of the automatic packaging machine process. In order to achieve a small package from the bulk material to a woven bag, full automatic operation, saving manpower, material and financial inputs, to reduce production costs, improve production efficiency, the unit is widely used in washing powder, salt, seeds , milk powder and other powder, granular packaging machine is the first choice for major companies.

Features

10-25kg packaging, with a capacity of 1000 bags/h(according to different bag, raw material)

1. It’s suitable for paper bag, PE bag, woven bag. Paper bag & woven bag can adopts sewing sealing (GP-8C). PE bag adopts hot sealing (GP-22D).(Final decision according to customer’s requirements.)
2. Empty bag putting process detected by detector’s dual-confirmation. Filling process stopping automatically when leakage appears or no bag putting on.
3. Automatic bag feeder consists of horizontal 3 units, each unit can store 100 bags(PE bag), suitable for high speed production.
4. Full automatic running.
5. Additional middle damper in auger hopper (optional), air chute (optional), to prevent product splash, promote the dedusting result.
6. Vibration gas exhaustion device for non pinhole bag is optional, to eliminate the rest air in the product.

Safety & Control Device

1. Bag shortage detector—such as 2 units without bag, then indicator light & buzzer warning--it’s time to supply bags. When 3 units none bag—machine stop automatically.
2. Fault: bag mouth opening detector—bag has been chucked auger head incorrectly, offload the bag, stop the dosing machine by signal. After this problem has been solved, restart the filling process.
3. Stitching broken detector—when sewing machine stitching broken, indicator light on, buzzer sounds, whole machine stopped automatically.
4. String shortage detector—indicator lights on while sewing string shortage. Buzzer sounds—it’s time to supply sewing string.
5. Bag hot seal machine without automatic temperature controller or heating stripe broken detector.

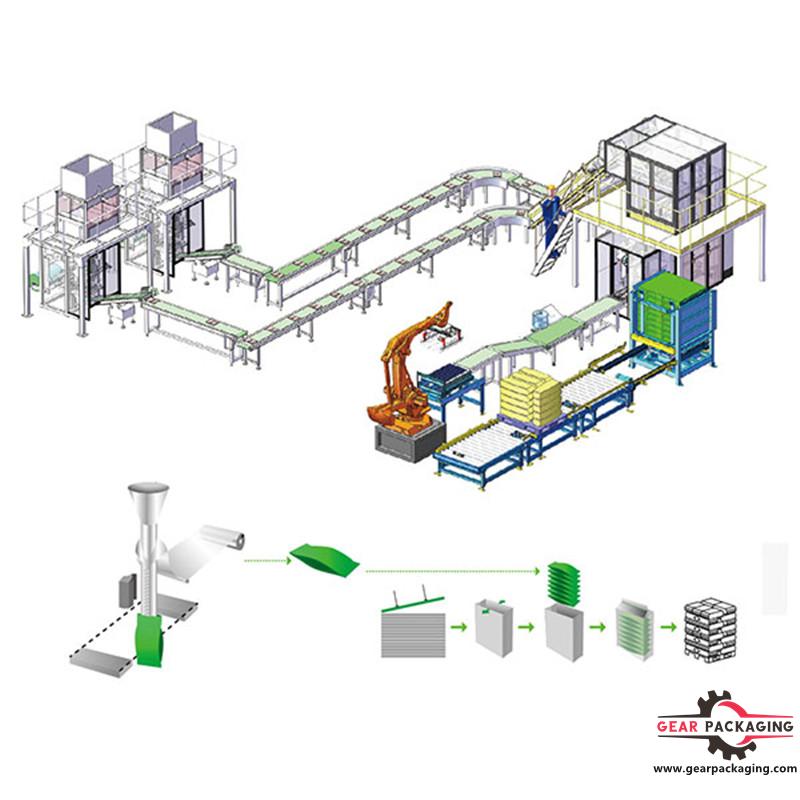

Equipment basically consists of the horizontal conveyor, double inclined conveyor, conveyor speed, counter manager charter, woven bags, automatic packaging machines, sewing machine, the product conveyor，Palletizing robot.

Production process: packaging materials ----to be weighing ----Automatic Vertical bag packaging machine pouch products ----Double standard conveyor speed inclined conveyor conveyor---- count charter management ---- bag automatic packing machine knitting sewing ---- bag output  ----Palletizing
