Form-Fill-Seal

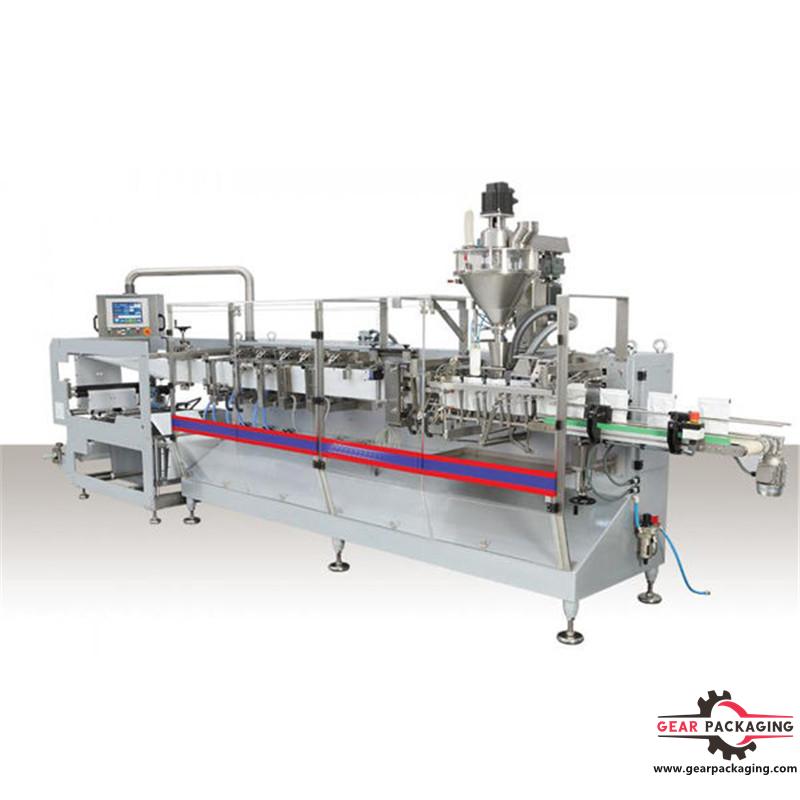

  • Stand up bag H.F.F.S. Pouch Packaging Machine horizontal form fill seal stand up sachet doypack powder packaging machine with discharge conveyor
Stand up bag H.F.F.S. Pouch Packaging Machine horizontal form fill seal stand up sachet doypack powder packaging machine with discharge conveyor

Stand up bag H.F.F.S. Pouch Packaging Machine horizontal form fill seal stand up sachet doypack powder packaging machine with discharge conveyor

  • Model:GP-1600
  • Type:Form Fill Seal
  • Packaging Type:Stand up Bags
  • Dimension:5230×1000×2000mm
  • Product description: Stand up bag H.F.F.S. Pouch Packaging Machine horizontal form fill seal stand up sachet doypack powder packaging machine with discharge conveyor
  • INQUIRY

Description:

H.F.F.S. Pouch Packaging Machine stand up horizontal form fill seal sachet doypack powder packaging machine with discharge conveyor


Application


1.The machine can pack powders, granules, liquids, pastes and so on with the mode of three or four side sealed sachets and doypack . It is the packaging machine in foodstuff, pharmaceutical and cosmetic industry which is your best choice.

2.packers : general stand up pouch , zipper doypack pouch  , spout doypack pouch

3 or 4 side sealing sachet

Features


PLC control , English and man-machine interface, operating easy and simple maintain ;

Advanced photoelectric sensor tracking system and servo motor pull for precise bag width and position of film;

easy and fast adjustment of change over, the machine has strength extensibility, could fill two or even more products into one bag by added filling device .

smooth performance and low noise, perfect package appearance, Sensible safety device and no pollution during production to get Friendly working environment

Technical Parameter


GP-1600
Machine operation HFFS Horizontal form fill and seal
Technology concept Pouch origin Form the reel
Pouch transport system intermittent
Construction Machine frame Stainless steel SUS304/ Carbon steel, the surface plastic coating
Except internal mechanisms Parts painted Stainless steel colour,and Aluminum alloy
Parts in contact with product Stainless steel SUS316L
Reel Reel diameter 600mm
Reel Width 620mm
Reel core 76mm
Filling stations 2 (with 2 heads)
Product production Optional gas flushing (N2) or steam injection
Machine dimensions Length×width×height 5230×1000×2000mm
Machine weight 2000Kg
Pouch dimensions range(mm) Length×width×height Minimum Maximum
FLT-1 70×110 160×250
FLT-2 60+60×110 80+80×250
STU-1 70×110×(22+22) 160×250×(48+48)
STU-2 70+70×110×(22+22) 80+80×250×(32+32)
Packaging speed

(pouches per minute)

And pouch volume

(c.c)

with 3 and 4 side seals Speed maximum(ppm) Volume maximum(c.c.)
FLT-1 90 500
FLT-2 160 80
With doypack STU-1 70 1000
STU-2 120 200
Consumption Electrical 11.0kw
Air consumption 100L/min 0.6Mpa
Electrical Data 200-415V/50-60Hz/N+G
Noise level ≤70dB
Safety CE standards
