Application
-Powder: Wheat flour, soup - (By use auger System)
-Granule: Sugar, Seasoning - (By use Volumetric Measure or Scale)
-Liquid: Detergent, Shampoo, Rinse, Drinks – (By piston pump or rotary Pump)
-Paste: Retort food- (By spiral pump or rotary Pump)
Packing Process
1. Pouch feeding conveyor & pickup the pouch
2. Date coding & Zipper open device (option)
3. Open the bottom of pouch, for self stand pouch
4. Pouch top opening
5. First filling position
6. Second filling position (option)
7. First sealing position
8. Second sealing position (cold seal) and Pouch feed out conveyor
Standard Equipments
-Bag Infeed Conveyor
-Bag opening blade with full opening detector
-P.I.D. temperature controller
-Stainless Steel Construction
-Graphical color touch panel
-Discharge conveyor
Features

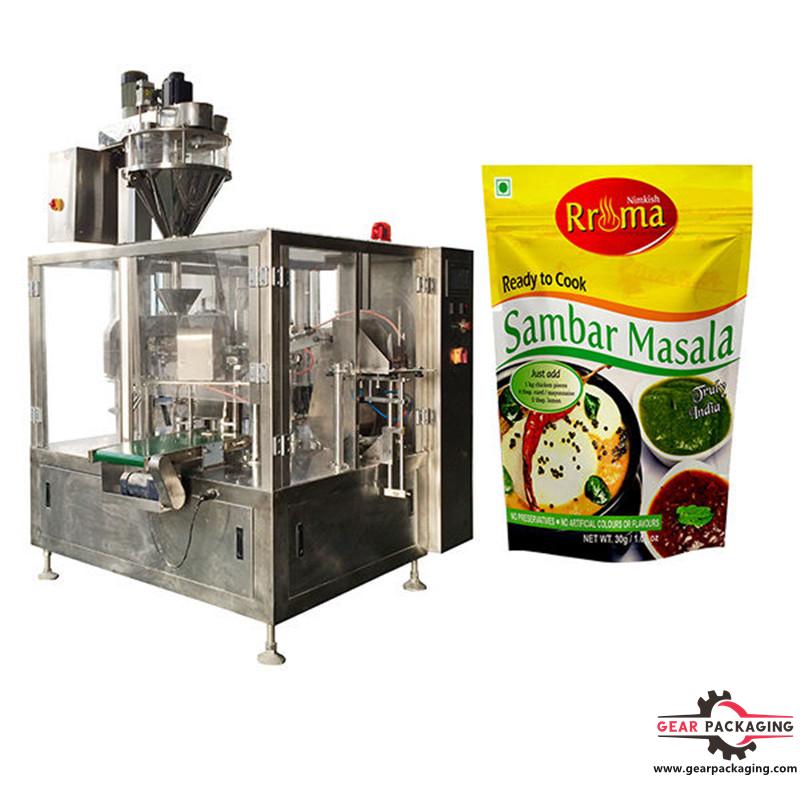

1. Intermittent rotary machine with 8 Stations is designed for handling Pre-made pouches such as Flat and Stand-up Pouches (with / without Zip)
2. Operating and adjusting via TOUCH SCREEN.
3. Fault indication on the TOUCH SCREEN.
4. Hygienic Construction and Easy cleaning.
5. High quality and long life of all machine part.
6. Integration of various filler, such as Auger filler weighting machine, volumetric doser, Liquid doser, Paste doser and other special doser.
7. Simple integration of peripheral equipment.
Optional Equipments
1. Zipper opening and closing device
2. Second filling position
3. Safety-guards with safety-switches
4. Date coder (Ribbon or Embossing or ink-jet type)
5. Deflator
MAIN TECHNICAL PARAMETERS
| Working position | eight-working position |
| Bag material | Laminated film/pe/pp |
| Bag pattern | Stand-up with zipper & spout,stand-up ,flat bag, |
| Max filling weight | 10-5000g |
| Filling accuracy | 0.5-1.5% |
| Bag size | W:100-200mm L:100-350mm (could be customized) |
| Speed | 10-60bags/min |
| Voltage | 380v 3phase 50/60hz |
| Total power | 5.5KW |
| Compress air | 0.6m³/min |
