Form-Fill-Seal

  • Automatic multi lane irregular shaped sachet stick powder packing machine Vertical Forming Filling Sealingy Bag Sachet Packaging Machine

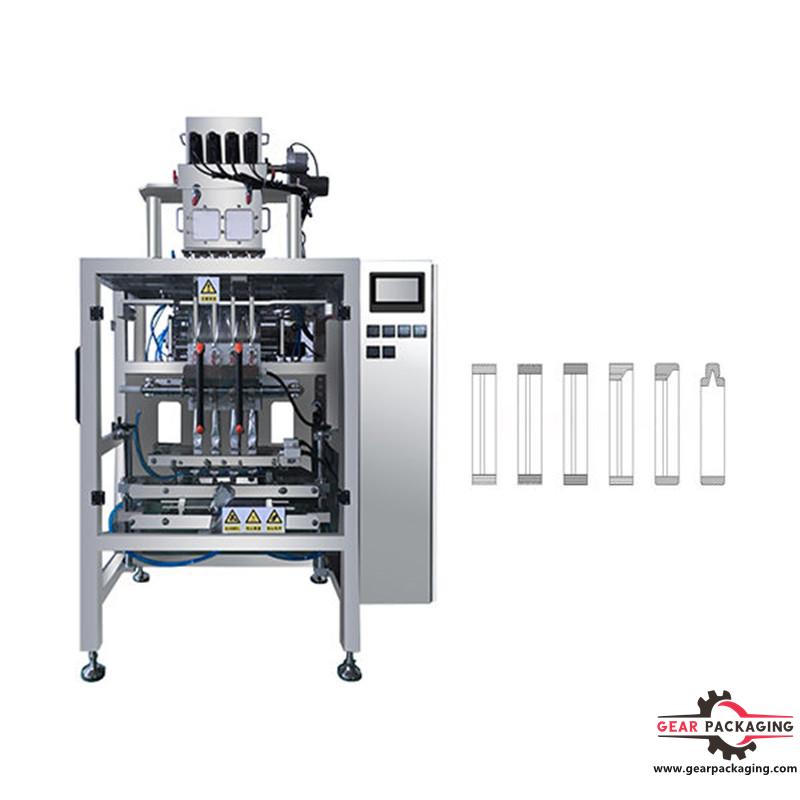

Automatic multi lane irregular shaped sachet stick powder packing machine Vertical Forming Filling Sealingy Bag Sachet Packaging Machine

Automatic multi lane irregular shaped sachet stick powder packing machine Vertical Forming Filling Sealingy Bag Sachet Packaging Machine

  • Model:GP-T4
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Packing Speed:30-50 Bags/Min/Lane
  • Product description: Automatic multi lane irregular shaped sachet stick powder packing machine Vertical Forming Filling Sealingy Bag Sachet Packaging Machine
  • INQUIRY

Description:

Automatic multi lane irregular shaped sachet stick powder packing machine Vertical Forming Filling Sealingy Bag Sachet Packaging Machine


Applications


It is suitable to pack powder materials in the fields of pharmacy industry, food industry and daily industry. Suitable for many kinds of powder products, such as coffee powder, milk powder, spice powder, seasoning powder, etc.

This vffs packing machine is suitable for all kinds of small granules like food;medicine;cosmetic;pesticides;
This machine is designed for the automatic packing of granule materials in food, Pharmacy, Chemicals,such as coffee, pepper granule, bean, drier, vegetable seeds, coffee, milk tea, spices, sugar, salt, herb, tea, seeds, grains, washing powder,legume and so on

Features


Multi lanes machine can produce multi lanes bags at same time.

Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

PLC controller, high function and control the whole machine’s work steps.

Technical Specifications


Model GP-T4L GP-T6L GP-T8L GP-T10L
Lane Number 4 lanes 6 lanes 8 lanes 10 lanes
Bag Width 16-90mm 16-60mm 16-45mm 16-35mm
Bag Length 40-165mm
Packing Speed 30-50 Bags/Min/Lane
Control System PLC + Servo +  Touch Screen
Cutting Type 1.Flat Cutting, 2.Zigzag Cutting, 3.Continuous Cutting,  4.Customized Special Shap Cutting
Optional device Date Coder, Air-filling Device, Tear Notch Device
