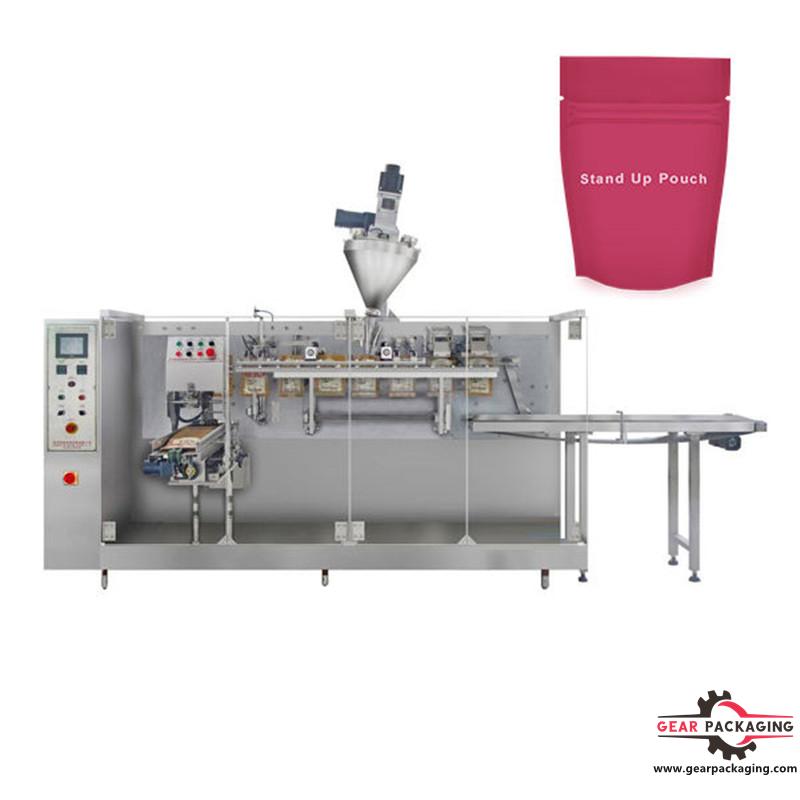

  • Pre-made pouch bag H.F.F.S. Pouch Packaging Machine automatic horizontal pre made pouch zip type bag powder packaging machine
Pre-made pouch bag H.F.F.S. Pouch Packaging Machine automatic horizontal pre made pouch zip type bag powder packaging machine

Pre-made pouch bag H.F.F.S. Pouch Packaging Machine automatic horizontal pre made pouch zip type bag powder packaging machine

  • Model:GP-210
  • Type:Form Fill Seal
  • Packaging Type:pre made pouch zip type bag
  • Dimension: 2700mm* 970mm* 1470mm (L×W×H)
  • Product description: Pre-made pouch bag H.F.F.S. Pouch Packaging Machine automatic horizontal pre made pouch zip type bag powder packaging machine
  • INQUIRY

Description:

H.F.F.S. Pouch Packaging Machine automatic horizontal pre made pouch zip type bag powder packaging machine


Applications


GP-210 Automatic pre-made pouch packaging machine contains pouch- take unit, pouch open unit, inflatable unit, filling unit, top-sealing unit, pitting seal unit and cold seal unit, etc.


Features


  • Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
  • Automatic checking function: no pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
  • Safety device: machine stop at abnormal air pressure, heater disconnection alarm.
  • Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
  • The machine is easy to clean, easy maintenance.
  • The part where touch to the material is made of stainless steel


Technical Data


Main Technical Parameter (If you are interested, please contact us send you the detailed plan)
Speed: 50 pouches per min (100ml water as the medium)
Pouch width: 90- 205mm
Pouch Height: 140 -280mm
Packing volumes: Max. 400 g(varies as per material proportion)
Tolerance: ±1%
Power Source: three phase, AC 380V, 50HZ
Power: 4.5 KW
Weight: about 1800Kg
External Dimension: 2700mm* 970mm* 1470mm (L×W×H)

NO. Allocation Name Origin Brand
1 PLC France Schneider
2 Input Expansion France Schneider
3 Output Expansion France Schneider
4 Touch Screen France Schneider
5 Frequency Converter France Schneider
6 Servo System France Schneider
7 Sensor Japan OPTEX
8 Proximity Switches France Schneider
9 Power Switch France Schneider
10 Pressure Switch Japan SMC
11 Cylinder Taiwan Airtac
12 Solenoid Valve Korea F.TEC
13 Level Controller Taiwan
