  • Drinking straw film cold cutting packing machine single straw cutting piece by piece automatic straw tube packaging system high speed
Drinking straw film cold cutting packing machine single straw cutting piece by piece automatic straw tube packaging system high speed

Drinking straw film cold cutting packing machine single straw cutting piece by piece automatic straw tube packaging system high speed

  • Model:GP-X22
  • Type:Straw Packing Machinery
  • Packaging Type:Straws
  • Dimension:2000×900×1600mm
  • Product description: Drinking straw film cold cutting packing machine single straw cutting piece by piece automatic straw tube packaging system high speed
  • INQUIRY

Description:

Drinking straw film cold cutting packing machine single straw cutting piece by piece automatic straw tube packaging system high speed

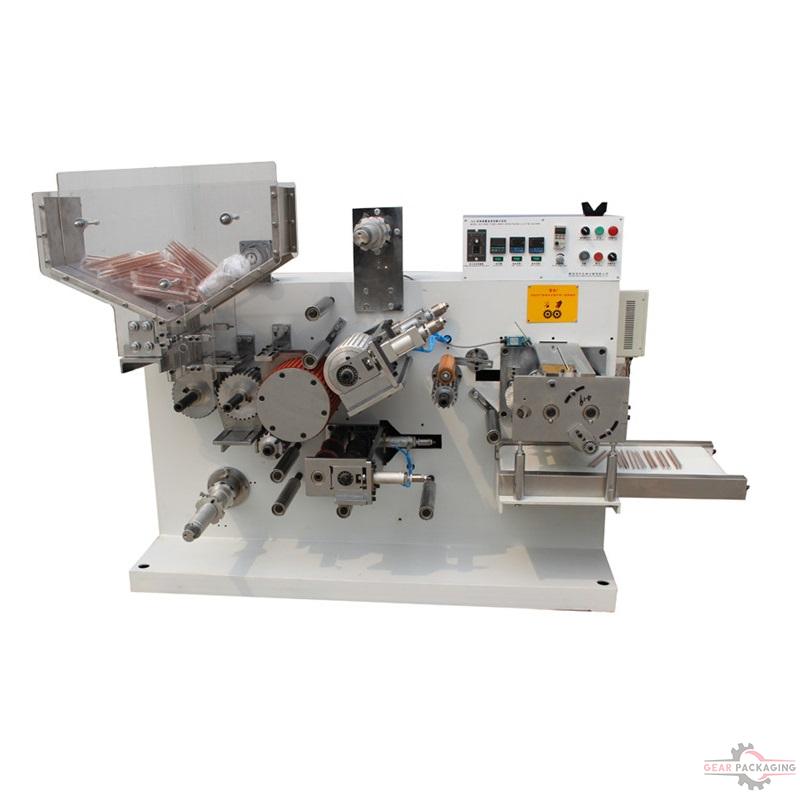

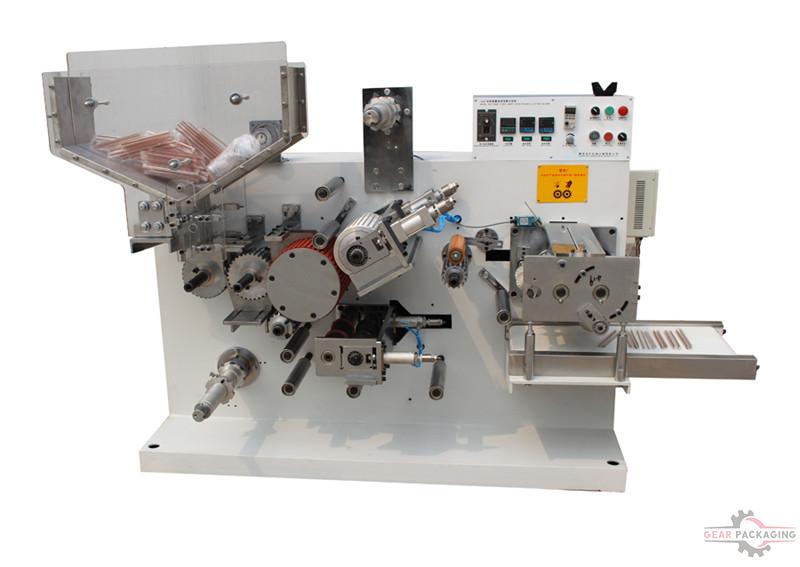

This machine is an equipment for packing straws into bag automatically and cutting single-straw piece by piece.

Characteristic

1. Pack single straw with row. Complete stuffing and packing at a time.

2. Automatic counting and batch alarm.

3. Adjustable packing speed.

4. Automatic stop when lack of straw.

Parameter

Driving Motor

0.75kw control by frequency conventer

Capacity

Straight straws: 600-800 pcs/min

Flexible straws: 350-450 pcs/min

Packing Mothod

Four-sided sealing (serrated). Can be cut to single pcs or 4, 5, 10, 20pcs

Specifications of the Packing Material

Material

Can be hot sealed such as BOPP

Shape

Roll

Roll diameter

Max: 340mm

Internal diameter of paper tubes

75mm

Width of BOPP film

Max: 280mm

Thickness of BOPP film

20μ-30μ

Packing Shape

15mm(pitch)×96~250mm(width)

Straws Specifications

Inner diameter

2.5~7mm

Straw thickness

0.15-0.25mm

Straw length

90-250mm(normal)

Other Specifications Can be customizable

Size (L*W*H)

2000×900×1600mm

Weight

400kg

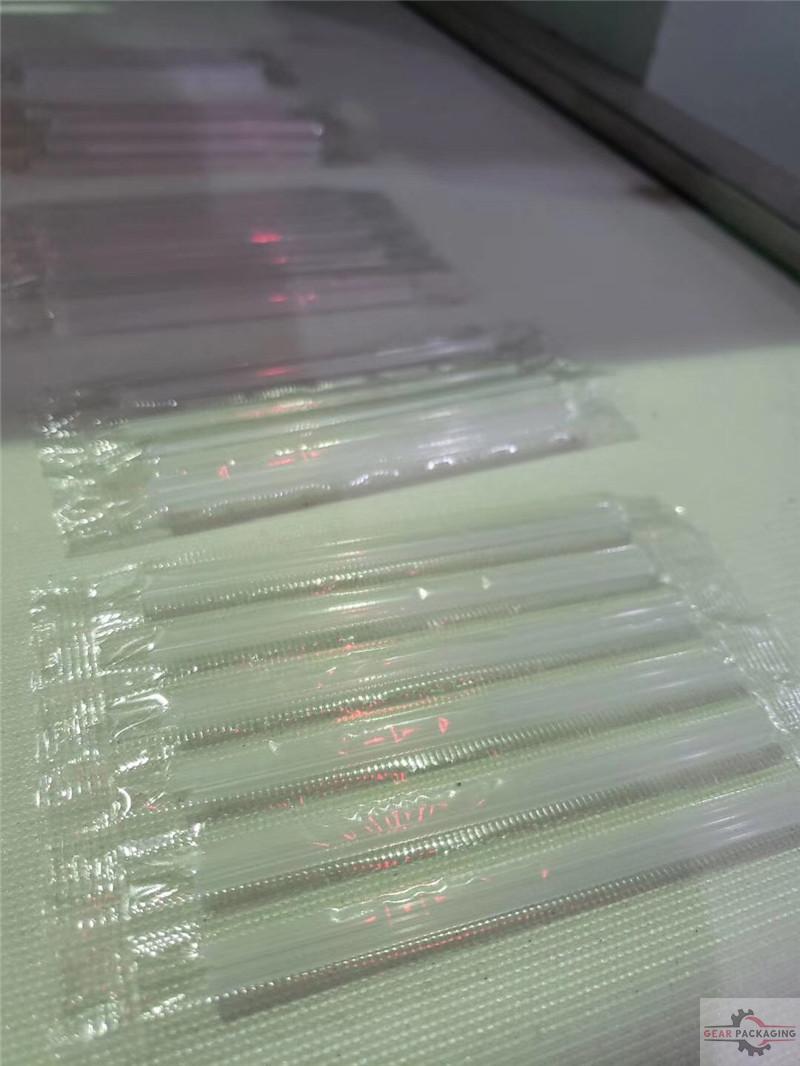

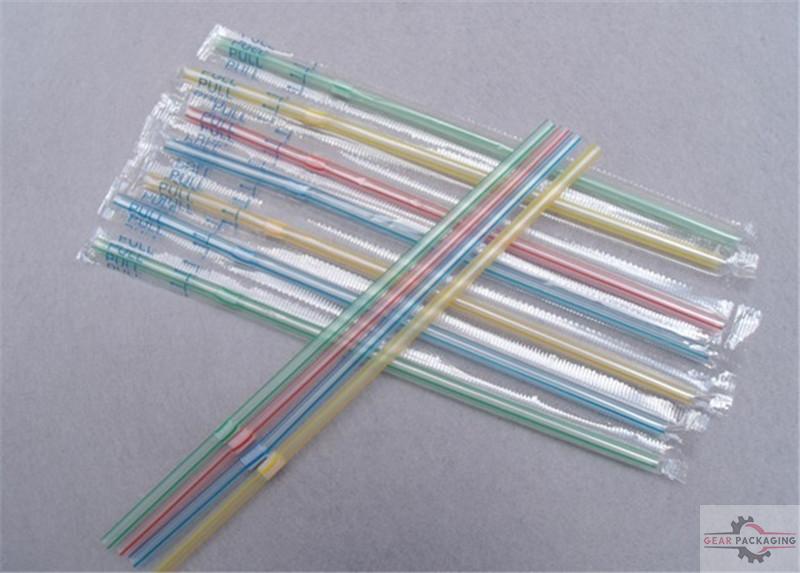

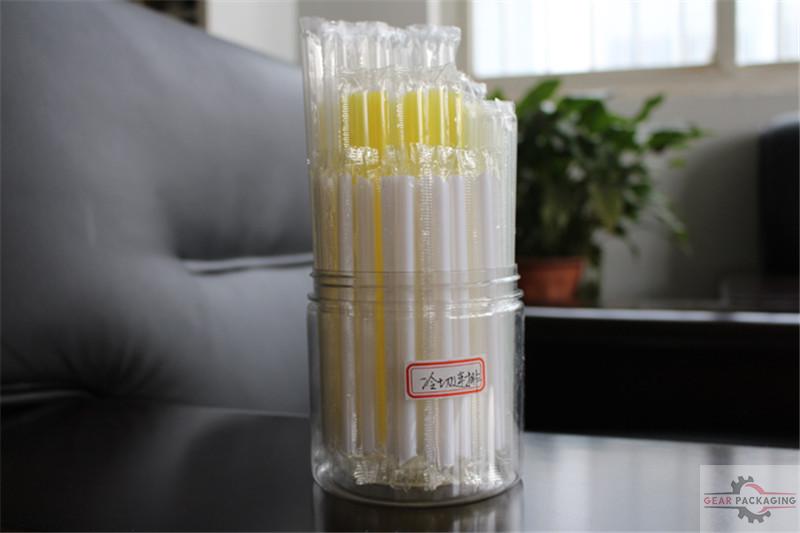

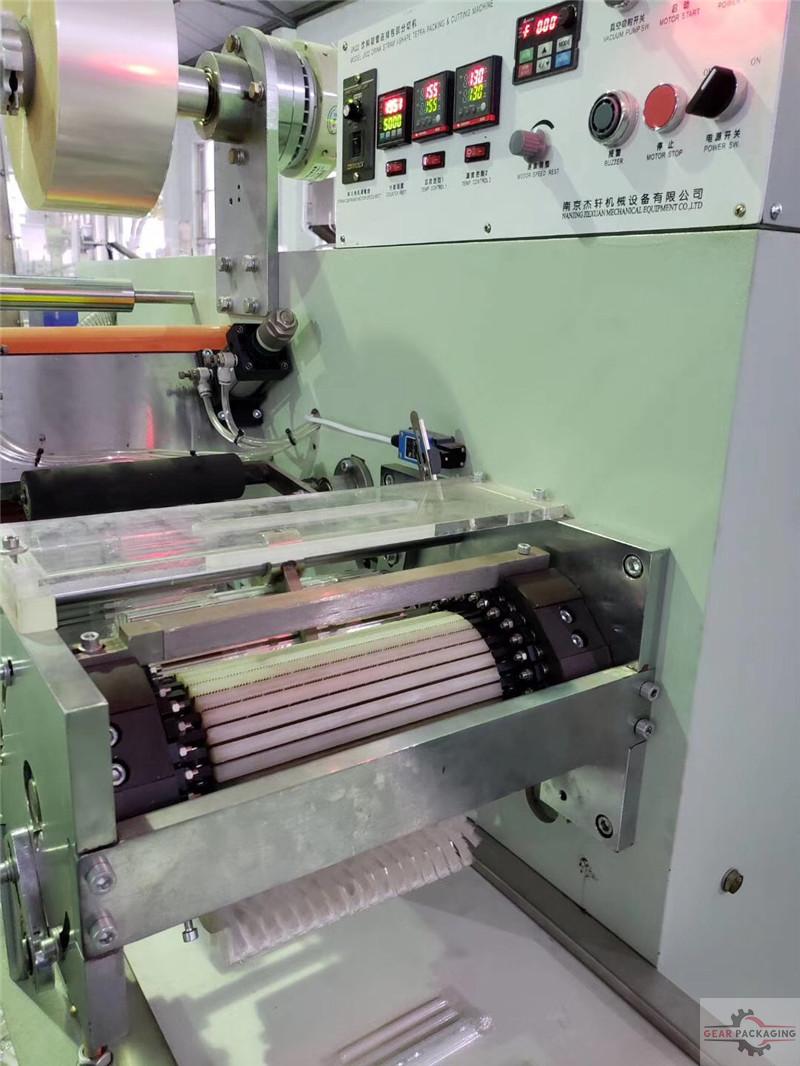

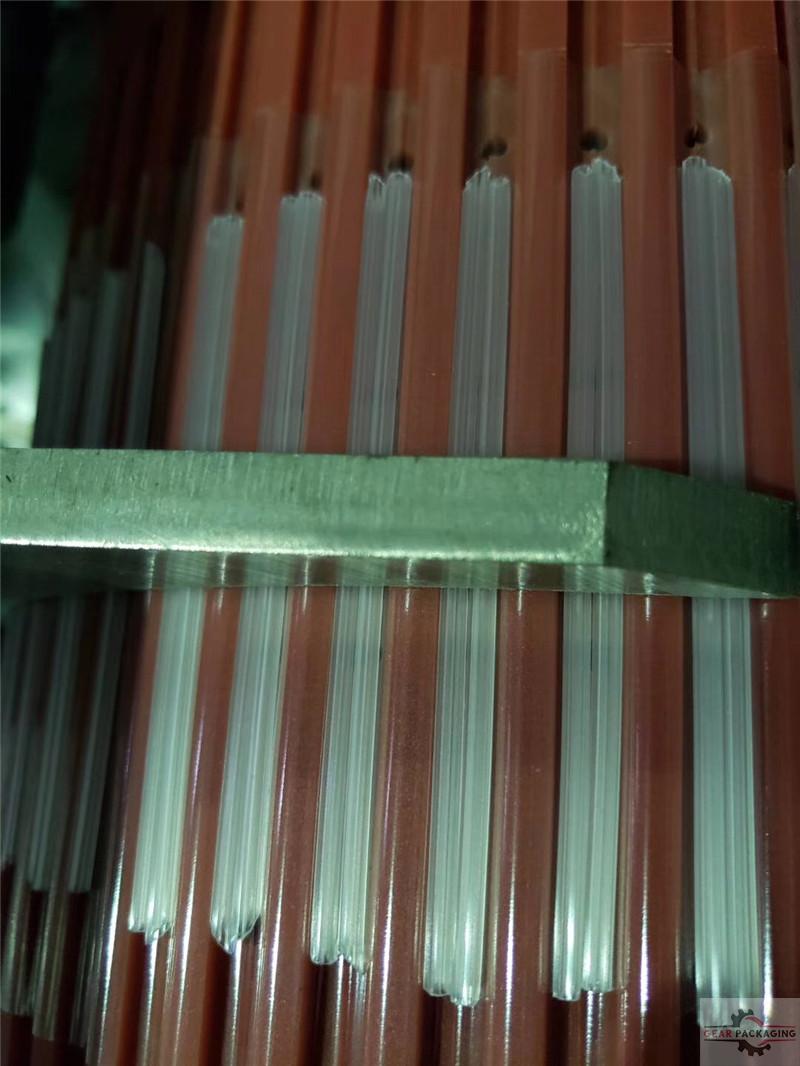

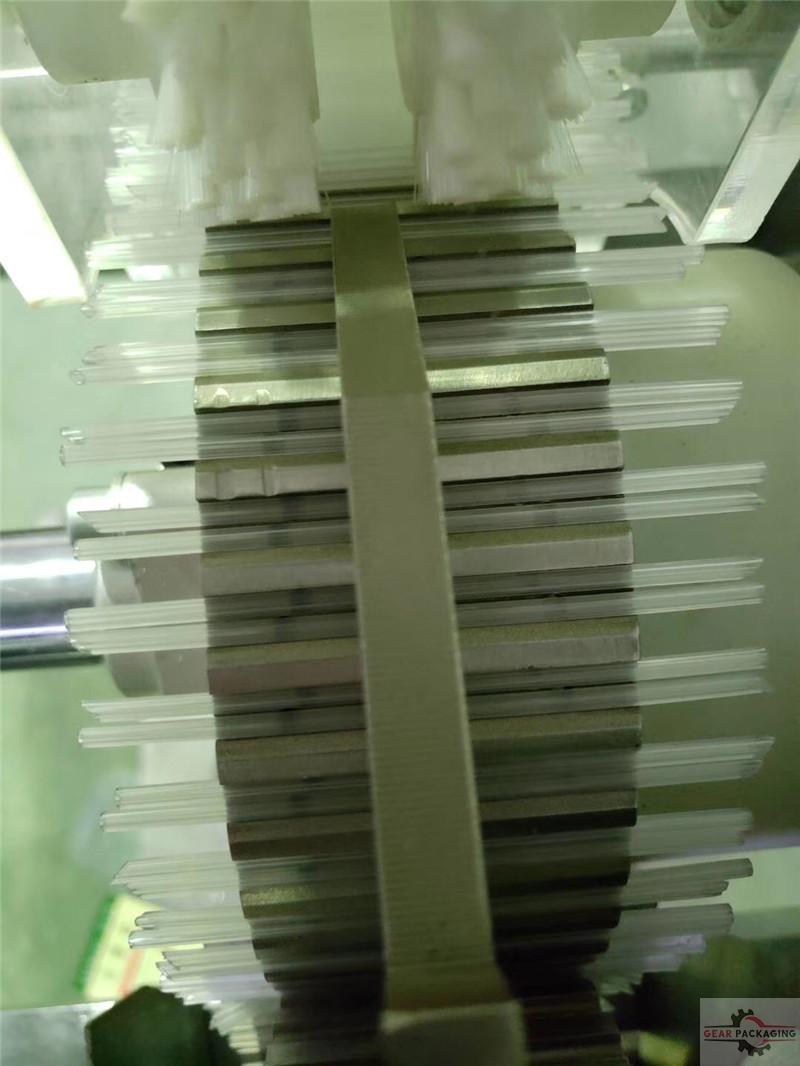

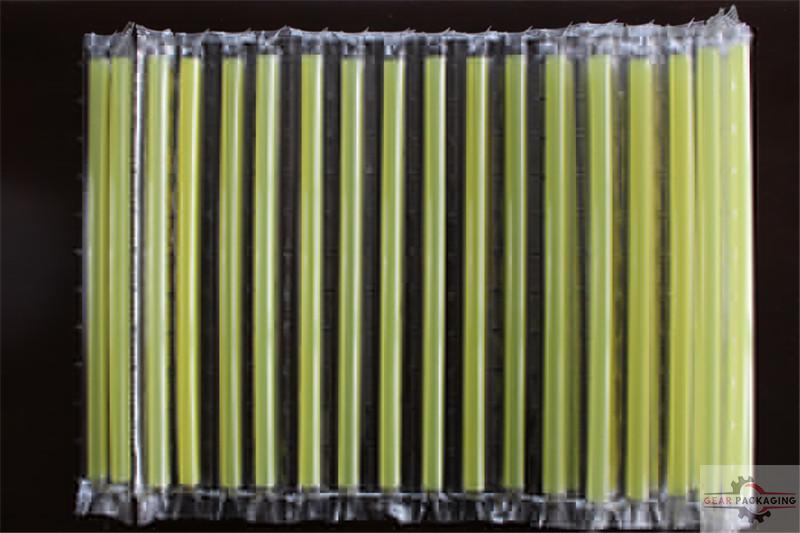

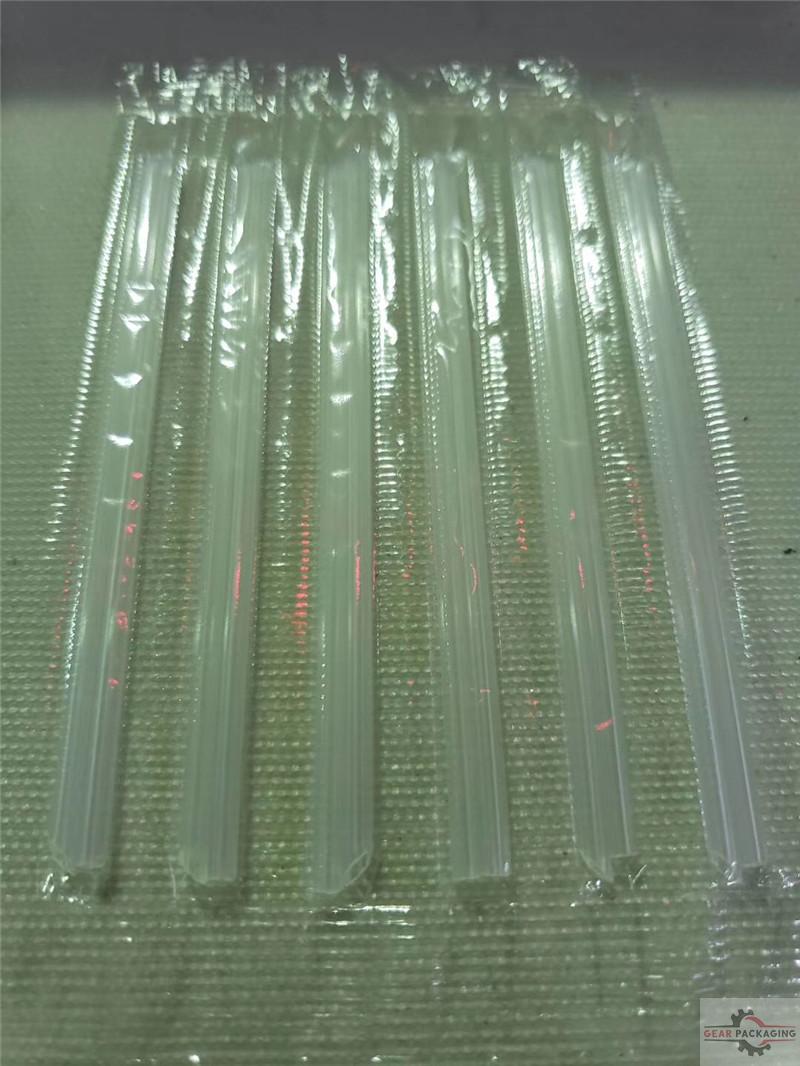

Sample pictures:
