Power auger screw feeding elevator power refill anger feeding system

  • Model:GP series
  • Type:auger screw feeding elevator
  • Packaging Type:Powder materials
  • Discharge Height:2-6m (it’s customized as request)
  • Product description: Power auger screw feeding elevator power refill anger feeding system
  • INQUIRY

Description:

Power auger screw feeding elevator power refill anger feeding system


Product description

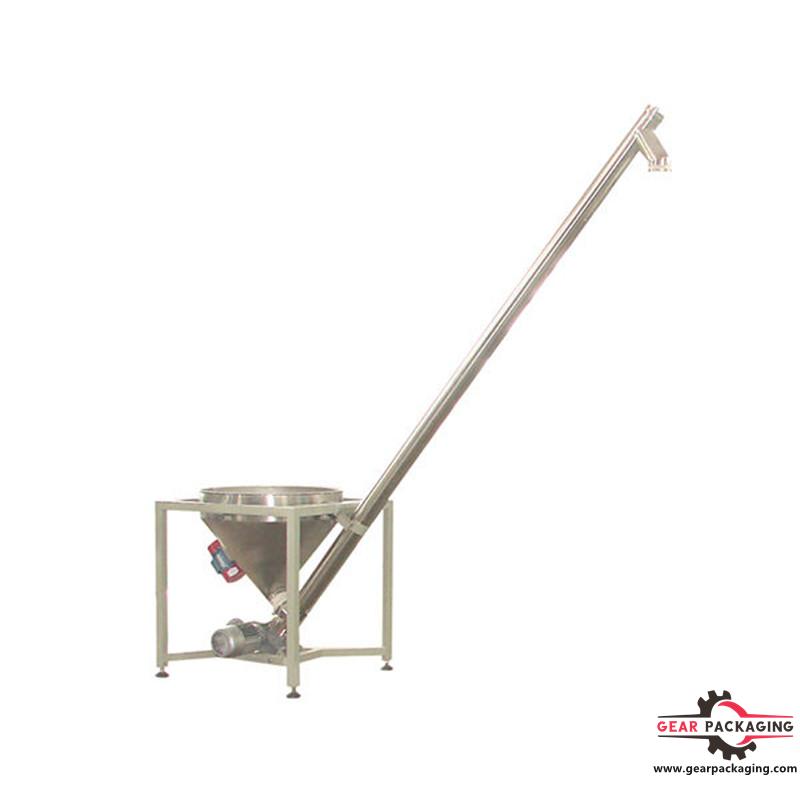

It is a free standing mobile screw elevator with an integral loading hopper. A rotating paddle inside the loading hopper loosens the hopper contents and assists the feed into the tubular screw elevator section. The screw then elevates the material and discharges it into processing or packaging machinery as required.

Screw Elevator’s discharge height, hopper capacity is able to be customized that depending on different powders’ density and detail requests, suitable for flour, milk powder, starch, spices, ground coffee, instant drinks etc powder products’ elevating application.


Technical Data


Discharge Height 2-6m (it’s customized as request)
Hopper Capacity 230L
Elevating capacity 3T/Hr
Voltage 380V/50Hz, 1ph
Power Supply Drive motor 1100w; Vibration motor 68w

Performance and Features


  1. Simple structure, good sealing, large capacity, easy operation, material charging and unloading in multiple spot.
  2. Working temperature is -20~50°C, with material temperature below 200°C.
  3. ISO9001:2008, CE certificate, SGS report.
  4. Alternative conveying trough, including U and tubular shape.
  5. Totally-enclosed structure without causing any environmental pollution.
  6. Construction available in mild steel and stainless steel.
  7. Easy assembly and replacement of component parts.
  8. Easy maintenance and low operating cost.
  9. Multiple inlets and outlets.

Working Principle


Screw Elevator Conveyor for Powder Grain consists of electric motor driven spiral, which is the only moving part, rotates within a food grade & sealed tube.The material moves along the spiral within the tube. The unique action of the flexible spiral conveyor eliminates the risk of the product separation that can take place in conventional pneumatic conveying systems where mixed materials have components of different densities and particle size.
