Other Machinery

  • Wiegh checking machine checkweigher system weiging checking line
Wiegh checking machine checkweigher system weiging checking line

Wiegh checking machine checkweigher system weiging checking line

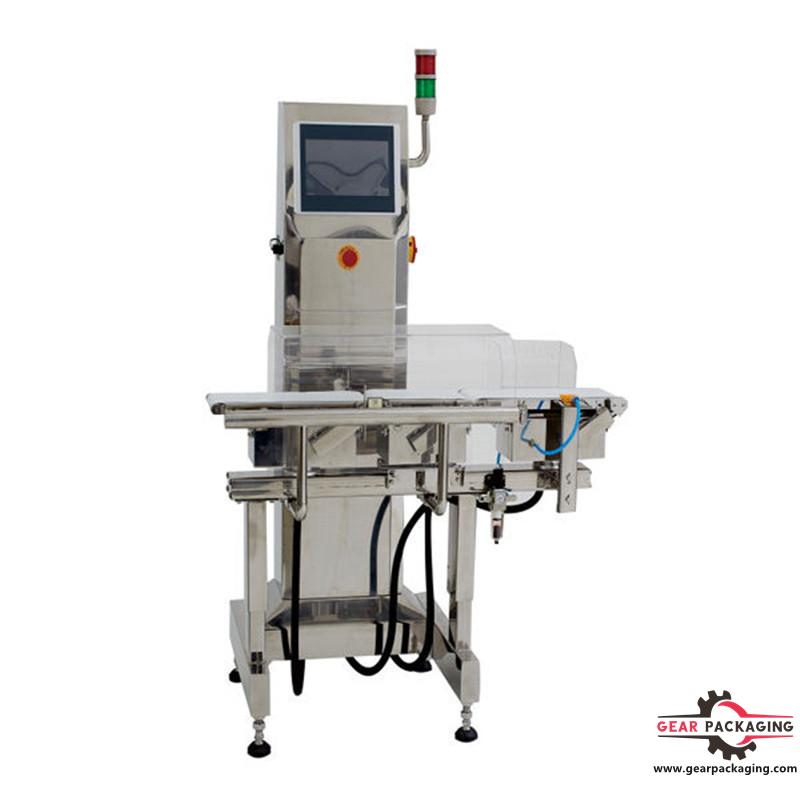

  • Model:GP-160
  • Type:Weigh checker machine
  • Packaging Type:Bottles bags etc.
  • Product description: Wiegh checking machine checkweigher system weiging checking line
  • INQUIRY

Description:

Wiegh checking machine checkweigher system weiging checking line


Applications


ZT Series checkweighers can handle various pack types, including bags, trays and cartons and are suitable for most production environments. Innovative modular design makes the checkweigher easy to clean minimizing downtime. Accurate and reliable, it utilize the latest weighing technology and offer various reject devices best suited to the line configuration.


Features


  • Germany HBM Digital Load Cell
    ●Full color touch screen system, simple intuitive and easy to operate User friendly Touch Screen Controlleroperability.
    ●Conveyor belts are motorized by three units of individual stepper
    ●Auto alarm and belt stop with optional reject mechanism device
    ●Water-proof and dustproof IP30/IP66 optional.
    ●Stainless steel construction, built-in hinge design, easy to clean.


Technical Data


Model ZT-160 ZT-230S ZT-230L ZT-300 ZT-400
Detecting Range (kg) 0.01~0.6 0.02~2 0.02~2 0.02~5 0.2~10
Scale Interval(g) 0.05 0.1 0.2 0.2 1
Accuracy(Зσ) ±0.1g ±0.2g ±0.2g ±0.5g ±1g
Detecting Speed(Max speed, pcs/min) 250 200 155 140 105
Belt Speed 70m/min
Product size W (mm) 150 220 220 290 390
L (mm) 200 250 350 400 500
Weigher platform size W (mm) 160 230 230 300 400
L (mm) 280 350 450 500 650
Operation Screen 7-inch Touch LCD Screen
Product Storage Quantity 100 kinds
Segments Number of Sorting 2 or 3
Rejecter Rejecter Optional
Power Supply; 220V, 1ph or 380V, 3ph
Degree of Protection IP30/IP54/IP66
Body Material Stainless Steel (SUS304)
