End Packaging Line

  • Full Automatic Carton Packing Line

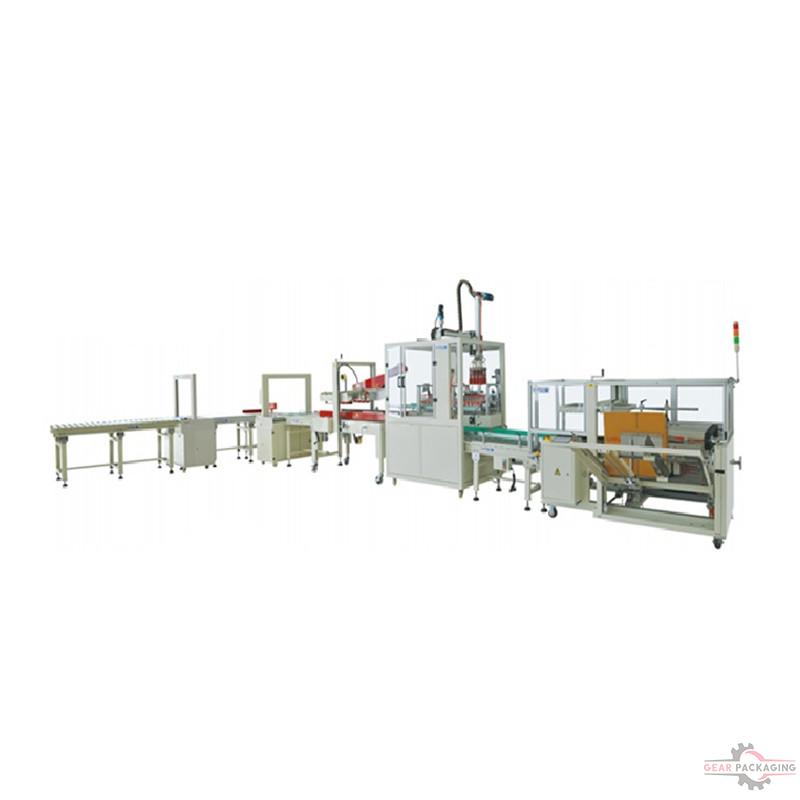

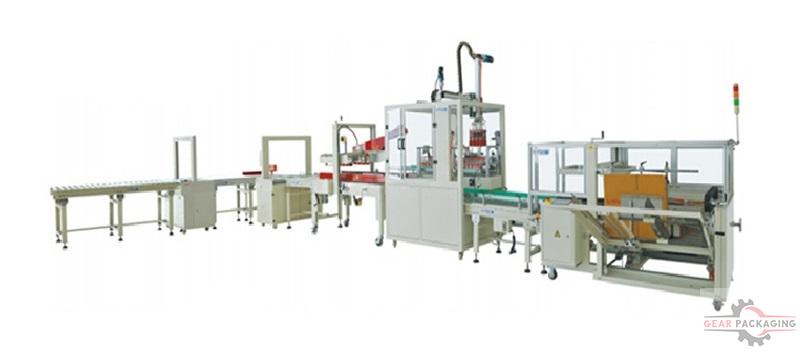

Full Automatic Carton Packing Line

Full Automatic Carton Packing Line

  • Model:GP-CSS01
  • Type:Carton Packing Line
  • Packaging Type:Cartons
  • Dimension :Full conainer shipping
  • Product description: Full Automatic Carton Packing Line


Full Automatic Carton Packing Line

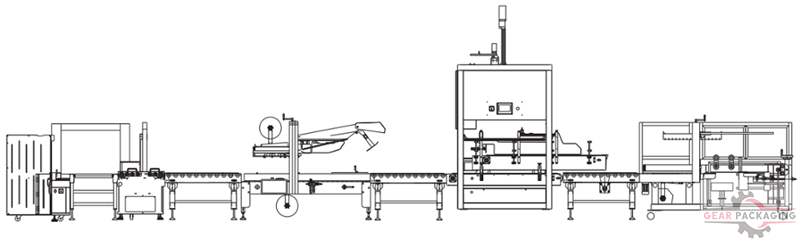

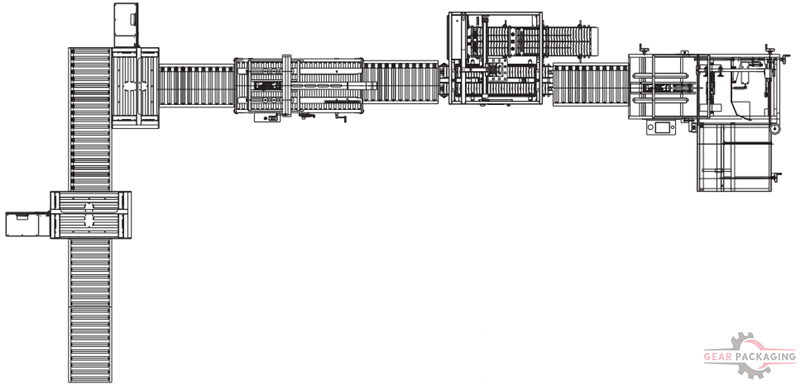

Configuration Options
1.CES4035 Carton Erector & Bottom Sealer
More Longer Motor-drive Roller Conveyor(Optional)
2.RCM/D Motor-drive Roller Conveyor
Automatic Belt-drive Strapping Machine(Optional)
3.AFB Automatic Carton Filler
Automatic Palletizer(Optional)
4.FX-AT5050 Automatic Top Flap Carton Sealer
Automatic Pallet Stretch Wrapping Machine(Optional)
5.AP8060B Automatic Strapping Machine With Belt-drive
6.RC1M/V 90 Degree Push Conveyor
7.RC1M/D Belt-drive Roller Conveyor
8.AP8060C Automatic Strapping Machine
9.RC2M Non-drive Roller Conveyor

Features of Full Automatic carton packing line GP-CSS01

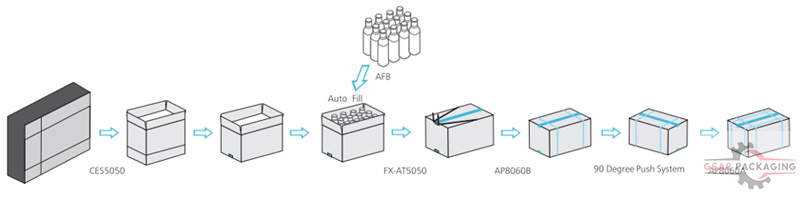

The system consists of carton erector&bottom sealer, automatic carton sealer, automatic strapping machine, 90 degree push conveyor and conveying frame, which has the function of continuous automatic carton open-bottom seal-fill-upper seal and multi-belt strapping, and it not only takes up less room but also reduces the packing cost as well. It is full automatic control and reliable working, convenient operation and simple maintenance while, all machine can be used separately.
