Full automatic Flexible Drinking Straw Bending Machinery Straw neck spring bending equipment elastic type straw making line

Model:GP-X021
Type:Straw bending Machinery
Packaging Type:Straws
Dimension ：1.5m×1.8m×1.6mm
Product description: Full automatic Flexible Drinking Straw Bending Machinery Straw neck spring bending equipment elastic type straw making line
INQUIRY

Description:

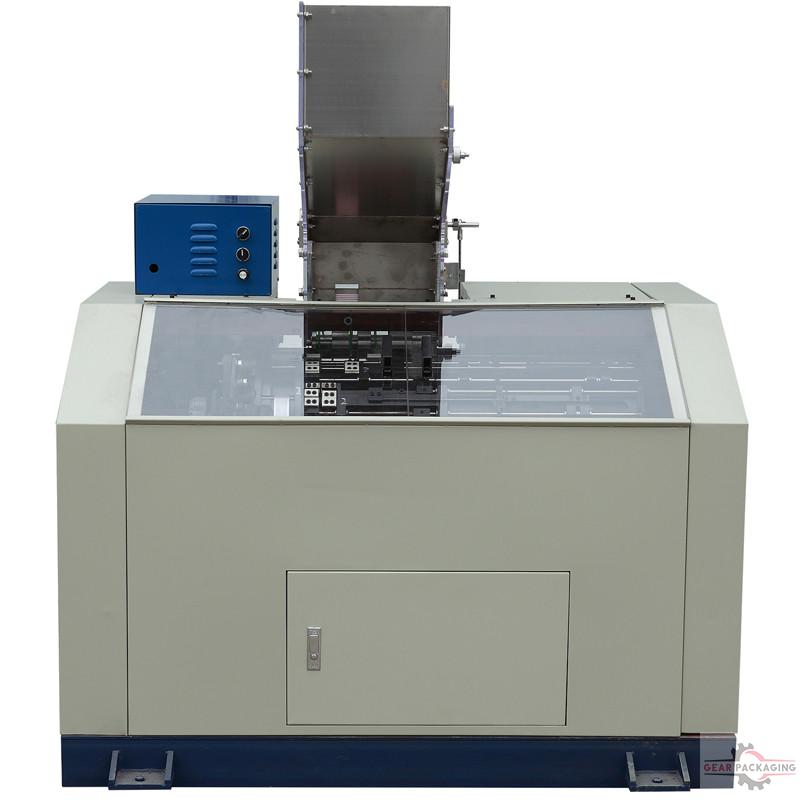

GP-X021 series is a machine used to bending the straight drinking straws into flexible ones. The machine is fully automatic from straight straws to flexible products. Only need one worker to add straight straws. It is mainly composed of hopper, main drum, two rotary dies etc.

Characteristics

1. High production capacity.

2. Automatic counter design, easy to operate.

3. Auto stop when a fault has occurred.

Parameter

Name	GP-X021 Series automatic flexible drinking straw making machine
Main parts	The machine is mainly composed of hopper, feeding equipment, rotary drum, forming equipment, conveyer device and control device.
Power supply		1.5kw (VFD)
Production rate		200~300pcs/min
Specification Of straw	Inside diameter	Φ3.8	Φ4.8	Φ5.8
	Length of straight straw	165~245mm	200~260mm	200~260mm
	Thickness of straw	0.18±0.03	0.15±0.03	0.15±0.03
	Length of flexible straw	150~230mm	185~245mm	185~245mm
	Top section length	30~50mm(adjustable)
	Length of flex. part	8~12mm(adjustable)
Machine dimension L×W×H		1.5m×1.8m×1.6mm
Weight of equipment		1T
