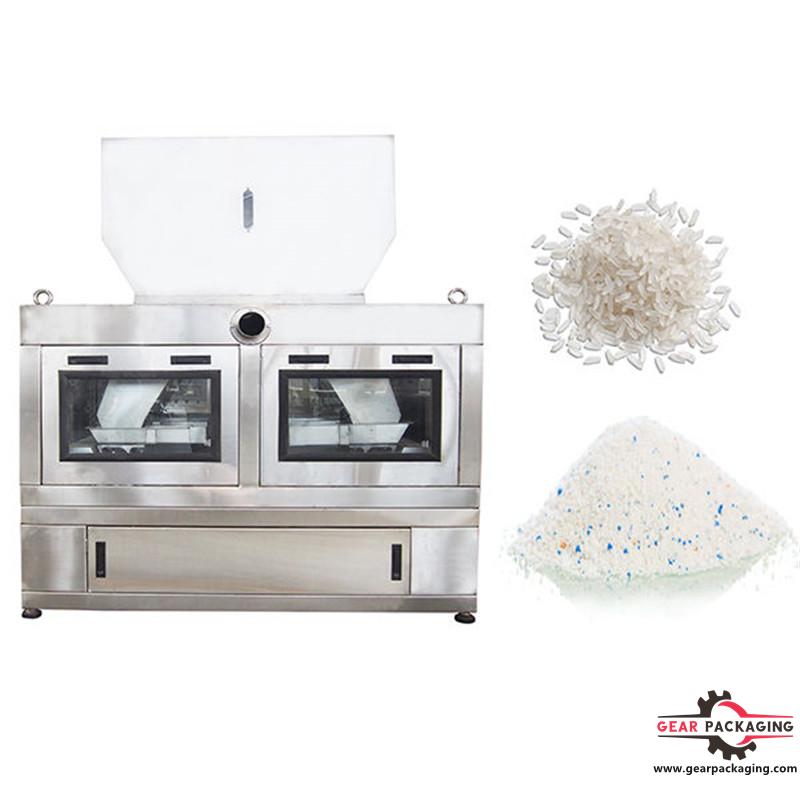

  • 8 head 1.2l high-speed linear weigher Automatic Weigher & Dosing System Bulker Linear Weigher Machine
8 head 1.2l high-speed linear weigher Automatic Weigher & Dosing System Bulker Linear Weigher Machine

8 head 1.2l high-speed linear weigher Automatic Weigher & Dosing System Bulker Linear Weigher Machine

  • GP-DH2
  • Type:Filling Machinery
  • Packaging Type:Bottles Bags
  • Dimension:1,315(L)*1,100(W)*1,458(H)mm
  • Product description: 8 head 1.2l high-speed linear weigher Automatic Weigher & Dosing System Bulker Linear Weigher Machine
  • INQUIRY

Description:

Weigher & Dosing System Bulker Linear Weigher 8 head 1.2l high-speed linear weigher


Applications


Applicable for weighing of granular, powdered or other types of products with uniformed-shape, such as sugar, rice, chicken essence seasoning , seeds, salt, powdered milk, coffee, seasoning, etc.

Features


  1. 7” color touch screen, multi-language option and softwareupgraded through USB.
  2. Machine body with SUS304/316 for option and IP65 dust / waterproof design.
  3. Factory parameter recovery function, able to preset 99 product parameters to meet a wide range of customers’ needs.
  4. Automatic amplitude adjustment for more convenient operation.
  5. Each hopper can function as a single scale.
  6. Achieving blended weighing and packaging for 8 types of products
  7. Optional single/double discharge timing hopper. Connecting with one or two packaging machines or double-row packaging machine to achieve high-speed weighing and packaging.
  8. Hopper door opening driven by step motor to make the operation faster and more stable.
  9. Modular control system for easy maintenance and low cost.

Technical Data


Max. Weighing (one hopper) 300g
Accuracy x (0.5)
Max. Scale Interval 0.1g
Max. Speed 170 WPM
No. of Weighing Hopper 8
Hopper Volume 0.5L / 1.2L
Control System MCU
HMI 7’’ color touch screen
Power Supply AC220V ±10% 50HZ/60HZ, 1.6KW
Machine Dimension 1,120(L)*736(W)* 1,130(H)mm
Packing Dimension 1,315(L)*1,100(W)*1,458(H)mm
Net Weight 215kg
Gross Weight 315kg
