Form-Fill-Seal

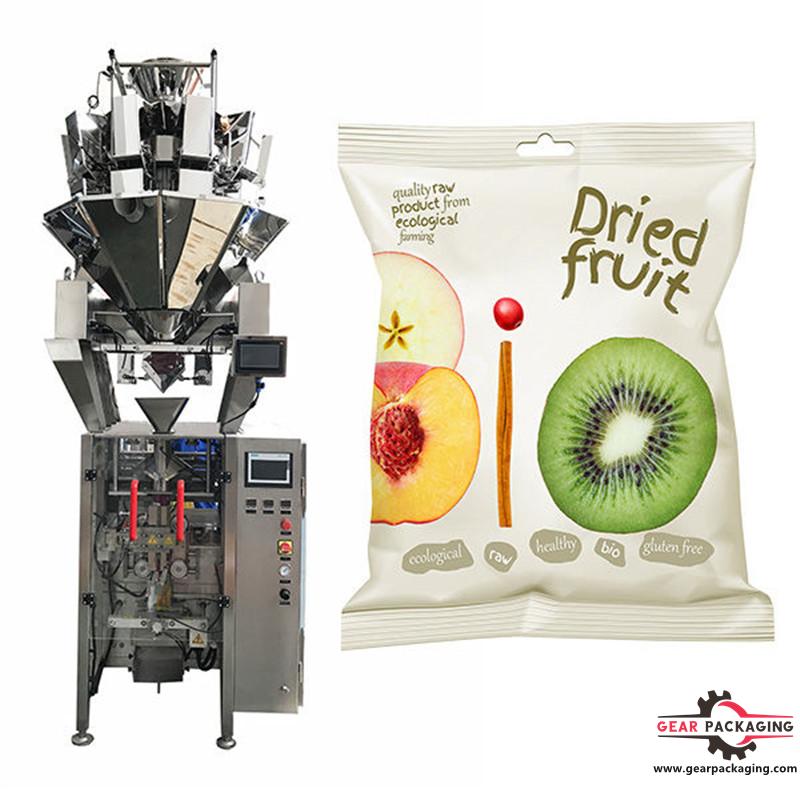

50g dried fruit packaging machine V.F.F.S. Bagger Complete Systems

GP-F730
Type:Form Fill Seal
Packaging Type:Bags
Bag Material:Laminated film; Mono PE film
Product description: 50g dried fruit packaging machine V.F.F.S. Bagger Complete Systems
INQUIRY

Description:

Applications

It is suitable to pack different kinds of products: dried fruit,puffy food, shrimp roll, peanut, popcorn, cormeal, seeds, sugar, hardwares and etc., which is in roll, slice and granule forms

Features

High-speed capabilities up to 80 packs per min
Adjustable capacity from 50-250ml; 250-500ml, 500-1000ml is optional
Accuracy 0.2 to 2g
Omron controls as standard
User-friendly interface
Film track by photo-electric eye & encoder
Servo driven for film transport
Stainless steel systems
Small footprint, Compact, robust and long-life construction
Customized to meet your production, package style and econoic requirements

Optional Device

Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.

Technical Specifications

Model	GP-F730
Weighing Range	10-5000 grams
Bag Size	120-400mm(L) ; 120-400mm(W)
Bag Style	Pillow Bag; Gusset Bag; Four side seal
Bag Material	Laminated film; Mono PE film
Film Thickness	0.04-0.09mm
Speed	20-100 bags/min
Accuracy	+ 0.1-1.5 grams
Weigh Bucket	1.6L or 2.5L
Control Penal	7" or 10.4" Touch Screen
Air Consumption	0.8Mps 0.4m3/min
Power Supply	220V/50HZ or 60HZ; 18A; 3500W
Driving System	Stepper Motor for scale; Servo Motor for bagging

Multi-head Combination Weigher

MCU Control, 10heads, 1.6L hopper

1. Select the best combination immediately from diversified weight combination through computer
with perfect combination of high precision and high speed.
2. High precision data-type weighing sensor realizes precise weighing.
3. Liquid crystal screen operating system in multiple languages such as Chinese and English,etc.
4. IP65 grade water-proof and dust-proof design . It’s clear and sanitary with all stainless still parts. Full sealed design prevents accumulation of material and facilitates cleaning.
5. It can fine the opening and closing speed of hopper door according to the feather of items to be
weighed , and prevent crushing and blocking of material .
6. With powerful digital automatic counting function. It can record the index for each batch such as
total bag number , pass rate and difference of single bag, etc.
7. Optional devices: trigliyph balance ball, suction hopper, printing device, tolerance sorting
device.
8. All kind of grain material, sheet material and abnormity material, such as candy, melon seeds,
chips, peanuts, nutlet, preserved fruit, jelly, biscuit, confect, comper foodstuff, dilatant foodstuff,
hardware.

Additional Info

Weighing Range:10‐1000g
Accuracy:±0.5‐1.5g
Weighing Speed:Max. 65 Drops/Min
Hopper Volume:1.6L
Driver:Step Motor
Options:Timing Dipper, Printer, Diverter Device, Rotary Top Cone
Control Panel:10.4 inches large touch screen
Power Requirements:220V,50/60HZ,10A,1KW
Machine Weight:380KG
Packing Dimension:L1620 X W1100 X H1100MM
