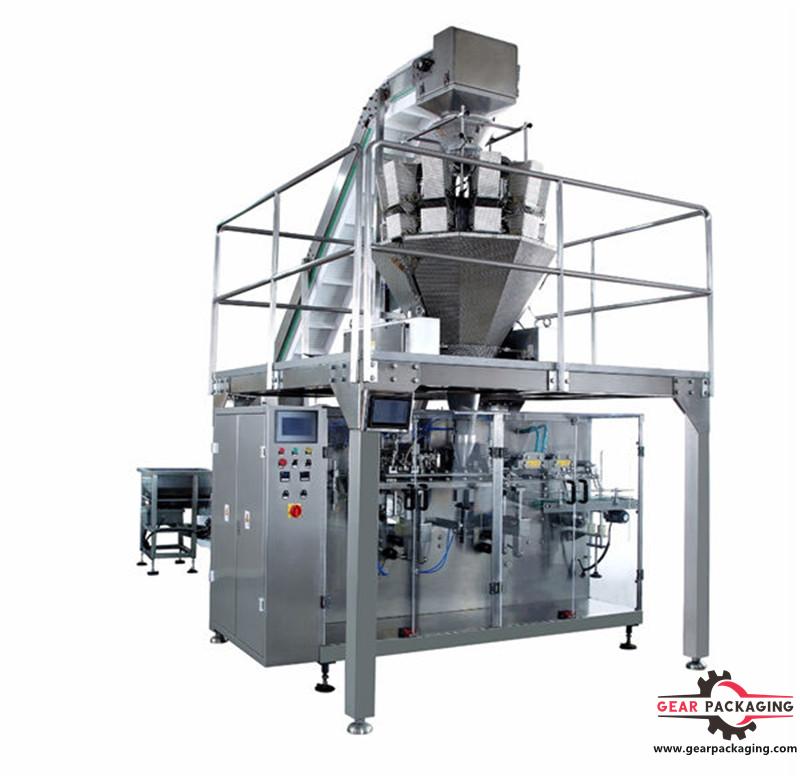

H.F.F.S. Pouch Packaging Machine automatic horizontal pre-made bag packing machine
The equipment is mainly used in automatic particle counting packages. Through the material delivered to the automatic measurement device of hoist, after the accurate measurement based on the specified parameters, to the level to the Rotary packing machines for automatic bagging and sealing, output. The whole automatic control of equipment saved resources, increased productivity.
Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
Automatic checking function: no pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
Safety device: machine stop at abnormal air pressure, heater disconnection alarm.
The machine is easy to clean, easy maintenance.
The part where touch to the material is made of stainless steel
Multi-use of one machine ---separating feeding,to satisfy a variety of materials packaging requirements(powder,liquid,paste,solid,)
Multi-bag of one machine---after simple adjustment, a packaging machine may meet the packaging needs of a variety of bags.(such as three-side-seal, four-side-seal, doy pack, zipper, spout)
Multi-material of one bag---multi-position blanking way, to overcome the disadvantages of packaging machine filling a single item in the past, the packaging machine is mixed to achieve a variety of materials packaging, to meet the ratio correctly.(such as oil, water, mixing materials)
Reduce costs---used roll firm packing, reduce the bag cost. So a horizontal= bagging machine + packaging machines.
Stable operation---using cam drive, purely mechanical movements, and the structure is sample.
Easy to maintain---simple mechanical structure, large space, easy to maintain.
Low failure rate---very few control components and detection device, avoid electronic failure. Purely mechanical construction reduces the failed node.
perfect skin—- Guaranteed by the unique, advanced and mature technology, product bags flat in appearance and the seal does not clamp the material did not leak.
reducing loss—- Packaging to ensure high precision, reducing material consumption.
|1. Packaging material||Laminated film,PE,PP etc|
|2. Speed||30-70 bag/min|
|3. Packaging accuracy||within±1.5%|
|4. Pouch width||95mm-205mm/90mm-235mm(supply by user)|
|5. Pouch height||100mm-350mm(supply by user)|
|6. Max volume||2500ml|
|7. Electricity consumption||4Kw|
|8. Air Consumption||0.6m³/min|
|9. Voltage||3phase 380V 3phase 220V 3phase 415V 50-60HZ|
