Form-Fill-Seal

  •  V.F.F.S. Bagger Complete Systems » automatic quad seal bag packaging machine volumetric cup filling machine
 V.F.F.S. Bagger Complete Systems » automatic quad seal bag packaging machine volumetric cup filling machine

V.F.F.S. Bagger Complete Systems » automatic quad seal bag packaging machine volumetric cup filling machine

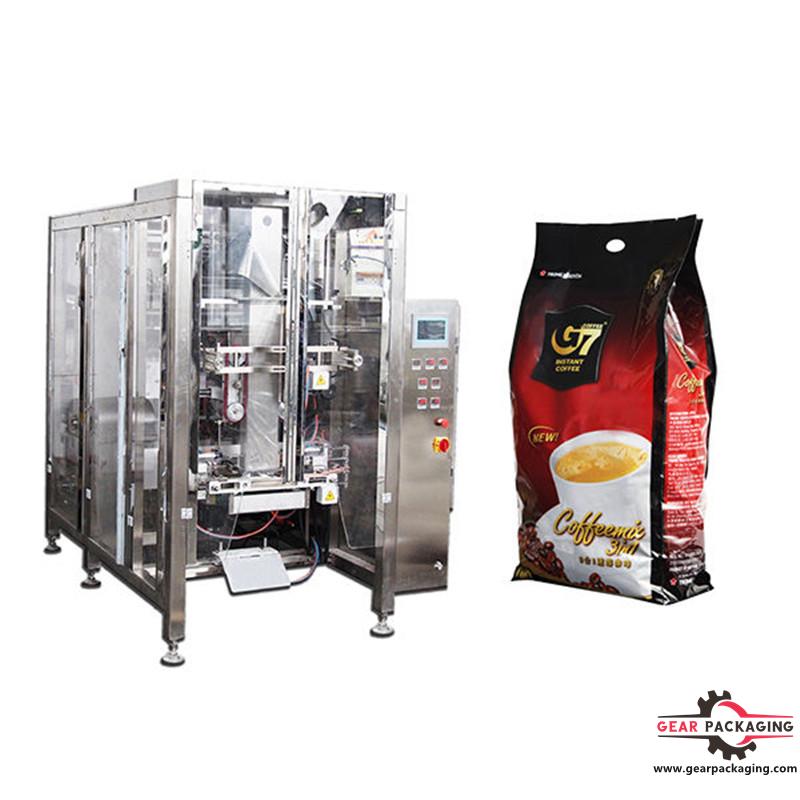

  • Model:GP-420
  • Type:Form-Fill-Seal Machinery
  • Packaging Type:Bags
  • Dimension:(L)1170mm×(w)1500mm×(H)1650mm
  • Product description: V.F.F.S. Bagger Complete Systems » automatic quad seal bag packaging machine volumetric cup filling machine
  • INQUIRY

Description:

V.F.F.S. Bagger Complete Systems » automatic quad seal bag packaging machine volumetric cup filling machine


Applications


  • For materials requiring high accuracy of measurement or careful handling, e.g. puffed food, screw, or noodles.
  • Various bag types are available, e.g. pouch, stand-up bag, back-sealing bag, 3 or 4 sides sealing bag, linking bags,etc


Features


  • Computer control and English-Chinese touch screen for easy operation without stopping the unit.
  • Intelligent PID temperature controller for easy adjustment and good application to various laminated film and paper.
  • Packaging diversification, such as back-seal bag, side gusseted bag, linked bag, hole punched bag etc.
  • Full automation from bag making, measuring, filling, sealing, counting and date printing.
  • Multi-heads scale filling system for filling accuracy and good application to various kinds of products.

Technical Specifications


Model GP-420
Bag length 60-300mm(L)
Bag width 80-200mm(W)
Film width 420mm
Packing material OPP/CPP,OPP/PE,PET/LLDPE
Film thickness 0.04-0.20mm
Packing speed 5-60bag/min
Measurement range 30-1500g
Pressure 0.65Mpa
Gas consumption 0.65Mpa 0.3m³/min
Voltage 220V/60Hz single/3 phase
Power 2.2KW
Main machine size (L)1170mm×(w)1500mm×(H)1650mm
Main machine weight About 450kg

Automatic Volumetric Cup Filling Machine


Application:
The Volume Cup Filling machine good in measuring and filling free flow granular ,like rice, nuts, dry fruits, plastic piece, etc. It also can be for free flow powder, such as seasoning, fine salts, etc. It can connect with Horizontal Packing machine and Vertical Packing machine (VFFS). After adding the Pedal button, it even can work for Pre-made bags / Perform Pouch, Bottles, jars and else containers.

Features:
1. Single cup or 4/6 cups can be selected.
2. Machine frame can be Full stainless steel or Painted mild steel.
3. Cup(s) made by stainless steel or Nylon.
4. Cups filling ranges can be adjusted through hand wheel.
5. Regulation capacity of filling range is 1:2.
