Form-Fill-Seal

  • Vertical Packaging Machine V.F.F.S. Bagger Complete Systems nuts vertical packing machine
Vertical Packaging Machine V.F.F.S. Bagger Complete Systems nuts vertical packing machine

Vertical Packaging Machine V.F.F.S. Bagger Complete Systems nuts vertical packing machine

  • Model:GP-420A
  • Type:V.F.F.S
  • Packaging Type:Bags
  • Dimension: (L)1217* (W)1015*(H)1343
  • Product description: Vertical Packaging Machine V.F.F.S. Bagger Complete Systems nuts vertical packing machine
  • INQUIRY

Description:

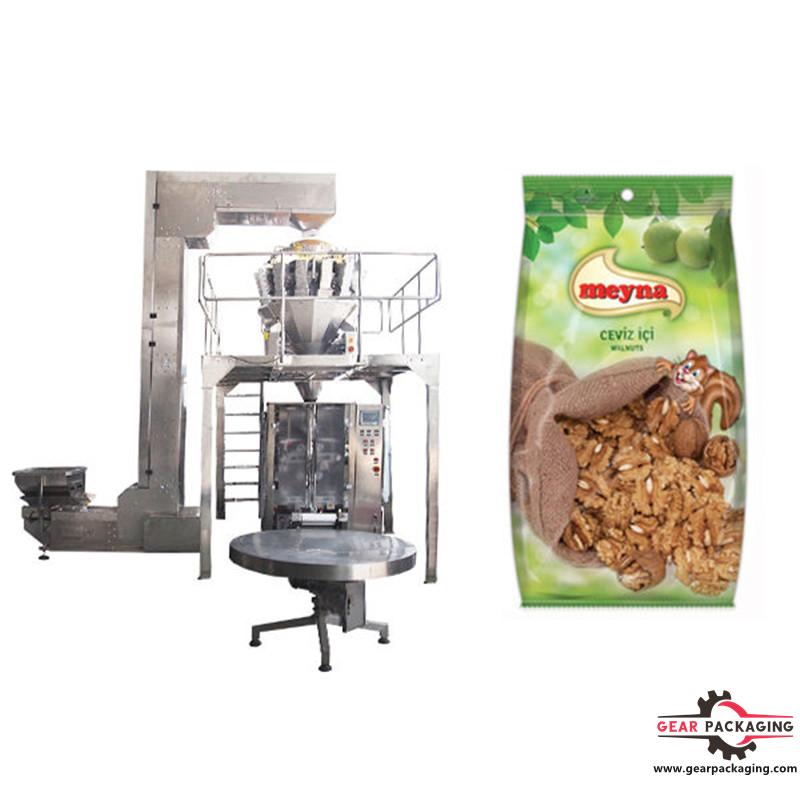

Vertical Packaging Machine V.F.F.S. Bagger Complete Systems nuts vertical packing machine


Applications


All kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn, Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.

Features


1.Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2. Intelligent: Packing speed and bag length can be set through the screen without part changes;
3. Profession: Independent temperature controller with heat balance enables different packing materials;
4. Characteristic: Automatic stop function, with safe operation and saving the film;
5. Convenient: Low loss, labor saving, easy for operation and maintenance.

Technical Specifications


Model GP-420A GP-520A GP-720A
Film Width Max.420MM Max.520MM Max.720MM
Bag Length 80-300MM 80-350MM 100-500MM
Bag Width 60-200MM 100-250MM 180-350MM
Film Roll Diameter Max.320MM Max.320MM Max.320MM
Film Thickness 0.04-0.12MM 0.04-0.12MM 0.04-0.12MM
Packing Speed 5-60Bag/Min 5-60Bag/Min 5-55Bag/Min
Power 220V 50/60HZ 2KW 220V 50/60HZ 3KW 220V 50/60HZ 3KW
Machine Size(MM) (L)1217* (W)1015*(H)1343 (L)1488* (W)1080*(H)1490 (L)1780* (W)1350*(H)2050
Machine Weight About 650KG About 680KG About 750KG
Option Device Two synchronous belt device, air filling device, angle fold device, automatic rectifying device, hole-punching device, link bag device.

10 Head Multihead Combination Scale


Main Features:
1,Original program can be restored.
2,Easy cleaning and maintenance with clean function, all hoppers can stay open.
3,Piece counting function.
4,IP65 certificate.
5,Unqualified weight reject.
6,Step motor angle can be set according to different product.
7,99 program can be preset.
8,Stagger dump prevents products blockage.
