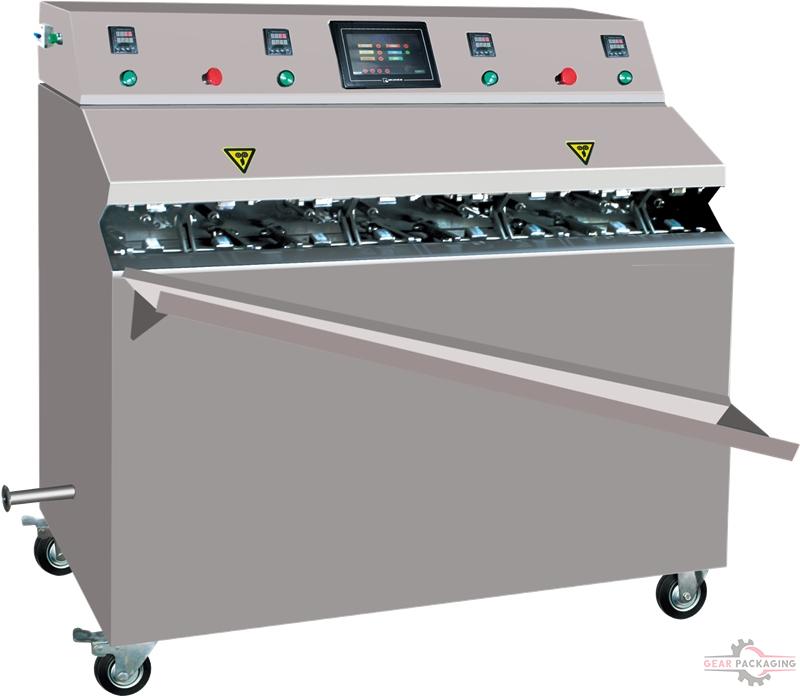

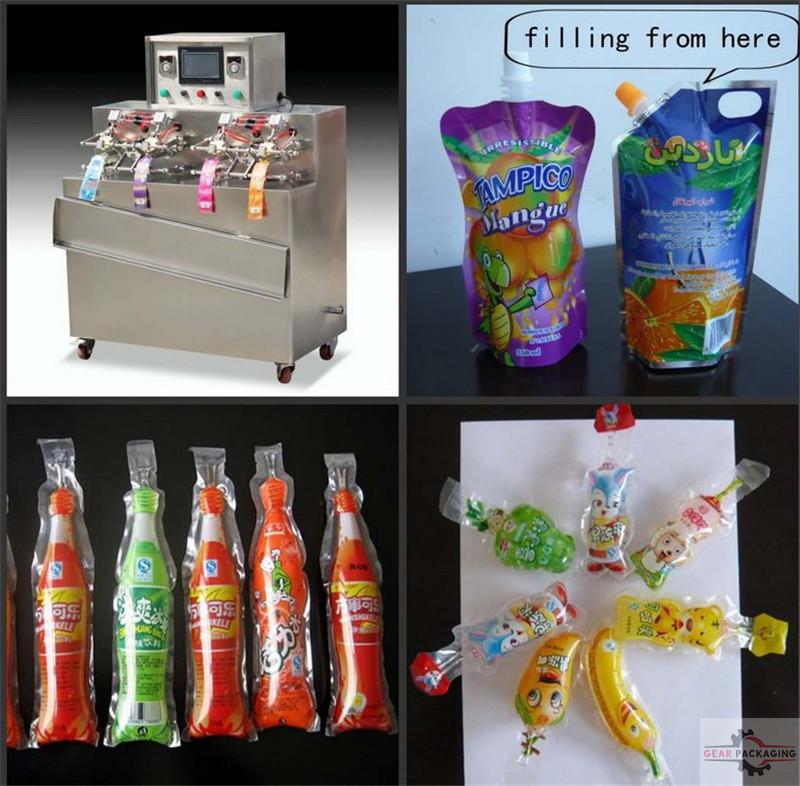

Filling Sealing Machine

  • Ice-lolly stick shape juice spout bags filling sealing machine fully automatic stand up beverage bag filler sealer equipment food drinking packaging machinery
Ice-lolly stick shape juice spout bags filling sealing machine fully automatic stand up beverage bag filler sealer equipment food drinking packaging machinery

Ice-lolly stick shape juice spout bags filling sealing machine fully automatic stand up beverage bag filler sealer equipment food drinking packaging machinery

  • Model:GP-SYBD-4B
  • Type:Filling sealing Machinery
  • Packaging Type:Stick shape bags
  • Dimension :1200×800×1200mm
  • Product description: Ice-lolly stick shape juice spout bags filling sealing machine fully automatic stand up beverage bag filler sealer equipment food drinking packaging machinery
  • INQUIRY

Description:

Ice-lolly stick shape juice spout bags filling sealing machine fully automatic stand up beverage bag filler sealer equipment food drinking packaging machinery

Model:GP-SYBD-4B

Bag material BOPP laminated LDPE, various shapes pre-shaped bags
Film thickness >0.18mm
Filling volume 50-500ml (Custom)
Filling accuracy ±2%
Power input 220V 50Hz or 220V 60Hz or 110V 60Hz
Power 0.8-1.6 Kw
Air Pressure 0.5-0.8 Mpa
Air Consumption 0.25-0.50 m3/min
Packing rate 2600 bags/hr
Filling nozzles 8
Workstation 2
Net weight 240 kg Gross weight 300 Kg
Overall dimension(L×W×H) 1200×800×1200mm
This plastic pouch filling sealing machine is suitable for filling and sealing different drinks, such as juice,  mineral water etc and also suitable for different shape and volume  bags. We can design different needle , filling and sealing structure, according to customers' demand.

Characteristics of juice spout bags filling sealing machine

(1)This pouch filling machine  filling machine work automatically from filling , pressing bag, sealing and discharge bag ,except putting  bag manually.Filling full, easy operation and sealing tight.
(2)The machine is designed with four working positions and eight heads for filling.Each two heads can be controlled separately,therefore causing no stopping and waiting time in operation and providing improved efficiency.
(3) The bag filling machine can be operated by one person.Continuous filling,sealing and unloading can be  achieved by one person putting the bag in machine continuously,without pressing the switch at all.The efficiency can reach 2000 to 5000 bags/hour(original at home)
Technical Parameters of juice spout bags filling sealing machine fully automatic:


Main functions
1> Filling nozzles automatically extend wait for work
2> Artificial bagging automatic filling
3> Adjustable quantitative
4> Automatic sealing
5> Automatic bag dropping
6> Leakage protection
7> Software programming

Model:GP-SYBD-4B
Bag material BOPP laminated LDPE, various shapes pre-shaped bags
Film thickness >0.18mm
Filling volume 50-500ml (Custom)
Filling accuracy ±2%
Power input 220V 50Hz or 220V 60Hz or 110V 60Hz
Power 0.8-1.6 Kw
Air Pressure 0.5-0.8 Mpa
Air Consumption 0.25-0.50 m3/min
Packing rate 2600 bags/hr
Filling nozzles 8
Workstation 2
Net weight 240 kg Gross weight 300 Kg
Overall dimension(L×W×H) 1200×800×1200mm

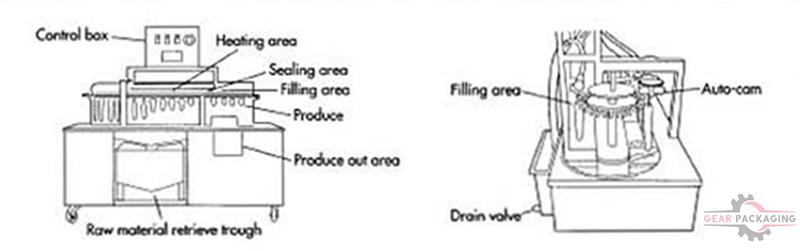

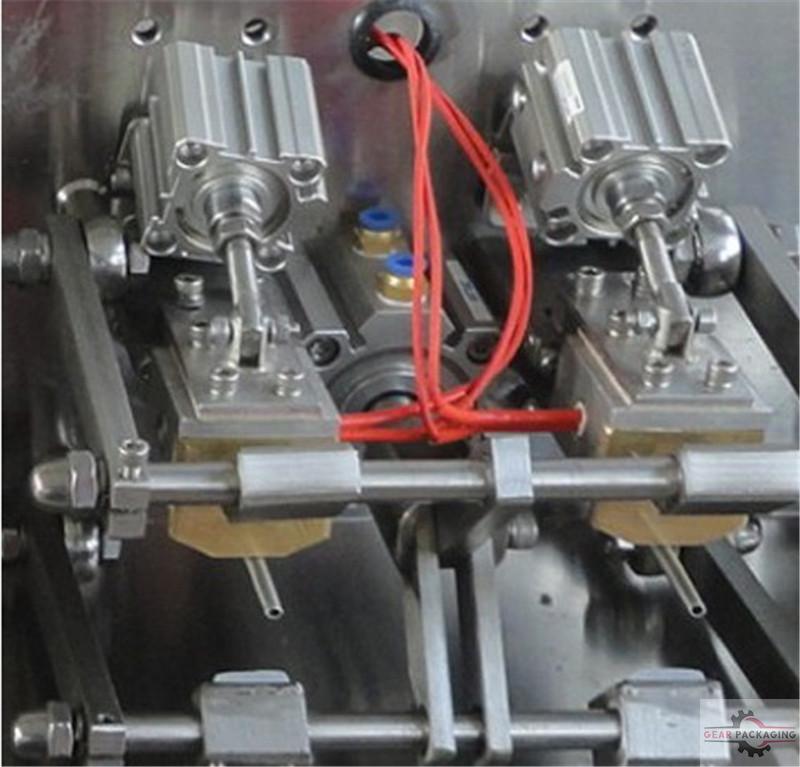

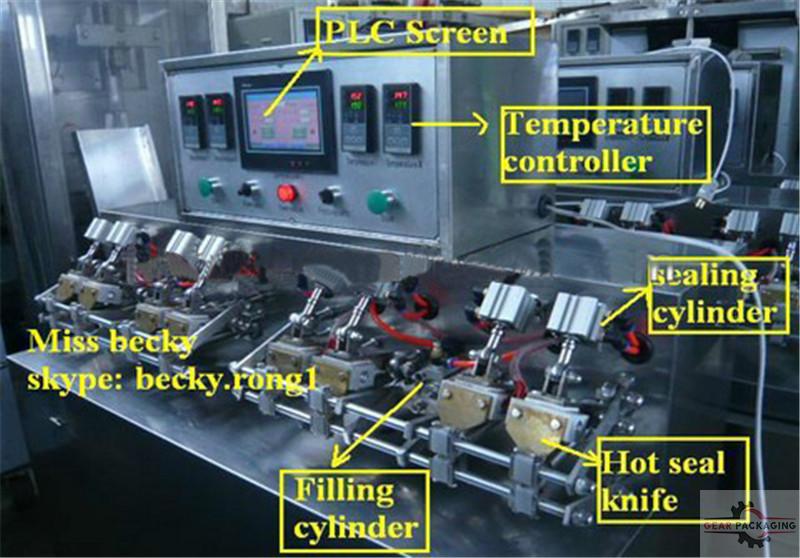

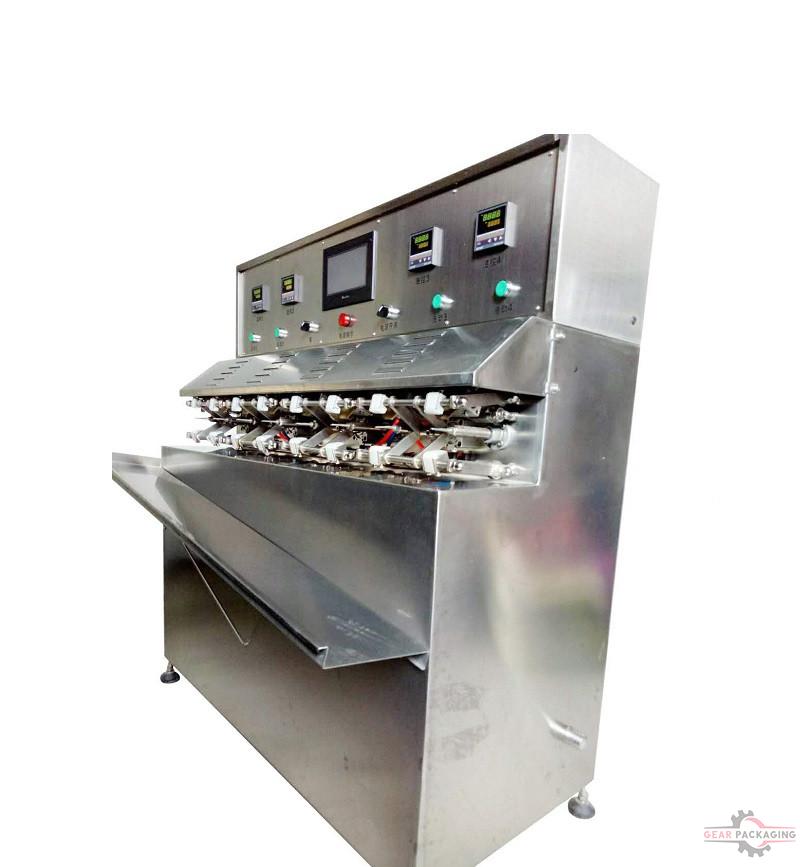

Details of spout bags juice ice-lolly tubes filling sealing machine

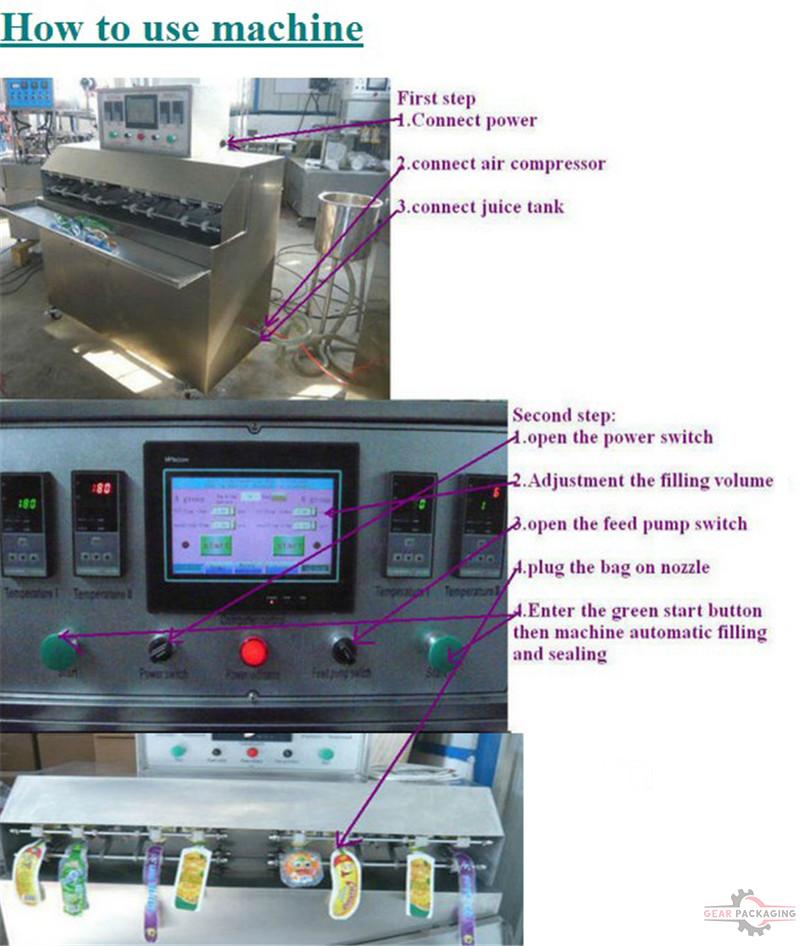

How to use juice filling sealing machine fully automatic

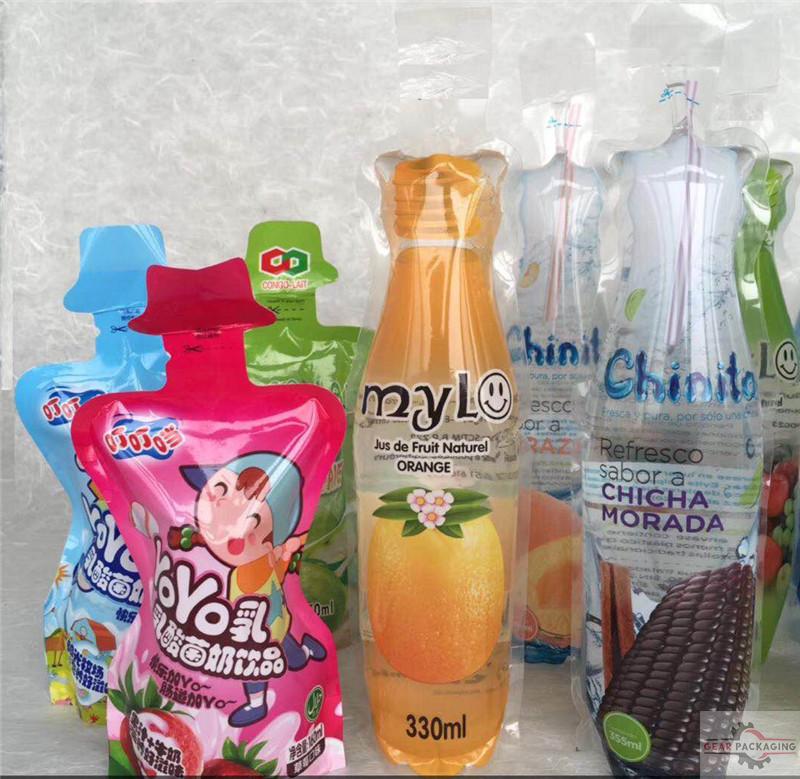

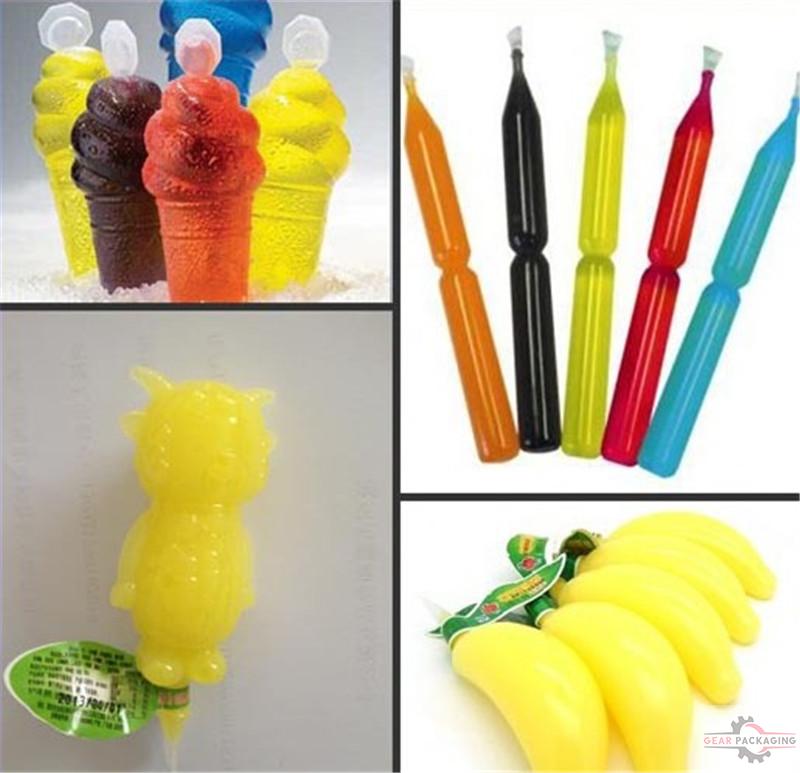

Samples of juice spout bags ice lolly

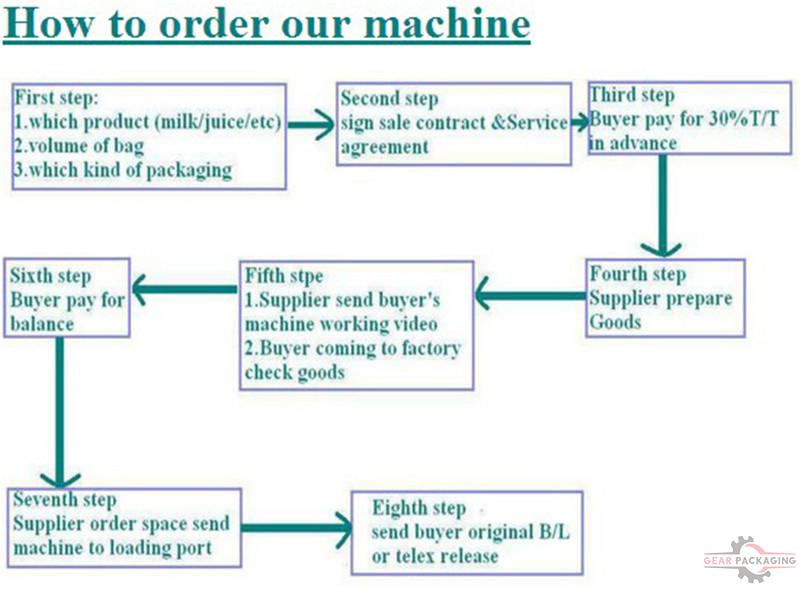

How to order our machine fully automatic filling sealing machine juice ice-lolly stick
