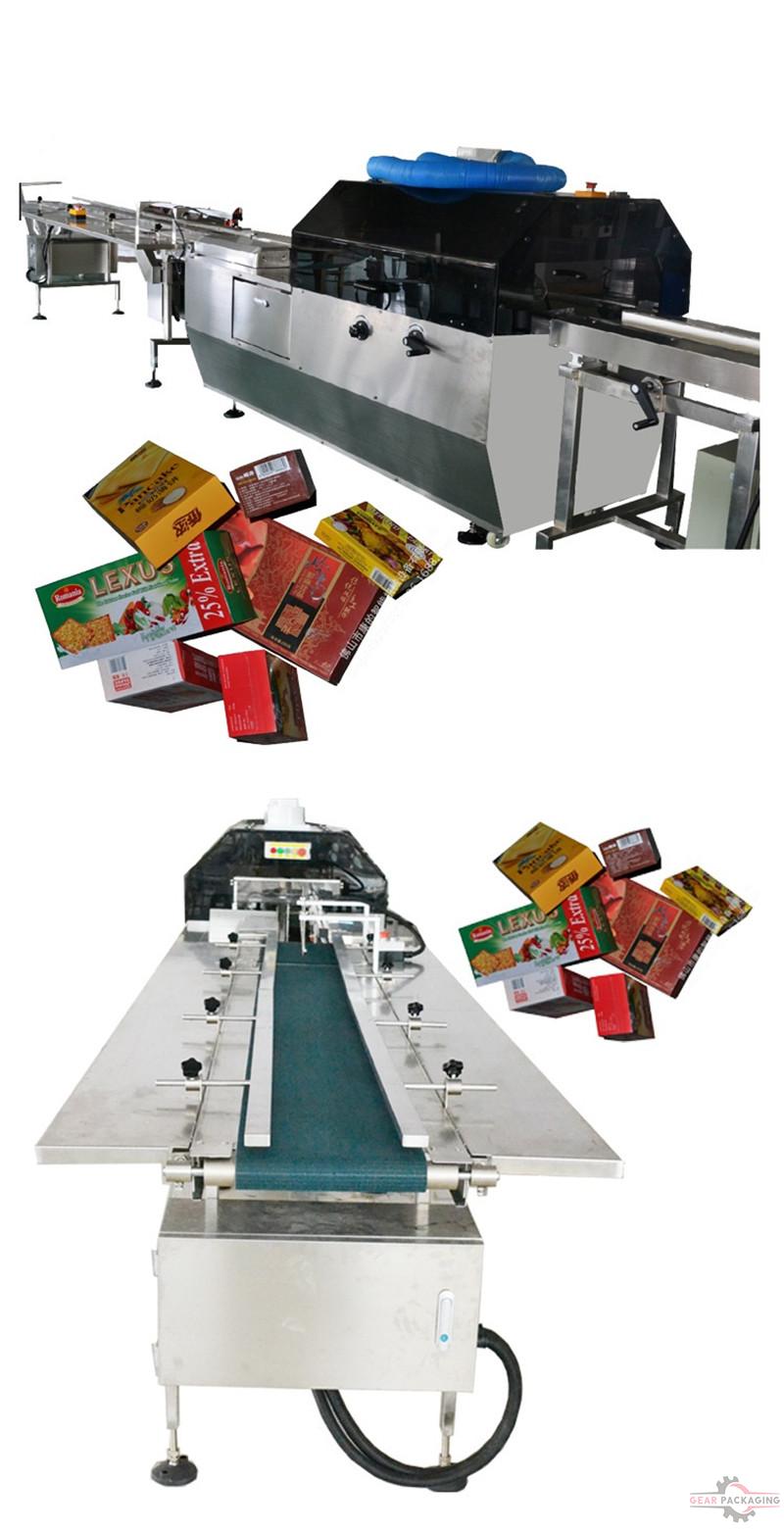

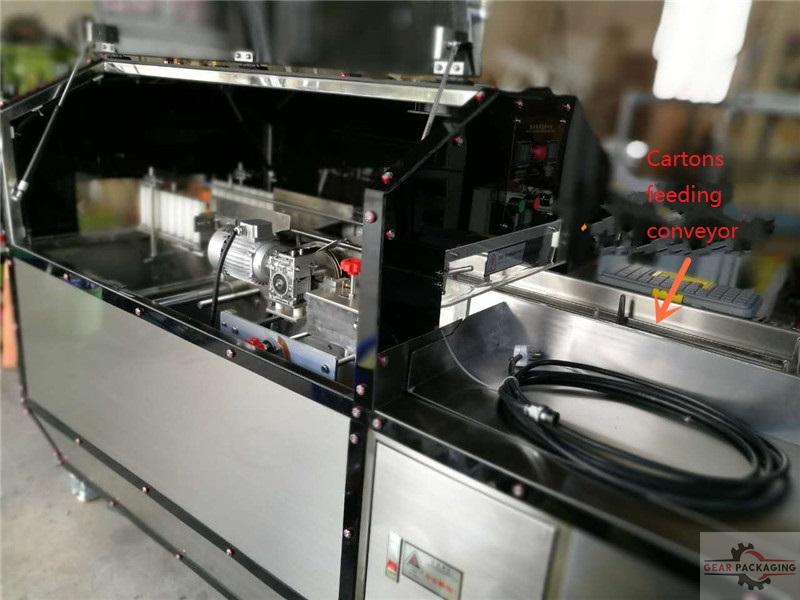

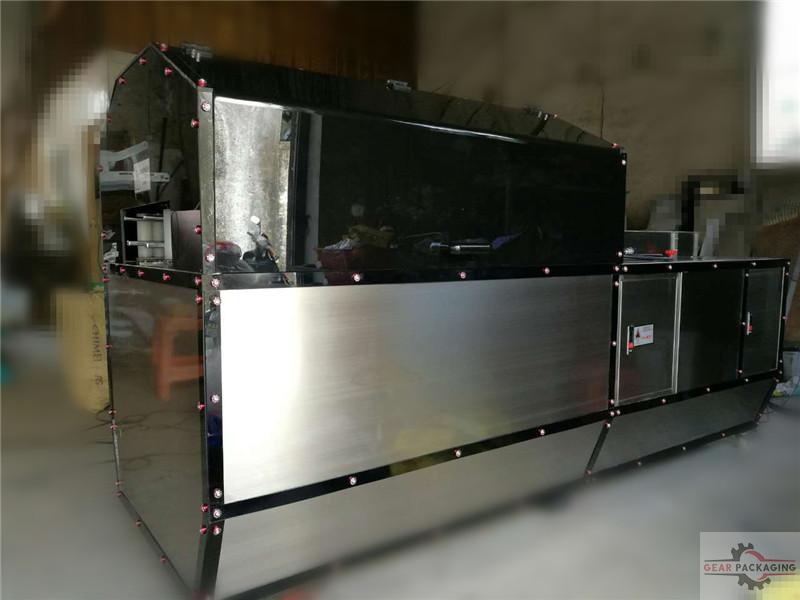

Paper cartons boxes hotmelt glue sealing machine with feeing conveyor automatic cartons adjustable cartoning sealer equipment high speed

Description:

Paper cartons boxes hotmelt glue sealing machine with feeing conveyor automatic cartons adjustable cartoning sealer equipment high speed

Model:GP-HS001

Capacity 50-80 boxes/min

Machine length:869mm
Total power 1.97W
Electrical AC220v 50HZ
Net weight 250kg
Machine dimension 6635*950*1455（mm）
Applicable box dimensions L130-300mm W40-250 H30-100mm

Working temperature:100℃-200℃

Hot melt glue paper gluing machine uses the most advanced coating technology, instead of other common one.It has perfect sealing effect, outstanding appearance and easy operation , the whole mechanical structure make the low failure rate.The whole part of the technical customization patent allowed protection. The box sealing machine is widely used in all models of paper boxes, such as  tissue case boxes, soap box and foodstuff boxes, etc.

Main characteristic&structure Features:
1.British technology, continuous three-shift work design
2.All stainless steel frame and guard board, electromechanical interlock safety door;
3.10mm thick plexiglass protective doors, variety of colors for choose
4.Driven by single-phase power motor, stable performance. It’s equipped with the safe control system for product feeding,automatic stop function at faults.
5.The whoe compact structure is available to printed carton into inlaid and machine
6.No replacement parts for different sizes of boxes;
7.Only five minutes to adjust different dimension applicable boxes;
8.Melt temperature control system can be preset to control;
9.The frequency conversion control adjust the speed of the box

Machine functions for each station:

Paper cartons boxes hotmelt glue sealing machine with feeing conveyor automatic cartons adjustable cartoning sealer equipment high speed

Model:GP-HS001

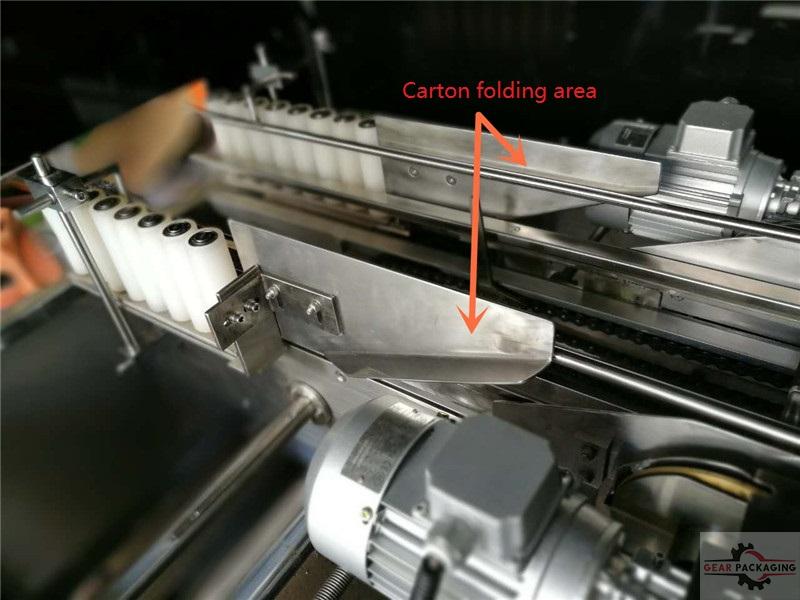

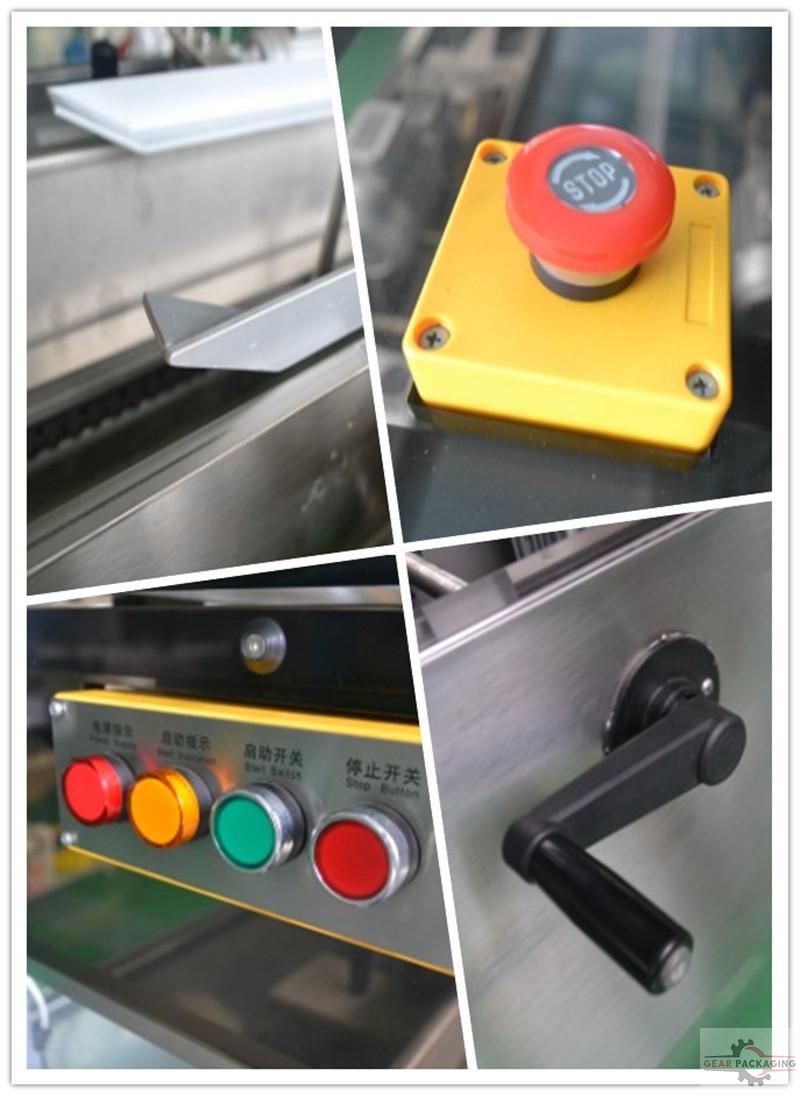

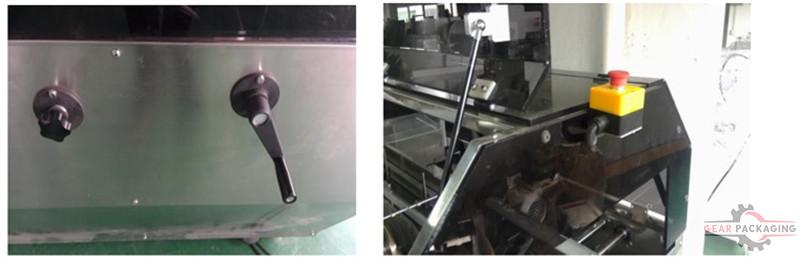

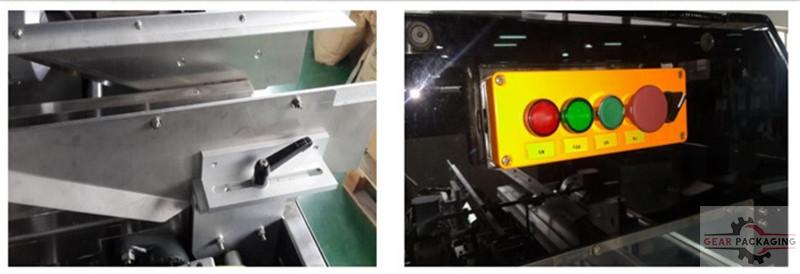

Carton box flips direction adjustment                                                        Operatoin buttom

Catons boxes two sides width adjustment                                           Door opening warning alarm

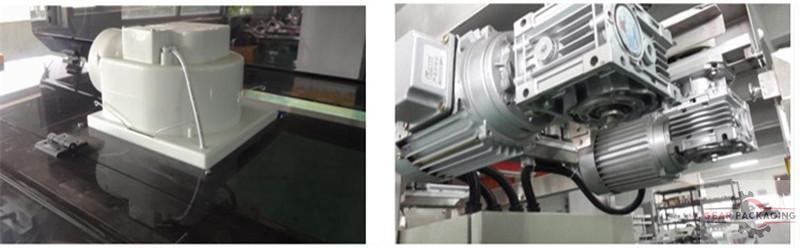

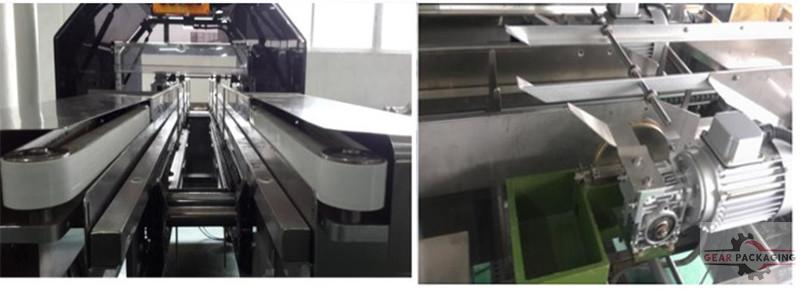

Heat cooling fan                                                                                   Powerful motor driving

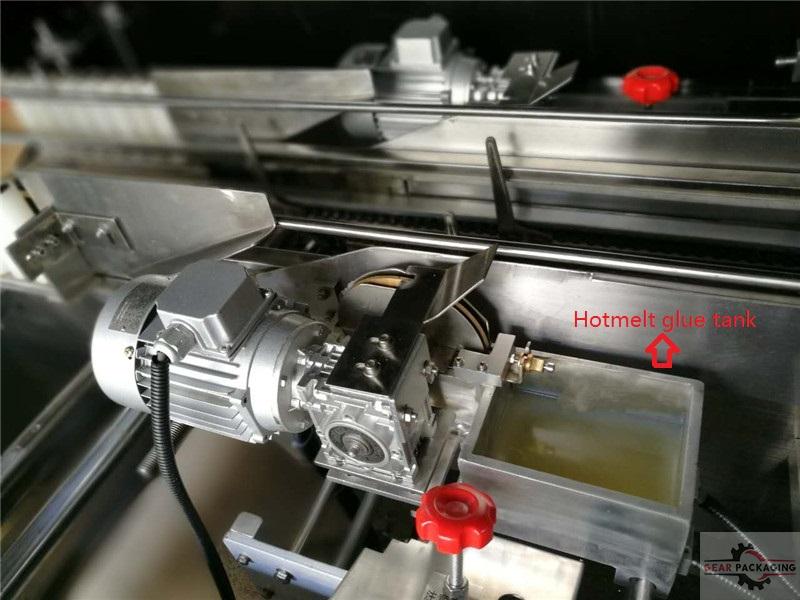

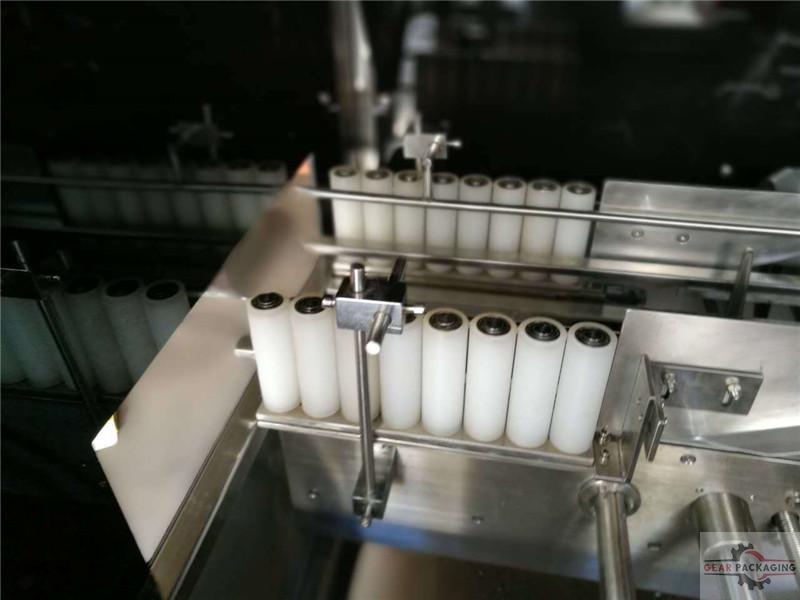

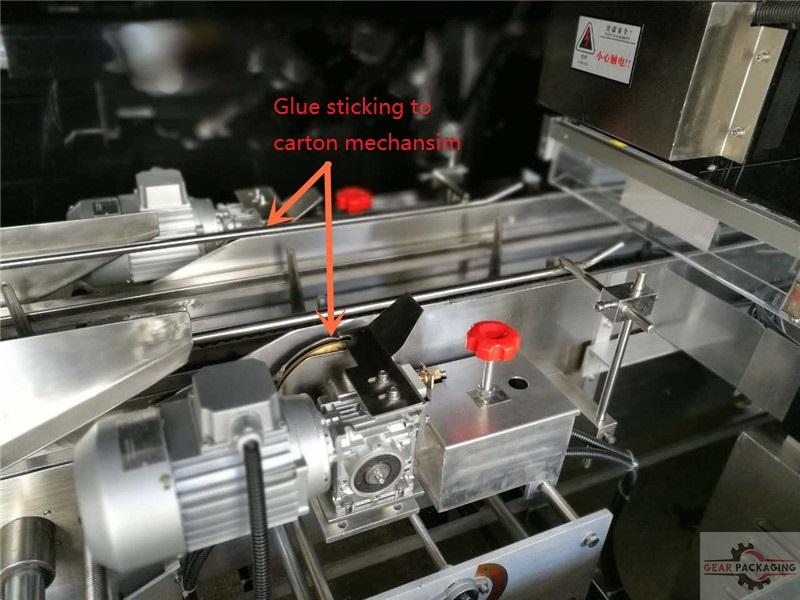

Caton delivery belts                                                                                    Hotmelt glue sticking wheel station

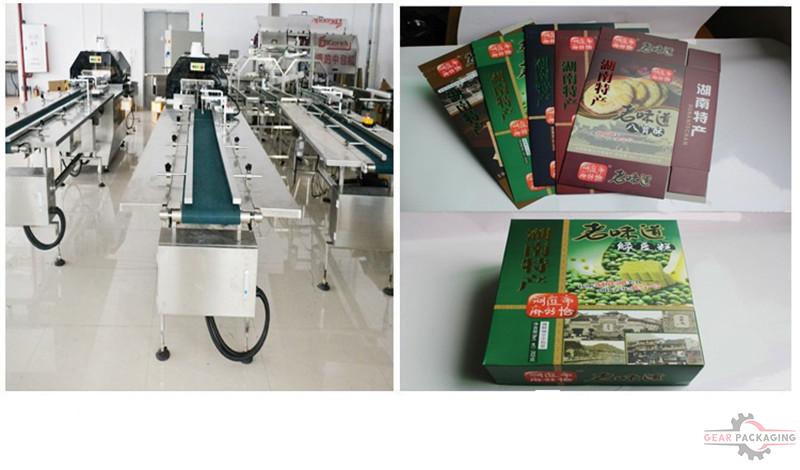

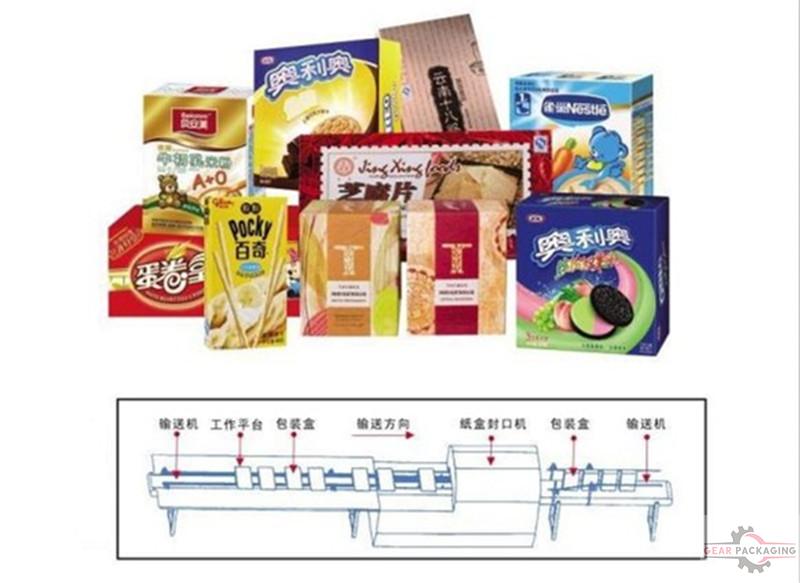

Final carton samples by hotmelt glue cartoning machine:

Application scope:

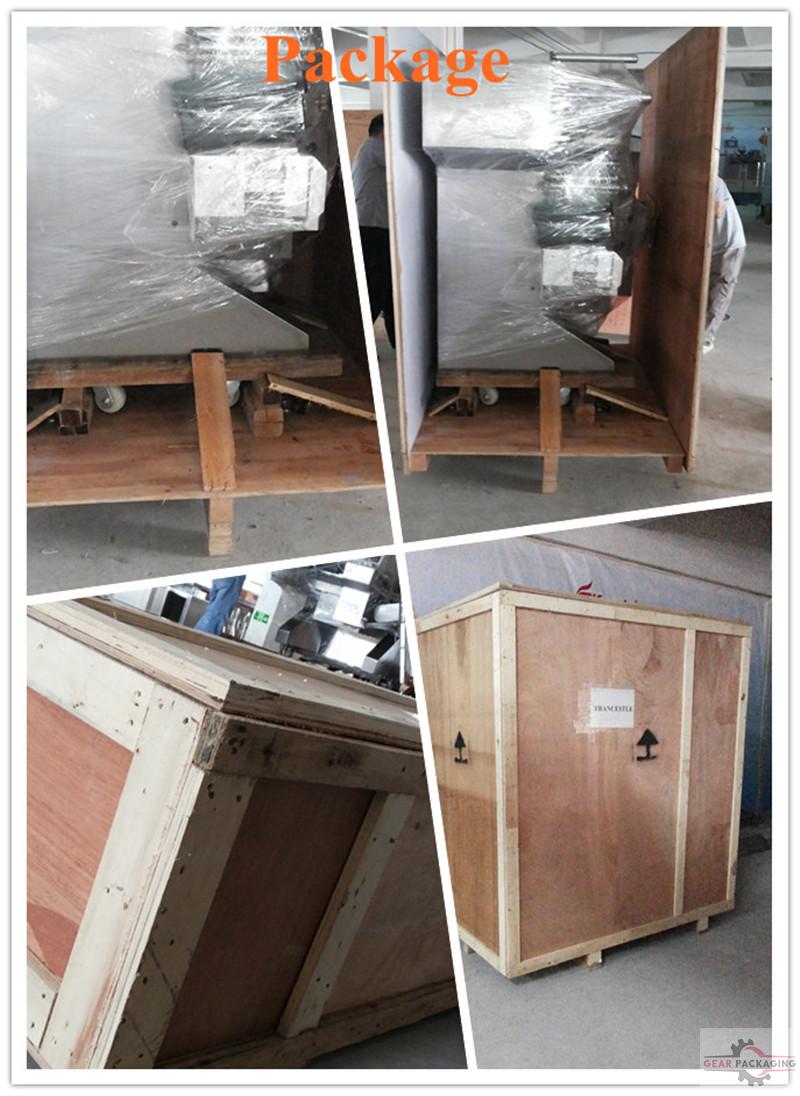

Wooden cases packaging and shipping:

Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse,
misapplication, storage damage, negligence, or modification to the Equipment or its components.
ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)
Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine
and also training your worker to operating the machine (The time of train depend on you worker).
The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account
and you need paid for the technician USD50 per day. also you can go to our factory to do training.
After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible.
The cost should be in your account.(as above).
