Labeling machine

  • automatic 5 gallon water bottle barrel drum sleeve labeling machine big bottle mouth sleeve label shrinking machine mineral products
automatic 5 gallon water bottle barrel drum sleeve labeling machine big bottle mouth sleeve label shrinking machine mineral products

automatic 5 gallon water bottle barrel drum sleeve labeling machine big bottle mouth sleeve label shrinking machine mineral products

  • Model:GP-5GL
  • Type:Labeling Machinery
  • Packaging Type:5 gallon mouth sleeve
  • Dimension :650*550*550mm(L*W*H1700(L) X 900(W) X 2000(H)
  • Product description: automatic 5 gallon water bottle barrel drum sleeve labeling machine big bottle mouth sleeve label shrinking machine mineral products
  • INQUIRY

Description:

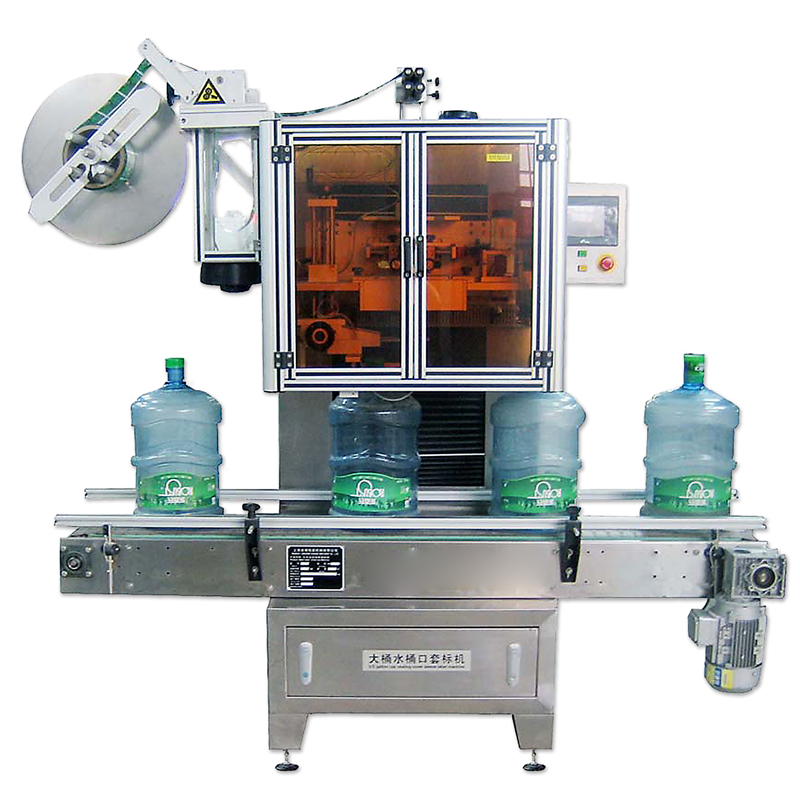

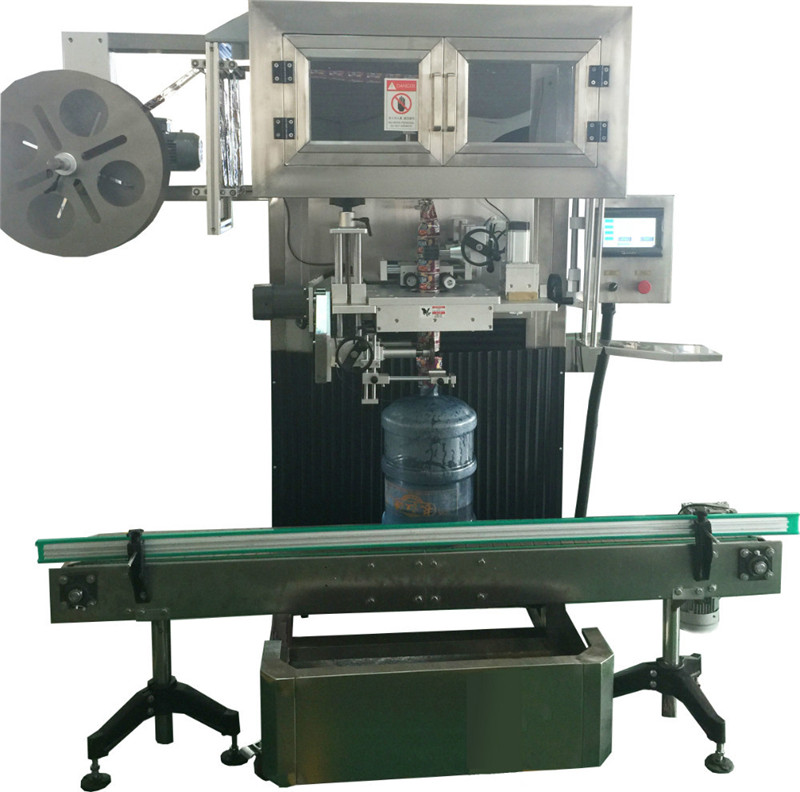

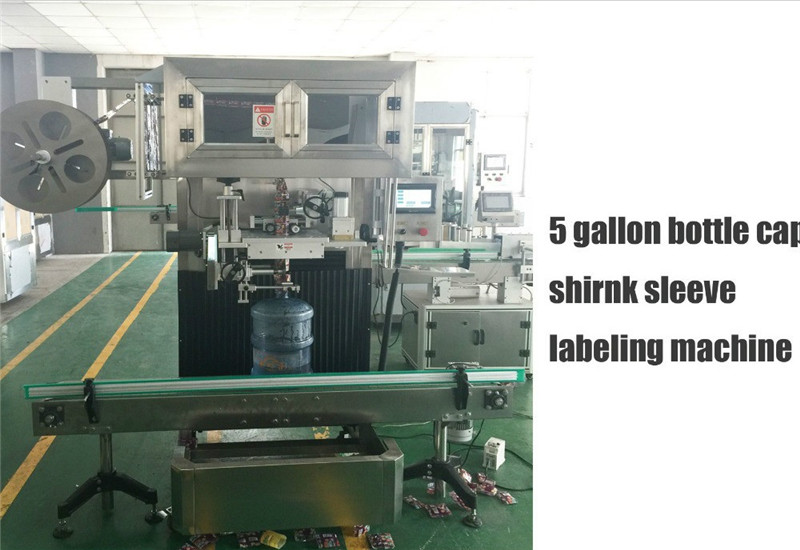

Automatic 5 gallon water bottle barrel drum sleeve labeling machine model:GP-5GL

Customized builded machine is for 5 gallon bottle mouth sleeve labeling machine,opening top sleeve film shrinking system.

Connected to mineral water production,5 gallon intergrated line.

Product name shrink sleeve labeling machine GP-5GL
Diameter of Bottle 40-160mm
Thickness of label 0.03-0.13mm
Internal Diameter 5"-10"(Free adjustment)
Speed 0-3000BPH
Size of host machine 1700(L) X 900(W) X 2000(H)
Label Meterials PVC,PET,OPS
Weight 250kg
Cutter Scope 50-95mm
Bottle suitable Three/five gallon cap sealing label machine
Product Keywords mineral water bottle


Application

PVC Plastic Bottle Sleeve Labeling Machine with High Quality is suitable for different type of bottles. The machine mainfram is stainless steel, simple ,safe maintenance and waterproof. And the spare part of machine adopts famous brand, long life span, so easy to repair and maintain, save time.

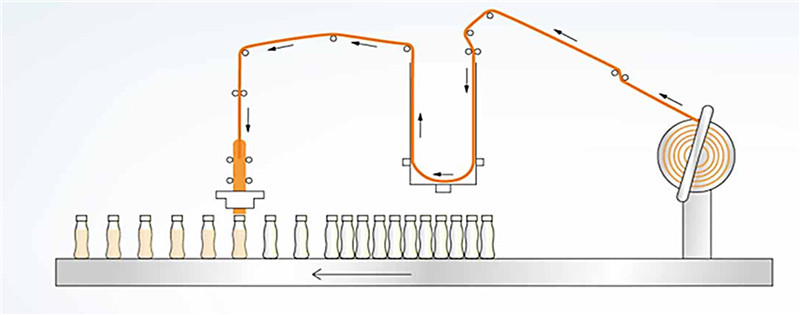

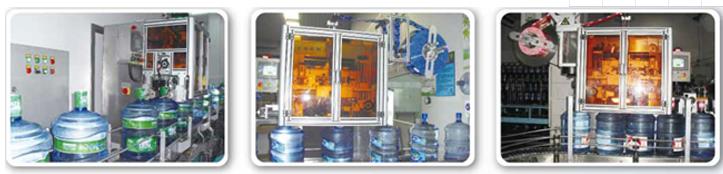

5 gallon bottle sleeve shrinking labeling machine working process:

Features:


1. Special holder holding style, stable label guiding.

2. Adopt superior magnalium alloy material, anodizing handling on surface, more clean, resitant to corresion.

3. Synchronization driving cutting systems, makes the cutting keep a long life span, low cost.

4. Adopt HMI controls, Chinese and English can be chosen, easy to operate.

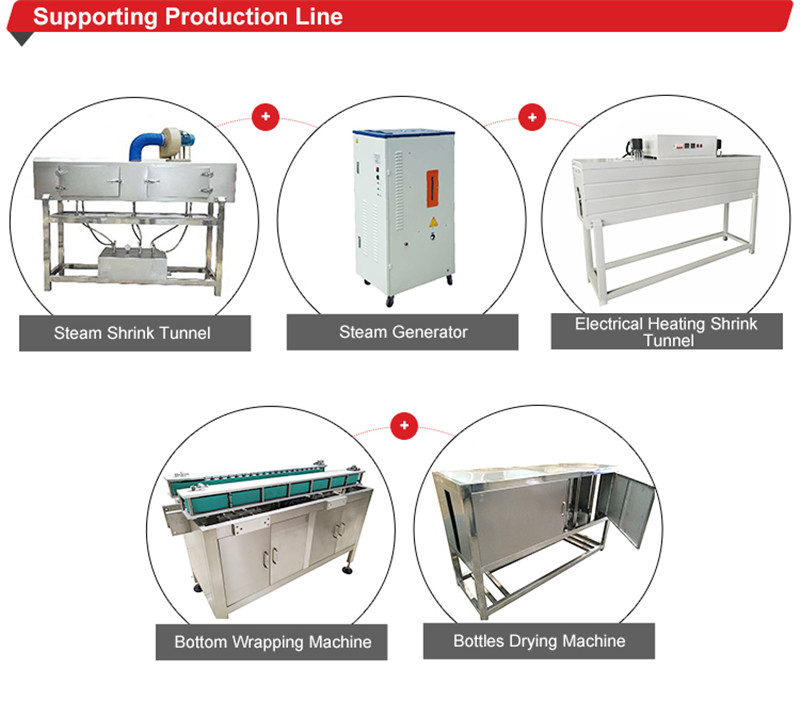

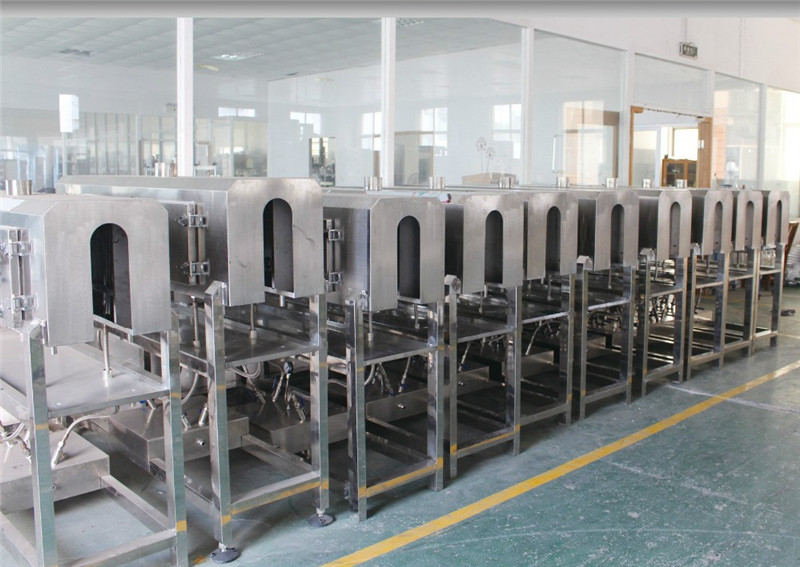

Steam Heating Shrinking Oven ,sleeve shrinking tunnel:(Optional purchased item)


1. CP-1800 Steam Heating Shrink Tunnel can be applied to different  and irragurlar bottle types, e.g. round bottlessquare and flat bottles.

2. It adopts seamless tube, the distribution of low-pressur of steam drum and spouting method of steam are unified.

3. The steam nozzle is divided to three adjustable segments; the height, position and steam output of each segment can be adjusted respectively, this guarantees  a perfect shrinking effect.

4.The Whole machine is made of stainless steel with heat preservation, it not only saves the energy, but also matches with the international safety  standard.

5. The satinless steel deforsting tray collects condensed water. The whole machine adopts the waterproof design with the convenience of operation and maintenance.

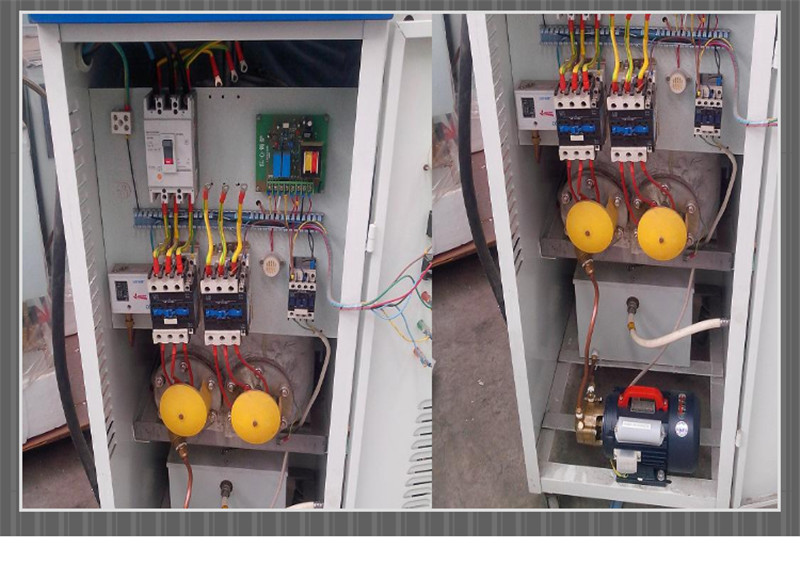

Steam Generator(Optional purchased item)



_01

 Specification Parameters

18KW

24KW

36KW

48KW

 Steam generating (Kg/h)

24

32

48

64

 Steam pressure (Mpa)

0.4/0.7

0.4/0.7

0.4

0.4

 Steam temperature (°C)

151/170

151/170

151

151

 Power (KW)

18

24

36

48

 Motor power (w)

550

750

750

750

 Diameter of safety valve

DN15

 Diameter of main steam valve

 Diameter of drain valve

 Diameter of water supply valve

 Boiler Water volume (L)

42

 Appearance sizes (mm)

 630*550*1400

720*650*1350

1030*630*1350

1030*630*1350

 Total weight(KG)

85

90

195

195

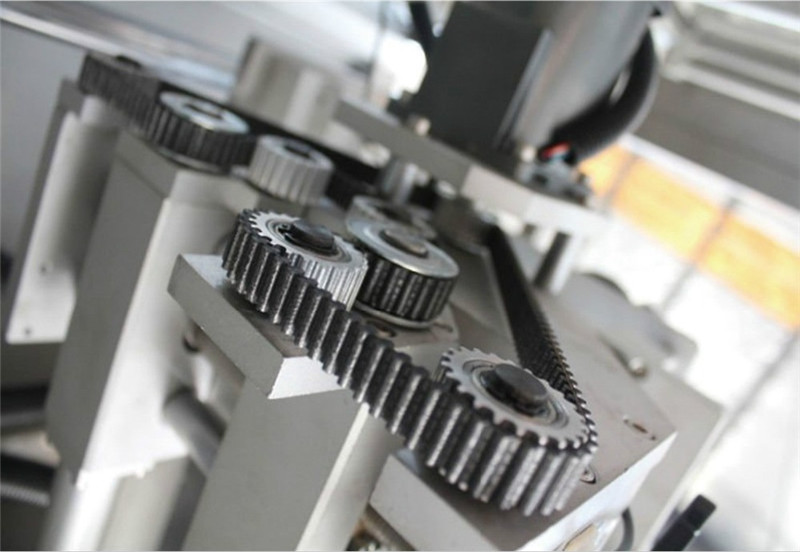

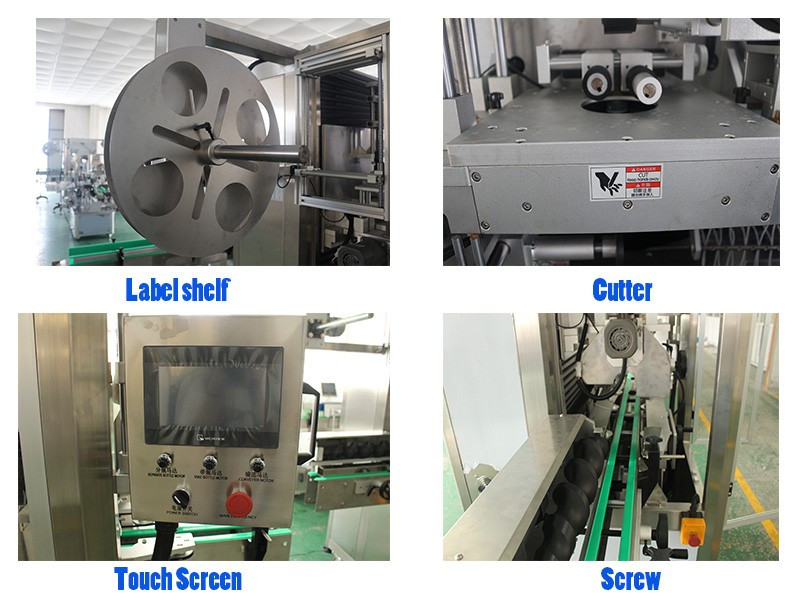

Machine detail pictures:
