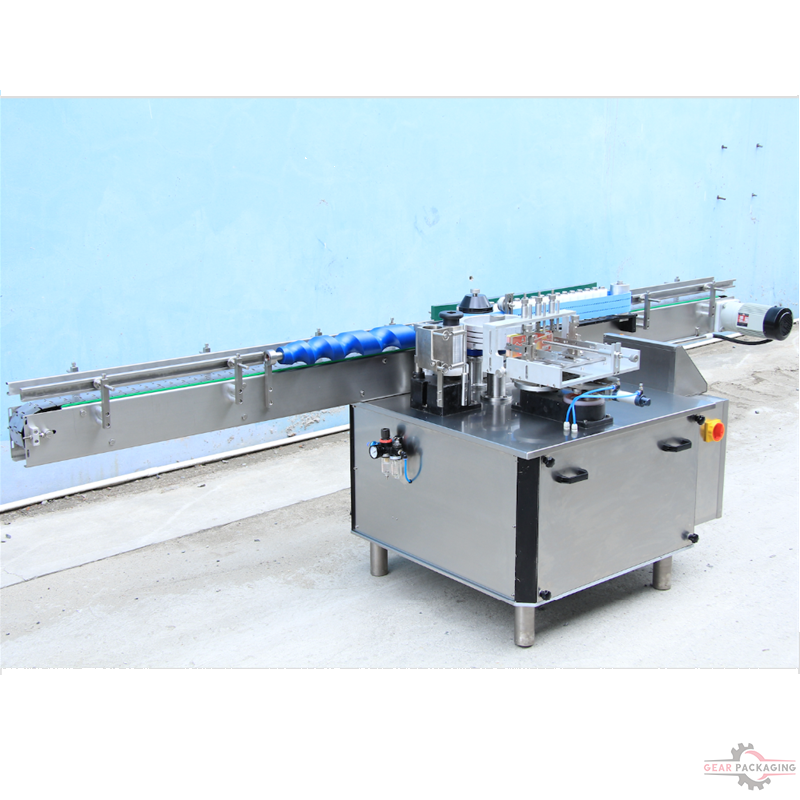

Labeling machine

  • Automatic wet glue labeling machine Round glass plastic bottles wet glue labeling machinery linear cold paste labels applicator for food products wine bottles
Automatic wet glue labeling machine Round glass plastic bottles wet glue labeling machinery linear cold paste labels applicator for food products wine bottles

Automatic wet glue labeling machine Round glass plastic bottles wet glue labeling machinery linear cold paste labels applicator for food products wine bottles

  • Model:GP-WL630
  • Type:Labeling Machinery
  • Packaging Type:Wet/Cold glue labeled products
  • Dimension :L=3000 W=850 H=750 mm
  • Product description: Automatic wet glue labeling machine Round glass plastic bottles wet glue labeling machinery linear cold paste labels applicator for food products wine bottles
  • INQUIRY

Description:

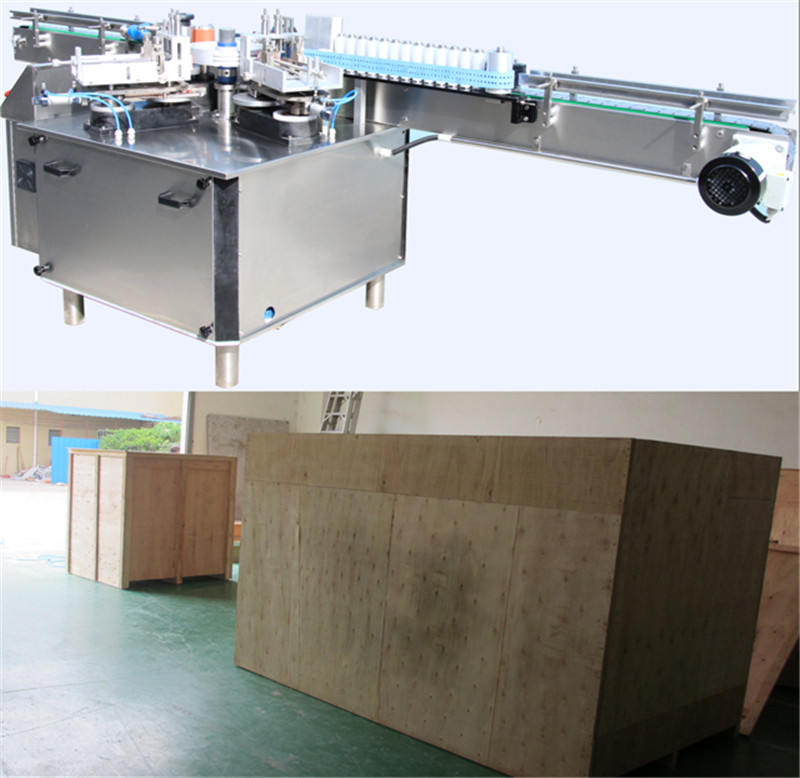

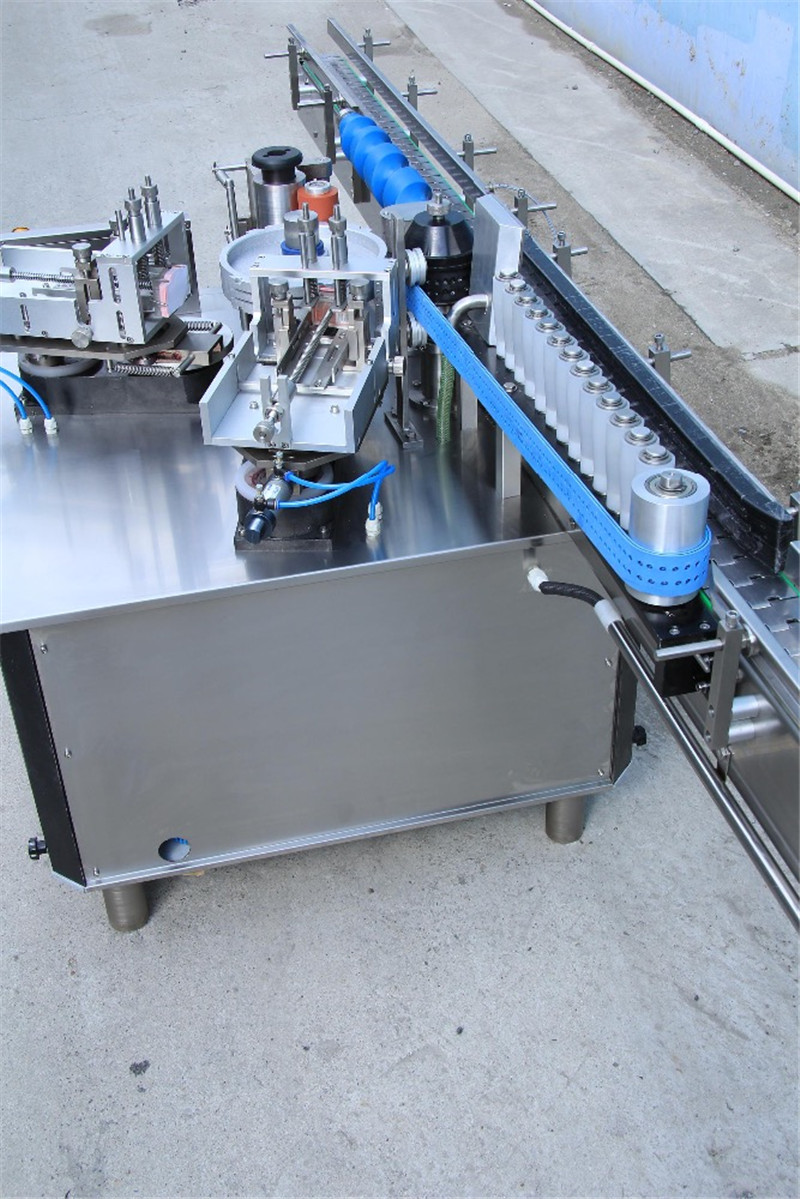

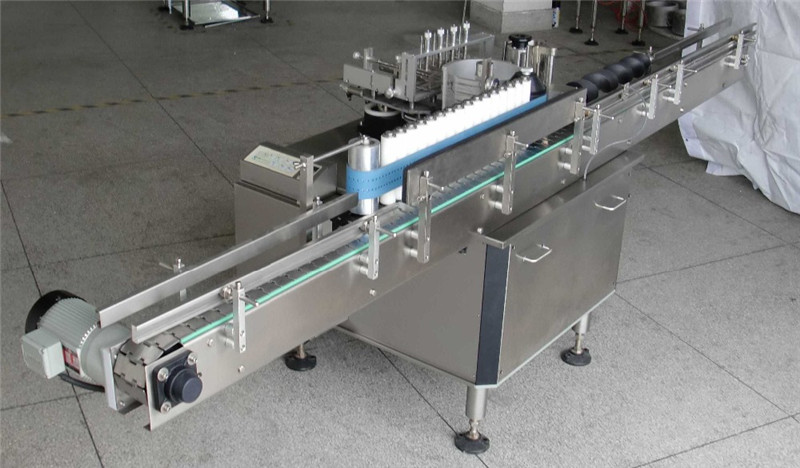

This high speed wet glue labeling machine is very suitable for small cylindrical container such as glass, plastic, PET bottle with precut paper label. The machine is economical and easy to operate. The performance is stable with a level off and good looking labeling result. The control system adopts convert motor system, the in line conveying bottle, supplying glue and label automatically. This automatic labeling system is ideal for food & beverage, medical industry etc.


Technical parameters

Model

high speed wet glue labeling machine model:GP-WL630

Labeling speed

80~100bottles/minute

Width of label 25~60mm
Length of label 25~100mm
Type of glue Polyvinyl acetate emulsion
Labeling precision ±1mm

Power supply

1.5kw,220,single phase,50~60Hz(Optional)

Dimensions

2064mm×900mm×937 mm  ( L× W× H )

Weight

500kg

Working direction

Left → Right (or Right → Left)











Feature:

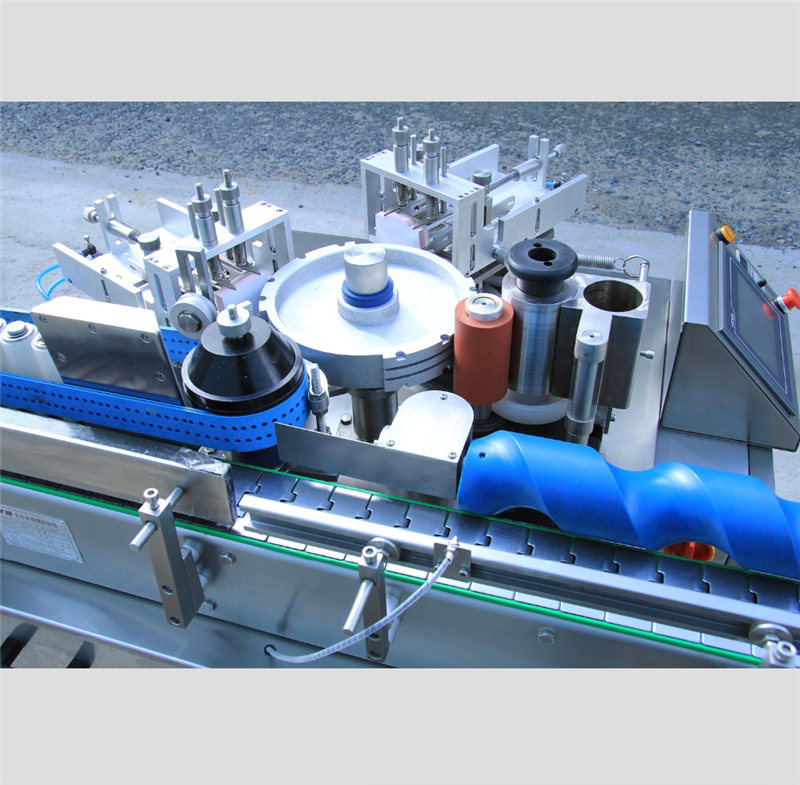

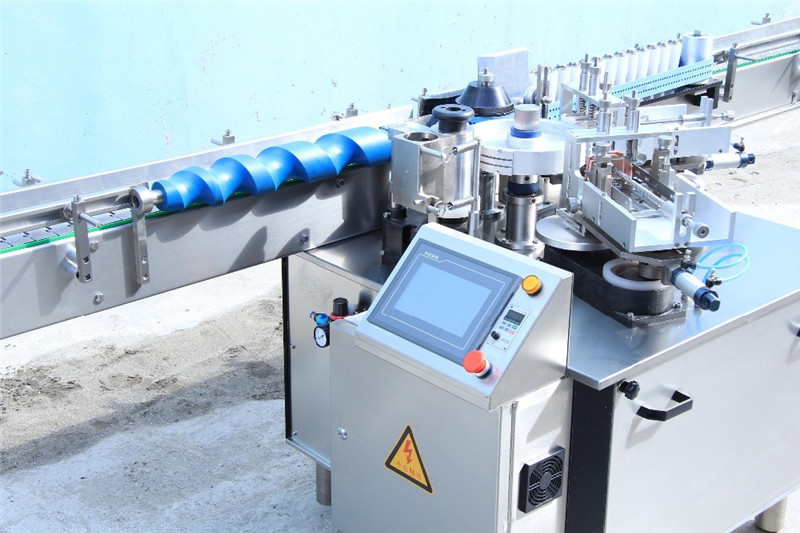

1)adopt screw bottle feeding type, running stale, reliably setting. Adopt thread rolling device, good sticky, add label reliability. Include no bottle, no label, no spraying, no sticking device. Simple design, easy to operate and change labeling specification.

2)The paste groove and stainless steel rolling wheel is produced precislly. No leak.

3)The rubber wheel is processed specially, wont change appearance, wear-resisting. It can spray paste uniform.

4)It adopts vacuum absorb label, match with the conveyor , can label flatable.

5)It adopt frequency changer, can adjust motor speed, then control labeling speed.

6)You can use it single, also can be connected into production line

7)Only need change label rod, vacuum conveyor some accessories, you can adjust machine to satisfy different specification of machine.

8)The initial accessories all adopt standard accessories, easy to maintenance.

9)The mainly accessories adopt international famous device, insure quality, can working stable, using long time.





1. widely applied to various industries;
2. mainly used to stick label on single or double sides of round/flat/square bottle/box
3. wide product application range, labeling scope is adjustable, this machine for 3 product shapes(round/flat/square);
4. can be matched with bottle feeder, date printer ,etc.
5. work alone or join other packaging machine line;
6. high labeling precision, stable work ability, neat,no wrinkle, no bubble, qualified rate can be up to 100%;


Working process:

Screw bottle unscramblerspray pastetake labelstick labelstable label sticking


Wet glue labeling machine use ordinary bond paper(80g or 90g single copper). Surface coating can be carried out the wax,

oil or UV coating treatment volts according to the requirements of customers, to keep the label fat when stored, laminating labels should not be saved due to the formation,

and it will influence speed because of winter temperatures, it is recommended not to use this surface treatment.
Wet glue labeling machine is suitable for all standard cylindrical container between the diameter from 30mm-100mm, it is easy to change mould and operate.
Wet glue labeling machine have more advantafe than adhesive sticker labeling machine; same size label, sticker labeling machine used as 4cents RMB per piece,

wet glue labeling machine label is less than 1cent RMB per piece, can save about 2-3 times higher than the node cost.
But adhesive sticker labeling machine also have more advantage than wet glue labeling machine; linear current domestic cold glue labeling machine

just can paste for srandard round bottle, but sticker labeling machine can be affixed to a greater variety of bottle-shaped, but also can not complete all shape bottle in the same machine.

Samples for the bottles sent from customer:

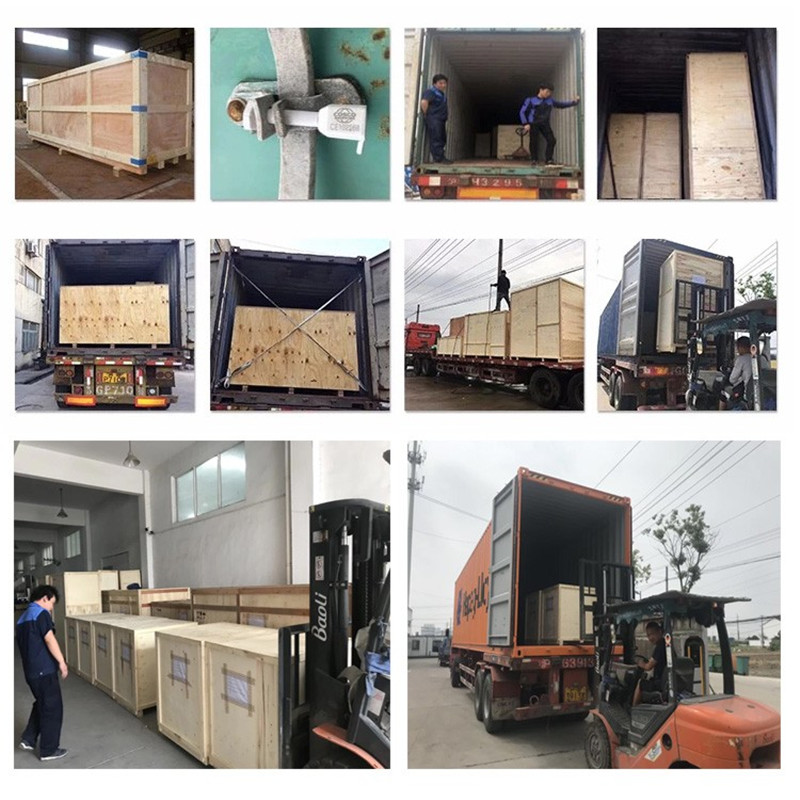

Transportation shipping wooden case packaging:


FAQ

Q1: As an oversea buyer, I am wondering whether you will send your repairman or engineer to our country to help us to solve our problem after one year warranty.

A1: Of course, we will always do our best to solve your problem whatever in one year warranty or not, and you need not to pay for unnecessary, we will provide a reasonable repair price to satisfy you.


Q1: Are you a factory or an agent?

A1: We are an OEM, we always design and manufacture our products ourselves, so we could provide satisfactory technical and after-sales service.


Q3: How does your factory do regarding quality control?

A3:Quality is priority! Every worker keeps the QC from the very beginning to the very end, all material we used are meet GB standard, skillful workers care every detail in handing each process, Quality control department specially responsible for quality checking in each process.

After sales service for wet glue labeling machine automatic linear labeller:

Guarantee: for all the machine, it claims one year for guarantee.

(Excluded from the warranty are problems due to accidents, misuse ,

misapplication, storage damage, negligence, or modification to the Equipment or its components.

ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,

our technician will go to your place to install and test the machine

and also training your worker to operating the machine

(The time of train depend on you worker).

The expenses (air ticket ,food , hotel,the travelling fee on your country)

should be on your account and you need paid for the technician USD50 per day.

also you can go to our factory to do training.

After service: If you get the problem on the machine ,

our technician will go to your place to fixed the machine as soon as possible.The cost should be in your account.(as above).
