  • Single head piston filler viscous liquid semi automatic filling machine with hopper

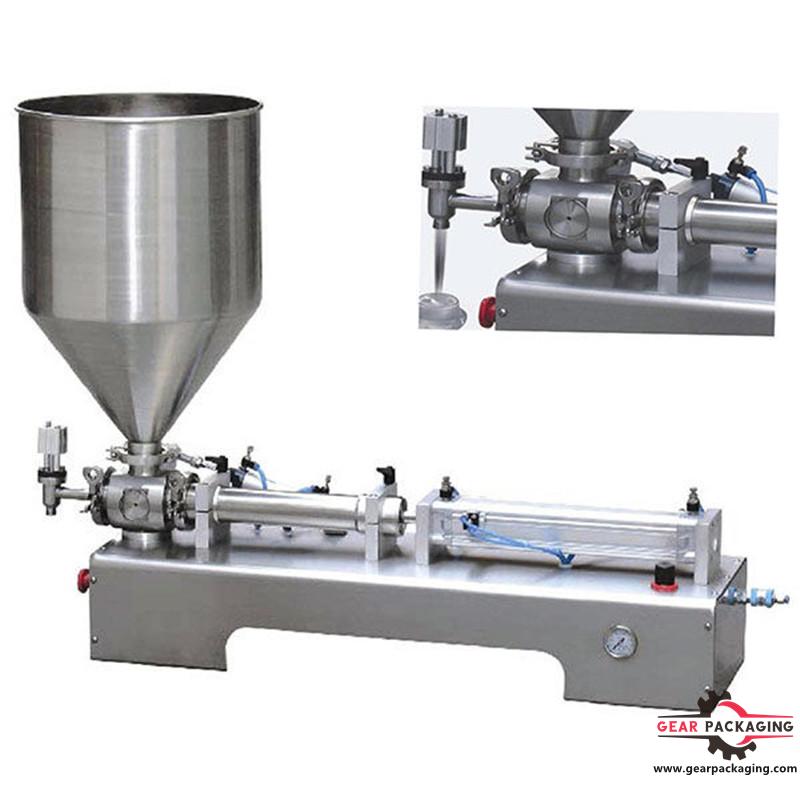

Single head piston filler viscous liquid semi automatic filling machine with hopper

Single head piston filler viscous liquid semi automatic filling machine with hopper

  • Model:GP-F01
  • Type:Filling Machinery
  • Packaging Type:Bottles
  • Operation Efficiency: 10-20 bottles per min (depends on product and container size)
  • Product description: Single head piston filler viscous liquid semi automatic filling machine with hopper
  • INQUIRY

Description:

Single head piston filler viscous liquid semi automatic filling machine with hopper


Applications


Horizontal single head piston filler  for viscous liquid,such as  ketchup, mayonnaise, cream, butter, jam, honey, shampoo etc.


Features


Standard with Airtac Piston.

All piston filler made from S/S 304 grade stainless steel and aluminum conforms to GMP.

Viscous Liquid Model with stainless steel product hopper

Operated by foot pedal switcher or by automatic timer.

With Anti-leaking system

Product suction and dispensing speed adjustable.

No-Tools for set-up and adjustment.

Sanitary tri-clamp connections easy wash

Quick release nozzle and feed pipe

Small footprint for simple bench mounting

Be able to be equipped with other automatic packaging machine

Most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industries.

Option


Festo Piston

Food and pharmaceutical S/S 316 grade stainless steel contact parts.

Standard with electric solenoid control, we have pneumatic solenoid valve to work without electric option at full Pneumatic Driven

Technical Data


Air Consumption: 0.6CBM/H
Air Supply Pressure: 0.4-0.6Mpa
Operation Efficiency: 10-20 bottles per min (depends on product and container size)
Filling Precision: ≦±1%
Dimension & Weight: Variable, depending on the application

Product advantages


1. Piston filling machines are specifically designed to allow for accurate fill volumes of both thick and thin products. Products that contain chunks, such as salsas, tomato sauces and other products with particulates can also be filled using a piston filler.
2. All parts in Contact with product are Food Grade.
3. It is of wide applicability and can be used for paste or high-viscosity that can be flowed in the fields of daily chemistry, food and beverage, pharmacy, chemistry and cosmetics, personal acre, agricultural, animal care for low viscosity fluid and liquid filling. Suits for fill high-density liquids, paste.
4. Filling range with change parts: 5 to 5000ml per stroke SS made hopper having capacity up to 20KG Easy to operate, no maintenance required
