Form-Fill-Seal

  • Liquid & paste pre made bag rotary fill seal with pistion filler Pre-Made Pouch Packaging Solutions
Liquid & paste pre made bag rotary fill seal with pistion filler Pre-Made Pouch Packaging Solutions

Liquid & paste pre made bag rotary fill seal with pistion filler Pre-Made Pouch Packaging Solutions

  • Model:GP-RB200A
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Machine Dimension:2000x1200x1400mm (78.7'x47.2'x55.1')
  • Product description: Liquid & paste pre made bag rotary fill seal with pistion filler Pre-Made Pouch Packaging Solutions
  • INQUIRY

Description:

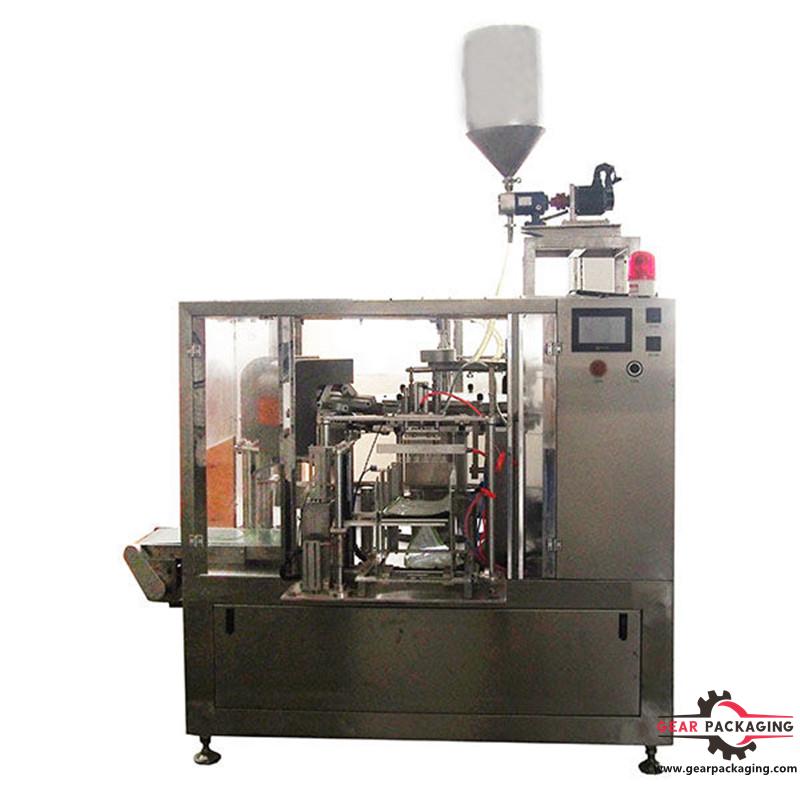

Liquid & paste pre made bag rotary fill seal with pistion filler Pre-Made Pouch Packaging Solutions


Product Description


rotary fill seal seal pistion filler liquid & paste adopt high quality 304 stainless steel material, has a good
polishing performance, big appearance quality, resistance to corrosion, heat resistance. Comply with the Drug GMP/Food QS regulatory requirements. easy cleaning, not easy to breed bacteria, can solve the sanitary problems in the production process, the machine can be widely used in liquids such as milk, vinegar, water, juice, beverage and so on similar. Can also fill paste like sauce packaging bag for sauce, tomato sauce, chili sauce, onion oil and so on, the liquid mixed products and so on.


Applications


Equipped with piston filler as the dosing system, it is widely applicated to packing liquid and paste, such as detergent, softener, shampoo, shower gel, milk, water, juice, soybean sauce, oil, ketchup, mayonnaise and so on.


Features


Saving pouches & less pollution the machine, no pouch or incorrect pouch opening, no fill & no seal.

Graphic Interface, Well Arrange, 20 recieption, User Friendly.

All iapack rotary packing machine use motor width adjust, change pouch size in a minute.

In case of door opened, machine stop to protect user.

Low noise vacuum system with pollution free.

Washing down by water gun, we follow extremely water proof standard from Korea.


Technical Data


  • Pouch Type:Spout Bag, Zipper Bag, Pillow Bag, 3 Side Bag, 4 Side Bag
  • Working Station:8 Working-Station
  • Filling Range:5-1500g
  • Pouch Width:80-240mm(3.15”-7.87”)
  • Pouch Length:100-300mm(3.94”-11.8”)
  • Capacity:Up to 50 Bags/Min(Depends on products’ natures and filling weight)
  • Dosing System:Piston Filler
  • Power Supply:Per customer specification
  • Power Consumption: 3.5KW
  • Compressed Air:400 L/Min. Zip Function 580 L/Min.
  • Machine Dimension:2000x1200x1400mm (78.7'x47.2'x55.1')
  • Machine Weight:1850Kg
