Form-Fill-Seal

  • Rotary fill seal seal with multihead scales for granules Pre-Made Pouch Packaging Solutions
Rotary fill seal seal with multihead scales for granules Pre-Made Pouch Packaging Solutions

Rotary fill seal seal with multihead scales for granules Pre-Made Pouch Packaging Solutions

  • Model:GP-RB200C
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimension:1460*2500*1400mm
  • Product description: Rotary fill seal seal with multihead scales for granules Pre-Made Pouch Packaging Solutions
  • INQUIRY

Description:

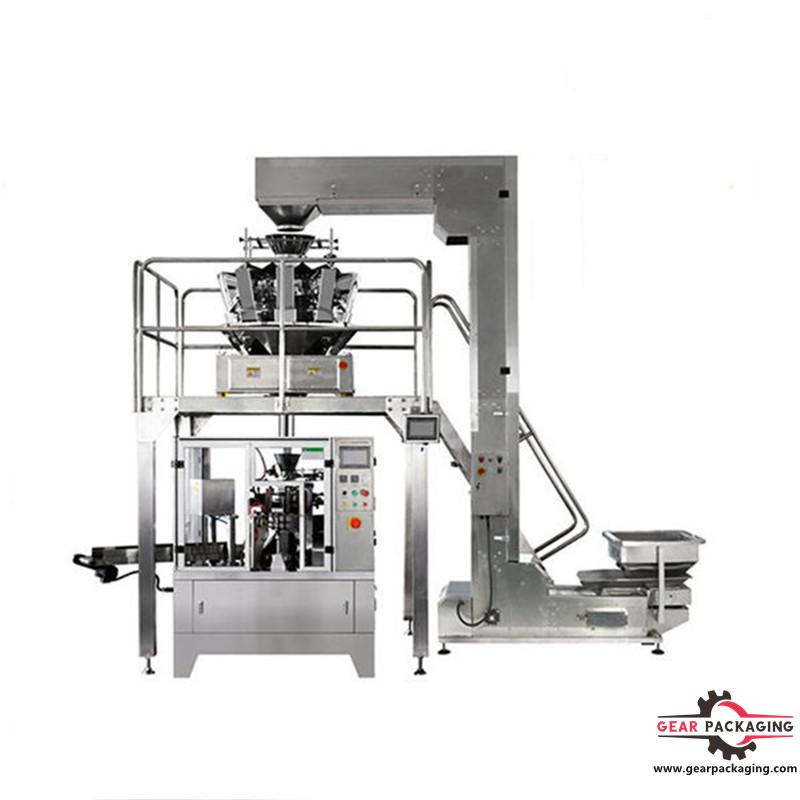

Rotary fill seal seal with multihead scales for granules Pre-Made Pouch Packaging Solutions


Applications


Equipped with Z-shape bucket elevator and combination scale, it is widely applied to candies, microwave popcorn, cookies, nuts, rice, coffee beans, crops, peanuts, etc.

8 work stations:

1) bag picking;

2) coding;

3) zip unit;

4) bag opening;

5) according to the material;

6) according to the material;

7) sealing and closing zip;

8) tidy to output;



Features


Easy To Operate:PLC control, man-machine interface.

Frequency Conversion Speed Regulation:Using frequency conversion adjustment device, the speed can be adjusted at will in the specified range.

Easy to adjust the clip width:Control by motor;Only by a button you can sync control 8 sets of clip.

The material level is all made of stainless steel 304 or food-degree plastic according with food hygienic requirement.

Open Zipper Mechanism:Design for zipper bag characteristics, high opening rate (invention patent) .



Technical Data


Model GP-RB200C GP-RB300C
Working Stations Number Eight
Pre-made Pouch Types Heat sealable premade side seal bags, like gusseted bag, flat bottom bags, zipper bags, stand-up bags, spout bags, etc.
Pre-made Pouch Size Width: 80 to 220mm (3.15” to 8.66”) Width: 180 to 300mm (7.09” to 11.81”)
Length: 100 to 300mm (3.94” to 11.81”) Length: 100 to 350mm (3.94” to 13.79”)
Capacity 35 to 40bpm (depending on product and pouches)
Filling Range 10 to 2500g (depending on the product)
Power Consumption 2.5kw 2.1kw
Air Consumption 0.6 m³/min (supplied by the user)
Outer Dimension 1460*2500*1400mm 2460*1835*1640mm



Our Services


1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on them.
2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.
3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.
4) File Services: We offer instruction manual and video to teach you how to using and testing machine.
5) Accessories: We supply spare parts with competitive price after warranty time.
