Form-Fill-Seal

  • Mini doypack packing machine premade pre-made pouch packing machine

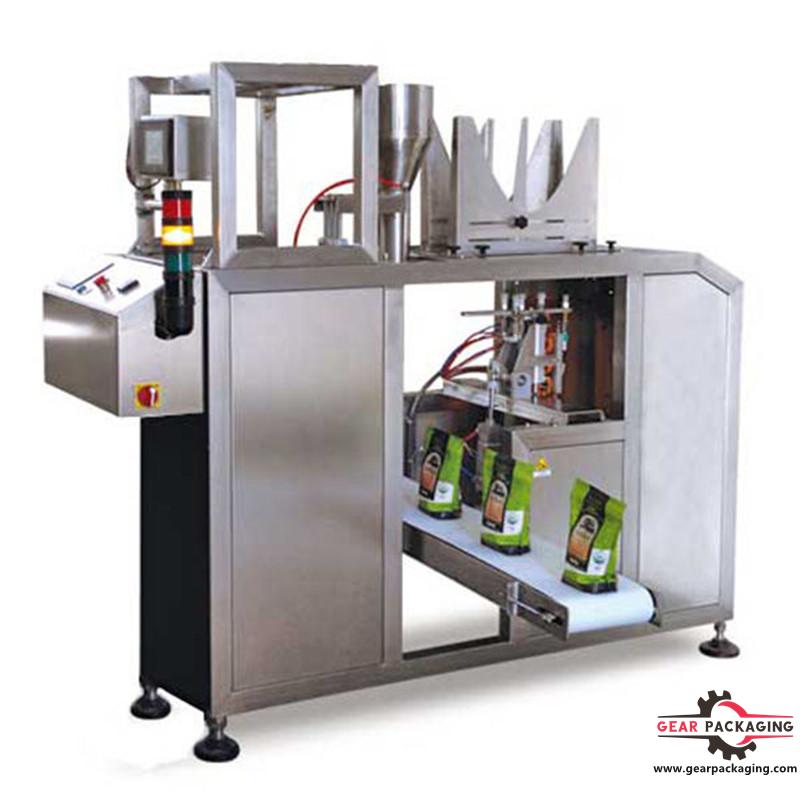

Mini doypack packing machine premade pre-made pouch packing machine

Mini doypack packing machine premade pre-made pouch packing machine

  • Model:GP-Z300
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Premade Pouch Size:120-300mm(W) *120-350mm(L)
  • Product description: Mini doypack packing machine premade pre-made pouch packing machine
  • INQUIRY

Description:

Mini doypack packing machine premade pre-made pouch packing machine


Applications


It is new-updated compact version pouch pick fill seal packing machine for various pre-made bags such as pillow bags, gusset bags, zipper bags etc. As a cost saving solution, it is ideal for a lot of application such as coffee, frozen foods, cookies, cereals, nuts, flower, candy etc. It can also be interfaced with other equipments for use with turnkey lines.



Features


New generation sanitary design & build

Easy clean and avoid trash accumulated.

Compact footprint & Low Maintenance

Compact single station, pneumatic system used for safety running & low maitenance.

Auto Operation Control

From pouch pick up- open - fill - seal to output which is controlled by PLC

7" User's friendly H.M.I. ensure high efficiency performance.

Easy to Adjust & Operate

Depending on product condition and pouch type, main menu settings can be set on the screen, multiple pouch type can run on the same machine by suction position adjusting.

No Pouch, No Dump

Auto pouch detecting sensor, no pouch no dump ensure material splash down.

Automatic breakdown detection and solution is displayed on the screen clearly.

Various option functions are available as per request, such as auto zip-lock open device/Hot Stamp Printer/ Hopper Shaker/ Product Settler.

Main Parts of Mini Doypack

PLC Control, Touch Screen, Temperature Control, Automatical Pneumatic Components, Gas Processor, Alarm.



Technical Data


Model GP-Z300
Premade Pouch Type standup premade pouch, resealable premade pouch, flat bottom premade pouch, 3 side seal pouch, zipper pouch, zip-lock pouch, top zip pouch, heat seal pouch
Premade Pouch Size 120-300mm(W) *120-350mm(L)
Speed Max  15 BPM
Power Supply 220V/50HZ or 60HZ Single Phase 1KW
Air Pressure 7.0 CFM@80 PSI
Operation Panel 7 inch user's friendly touch screen
Electronic: Mitsubishi PLC/ Omron Temperature Controller

Omron Power Switch / Schneider Breaker

Pneumatic: Pneumatics component Airtac from Taiwan;

PIAB Vacuum generator/SMC Vacuum Fliter

Options Auto Zipper open device, SMC Pneumatic Parts, Product Settler, Gasflush and vacuum function, Take Away Conveyors, Filling devices, Ribbon Stamp Printer
