Form-Fill-Seal

  • chemical powder vertical packing machine V.F.F.S. Bagger Complete Systems
chemical powder vertical packing machine V.F.F.S. Bagger Complete Systems

chemical powder vertical packing machine V.F.F.S. Bagger Complete Systems

  • GP-VP520
  • Type:Form Fill Seal
  • Packaging Type:Bags
  • Dimensions:(L)1550*(W)1160*(H)1480mm
  • Product description: chemical powder vertical packing machine V.F.F.S. Bagger Complete Systems
  • INQUIRY

Description:

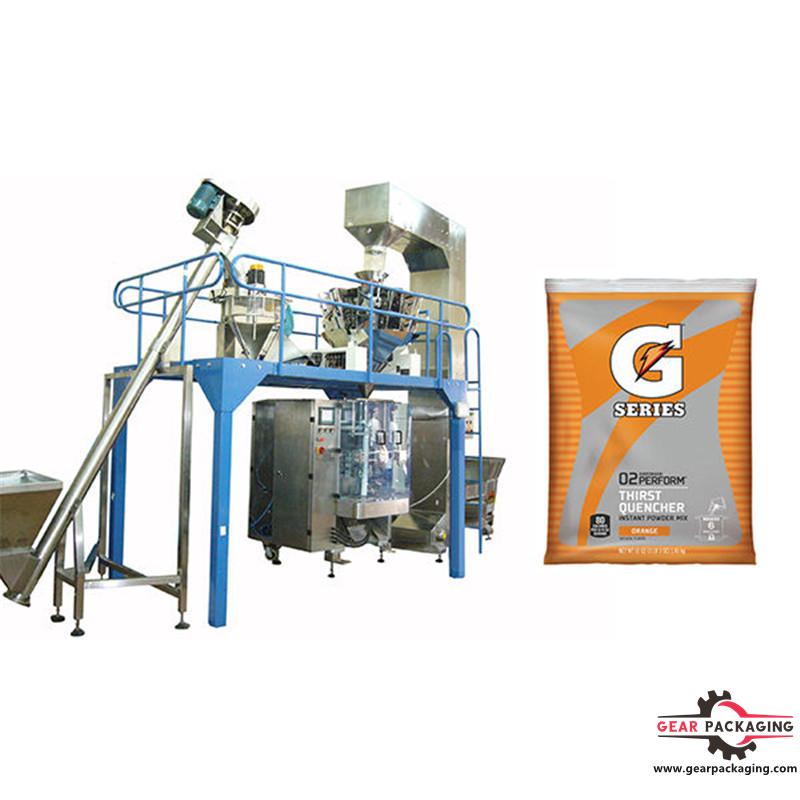

chemical powder vertical packing machine V.F.F.S. Bagger Complete Systems


Applications


Loose solid material, such as puffy food, shrimp roll, peanut, popcorn, cornmeal, seed, sugar and salt etc. which shape is roll, slice and granule..

Features


  • PLC controller with touch screen interface
  • Servo-driven end seal jaws
  • Servo-driven film transport
  • Hot printer and film feeding system synchronous
  • Quickly changing one-piece bag former
  • Eye mark sensor for film tracking
  • Stainless steel frame

Optional Device


Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.

Technical Specifications


Model GP-VP520 GP-VP620 GP-VP920
Bag Size (L)100-300mm

(W)80-240mm*

(L)100-380mm*

(W)100-300mm

(L) 50-380mm*

(W)110-400mm

Bag Speed 15- 60bags/min  15- 60bags/min  10-30bags/min
Film width 180-500mm 220-620mm 340-800mm
Air consumption 0.6Mps  0.36m3/min 0.6Mps  0.4m3/min 0.6Mps  0.7m3/min
Power supply 3.0kw, 220V 50/60HZ 4.0kw, 220V 50/60HZ 4.5kw, 220V 50/60HZ
Packed Dimensions (L)1550*(W)1160*(H)1480mm (L)1600*(W)1260*(H)1680mm (L)1600*(W)1500*(H)2050mm

Linear Scale Weigher


Ideally suited for slice, roll or regular shape products: sugar, salt, seed, rice,sesame, glutamate, milk powder, coffee and seasoning powder, etc.

Principal Feature:


Adopt high precision digital load cell
Color touch screen with Multilanguage control panel
Sanitation with 304S/S construction
The parts contacted products can be easily mounted without tools
Make mix different products weighing at one discharge
Adopt no-grade vibrating feeding system to make products flowing more fluently
Program can be freely adjusted according to production condition
Can be remote-controlled and maintained through internet
With Honor Pack experience in design and manufacture, the linear weigher can be modified to suit different purpose applications.

Application:


Free Flow Powders: Detergent, Sugar, Salt, Spices, Milk powder, various sorts of powders, etc.
Granules & Seeds: Coffee beans, Rice, Sesame Seeds, Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods, Confectionary, Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food.
Non Food: Fasteners, plumbing parts, plastic, etc.

Specification:


Model GP-2000-4H
Capacity 20-2000g
Hopper Volume 3000ml
Max. Speed 10-50(bags/min)
Weighing accuracy ±1-3g
Voltage 220v/50/60Hz/5A
Power 0.8KW
Control Panel 20
Max Mixing products 4
